DIY Sine Wave Generator Kit Simulation Skill Test 511 DIY Electronic Production Parts

Feature:

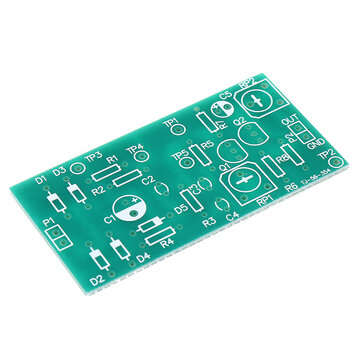

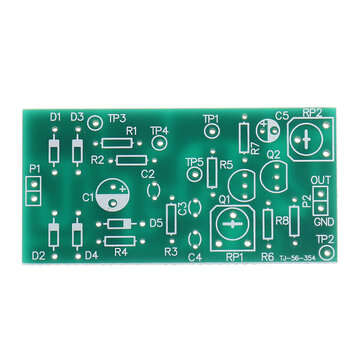

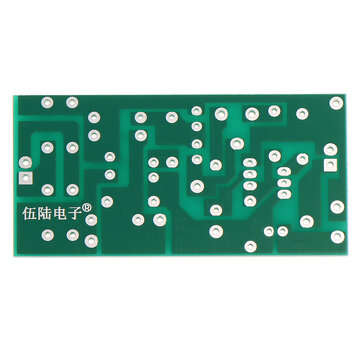

Board size: 55*28mm

Power supply voltage: AC12V

Note:

1) Before power on, check the circuit board to eliminate possible faults;

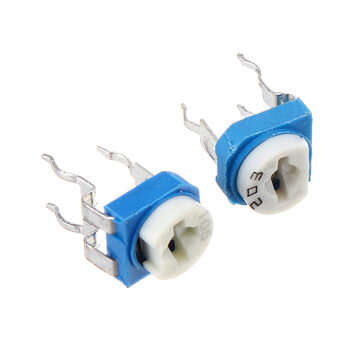

2) Function realization. When 12V AC is connected to JP1, monitor the waveform of TP1 with an oscilloscope, carefully adjust RP1, so that TP1 can just have a sine wave signal of amplitude. If the circuit cannot achieve the function, please carefully detect and debug the circuit to achieve Corresponding function;

3) Turn on the power, measure the static parameters according to the requirements of Table 1, and record the measurement results;

4) Measure the dynamic parameters of the circuit according to the requirements of Table 1, record the measurement results and draw the waveform diagram as required.

5) This is an unassembled kit, you need to solder it.

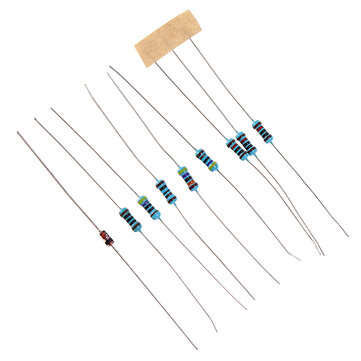

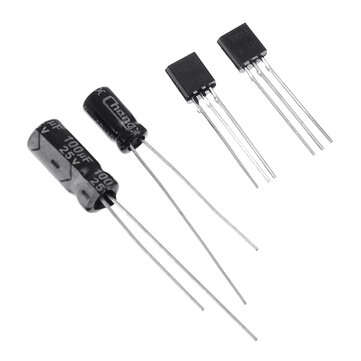

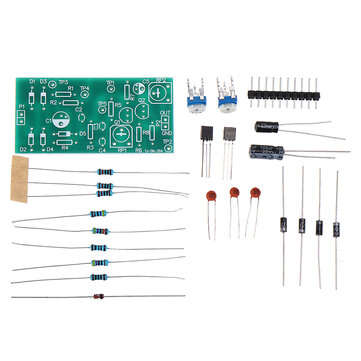

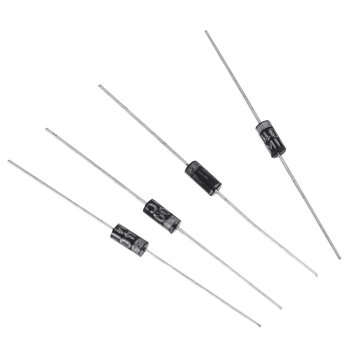

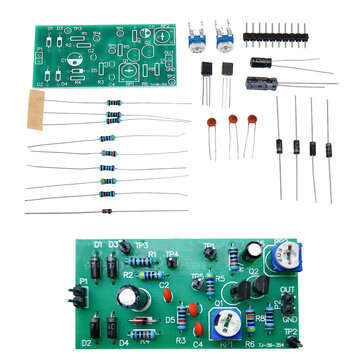

Package includes:

1 x DIY KIT
