DIY TEA5767 FM Digital Wireless Receiver Radio Kit - Build Your Own FM Receiver

TEA5767 FM Digital Wireless Receiver Radio Kit DIY Adjustable 87-108MHz 5W 8ohm Speaker 5V (10006448)

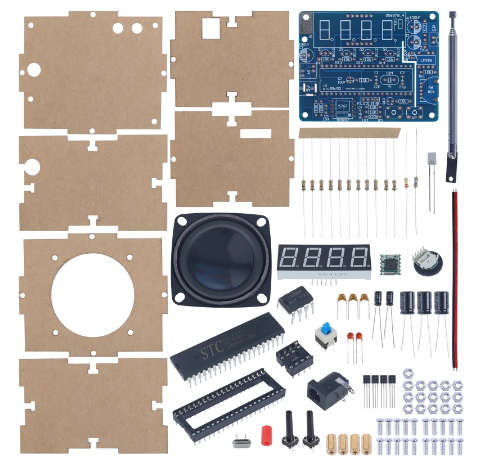

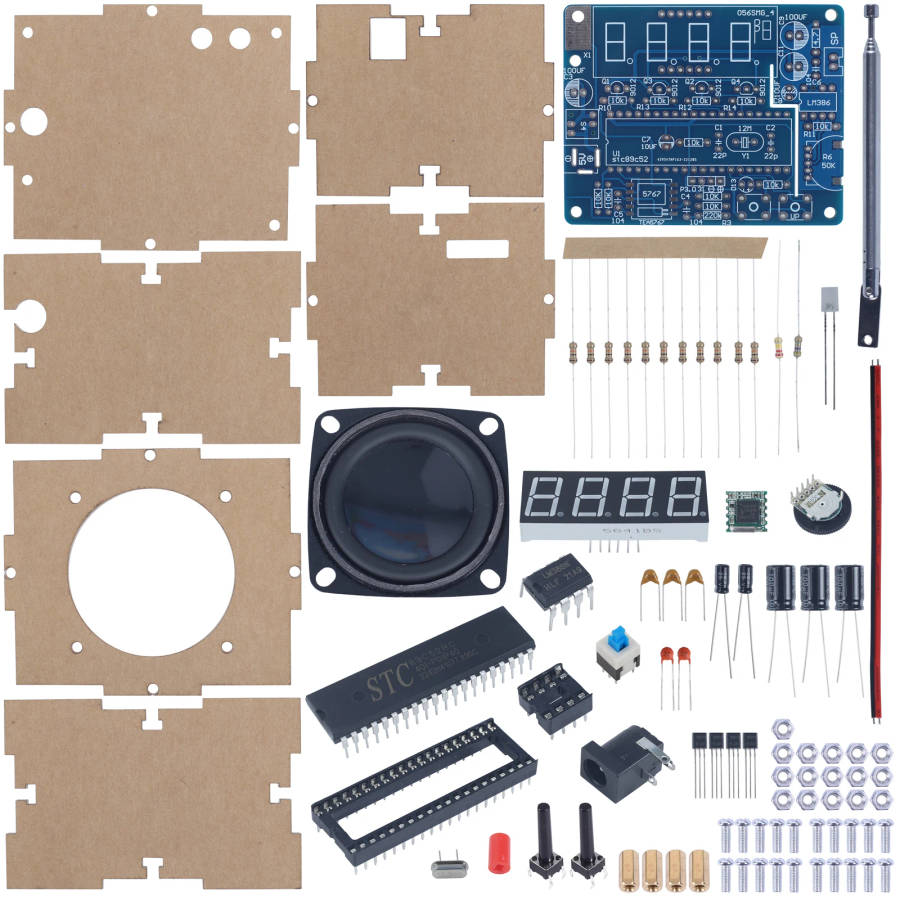

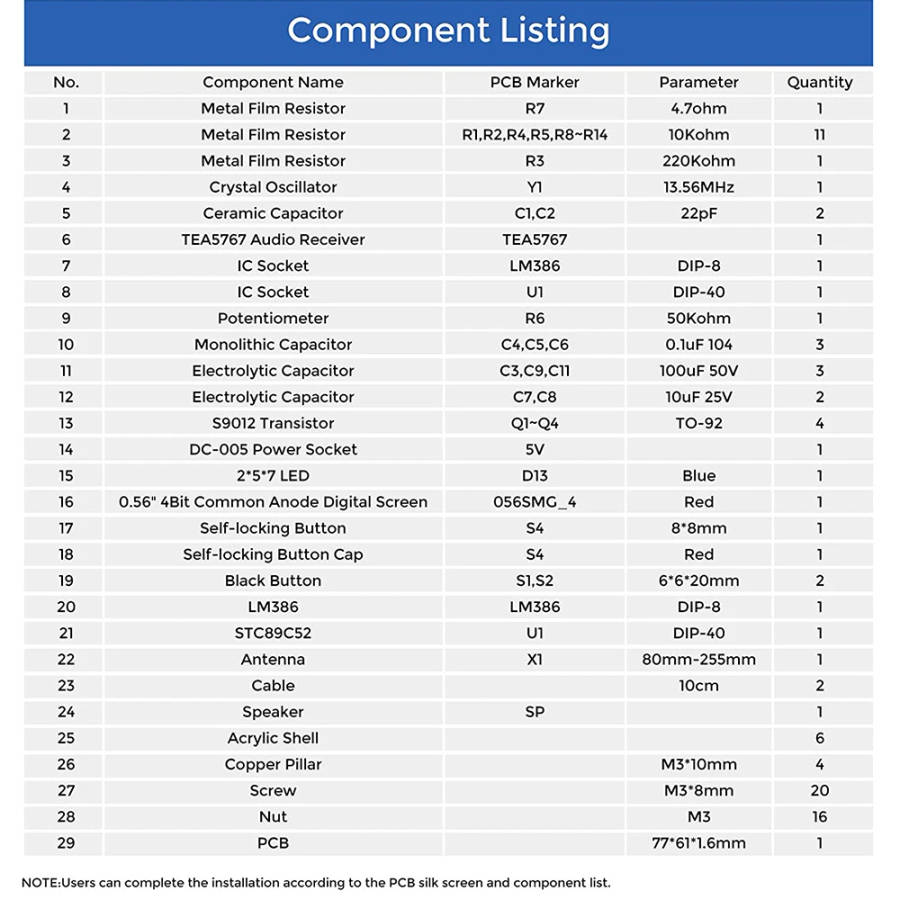

The DIY TEA5767 FM Digital Wireless Receiver Radio Kit is a versatile and convenient product that allows you to build your own FM radio receiver. With the TEA5767 chip, it provides excellent signal reception and high-quality sound. The kit includes all the necessary components, making it easy to assemble. The built-in digital tuning system allows you to scan for stations and store your favorite ones. The radio also features a bright LCD screen for displaying station information and a headphone jack for private listening. Whether you are a radio enthusiast or someone looking for a fun DIY project, this kit is perfect for you. TEA5767 FM Digital Radio Receiver DIY Kit 87-108MHz Frequency Modification LCD Display C51 MCU Controller Auto Search Station Introduction: It is an 87.0MHz-108.0MHz Wireless FM Radio Receiver DIY Kit.It has a built-in 4-Bit Red Digital Tube display screen which can clearly display the receiving frequency.

Feature: 1>.Automatically search for radio stations

2>.Built-in volume adjustment

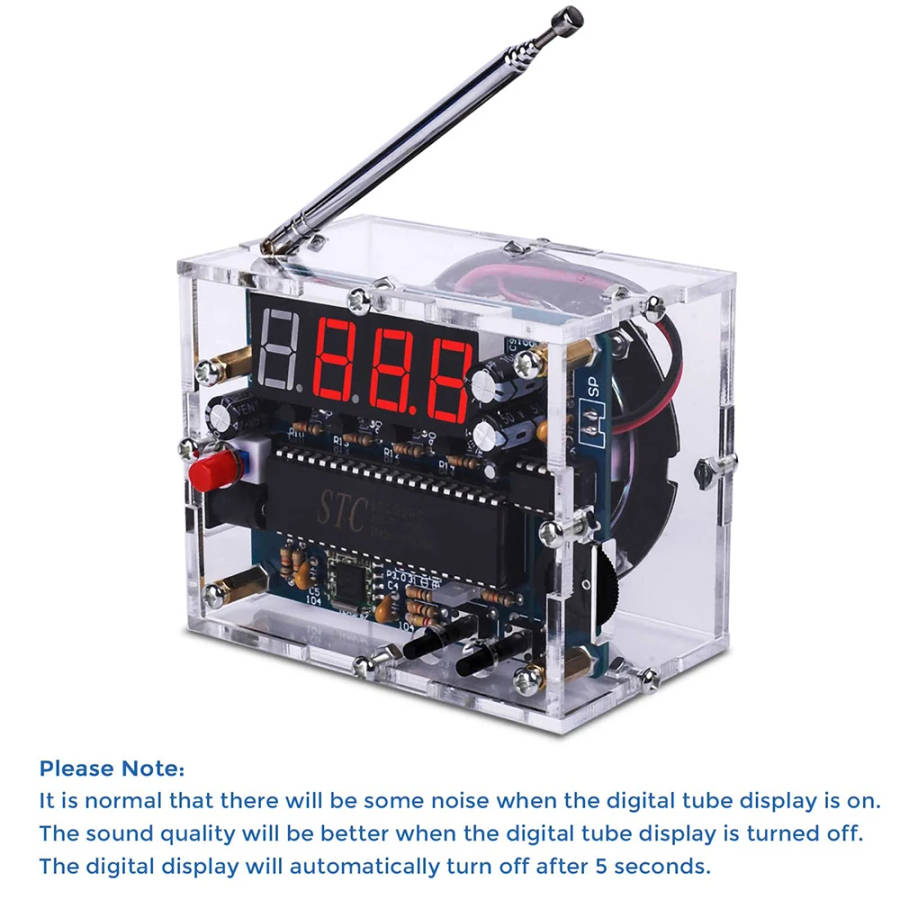

3>.Automatic memory function after power off 4>.Support 87Hz-108MHz receiver frequency 5>.Built-in 5W power amplifier 6>.Power saving mode with backlight off for 5 seconds

Parameter: 1>.Product Name:FM Radio Receiver DIY Kit 2>.Work Voltage:DC 4.5V~5.5V 3>.Output impedance:8ohm 4>.Output power:5W 5>.Output channel:Mono 6>.Receiver Frequency:87.0MHz~108.0MHz 7>.Frequency accuracy:0.1MHz 8>.Equivalent noise: >=30dB 9>.Work Temperature:-40~85 10>.Work Humidity:5%~95%RH 11>.Size(Installed):83*69*53mm

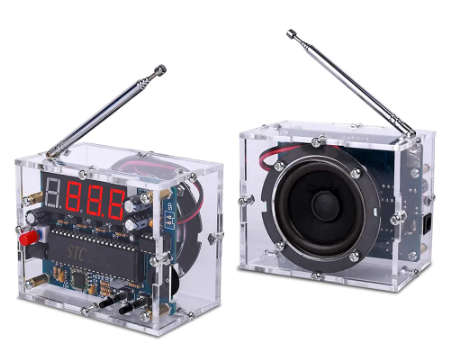

Installation steps of the shell: 1. Lock on the board with 4 M3*8 screws 2. Lock a 10MM copper post on each of the 4 screws in step 1 3. The front acrylic plate of the shell is fixed on the copper column 4. Install the left acrylic plate 5. Install the acrylic sheet on the other 3 sides 6. Use 4 M3*10 screws to lock the speaker to the acrylic plate on the back of the case 7. Finally, install the back panel on it.

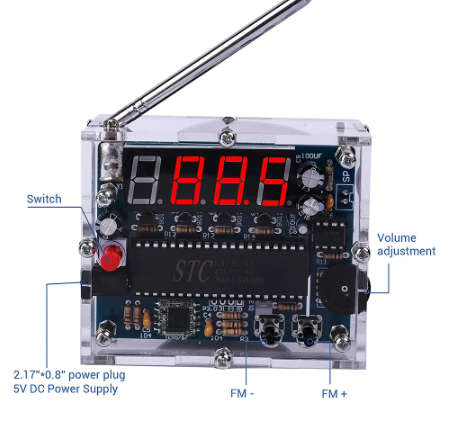

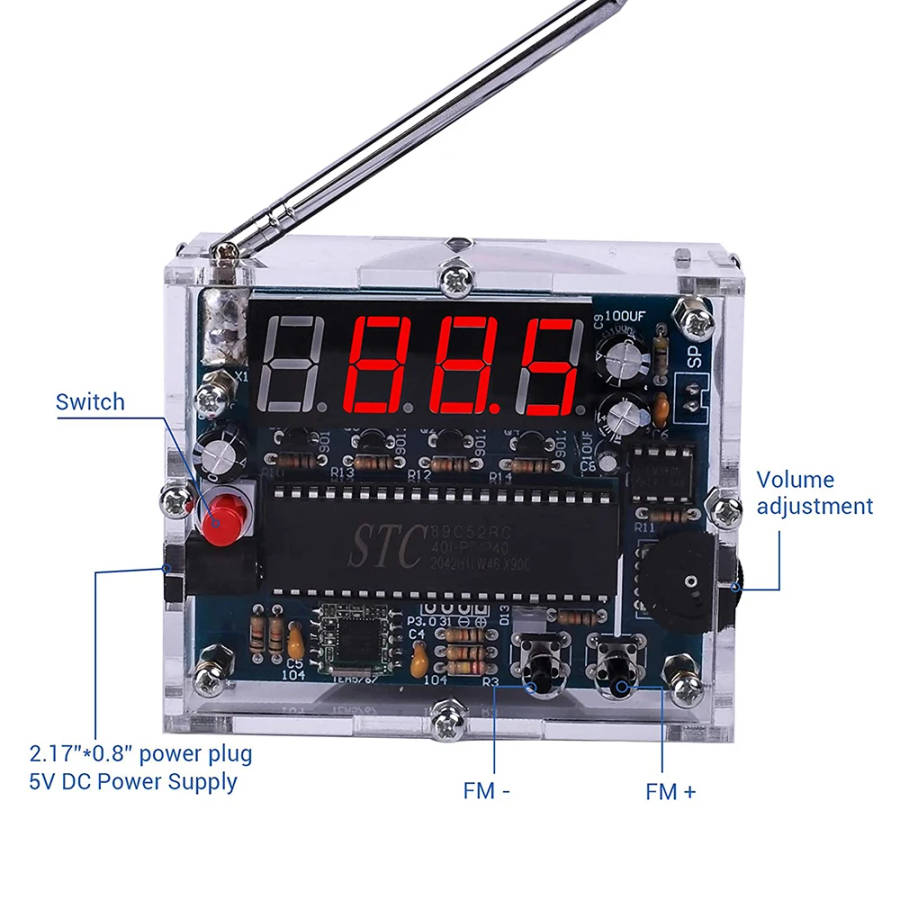

Use Methods: 1>.Press left button to decrease receiving frequency. 2>.Press right button to decrease receiving frequency. 3>.Rotate potentiometer to adjust the volume.

• Supply Voltage

  DC 4.5V~5.5V






• Work Voltage

  DC 4.5V~5.5V
  Output impedance

  8ohm
• Output power

  5W
  Output channel

  Mono
• Receiver Frequency

  87.0MHz~108.0MHz
  Frequency accuracy

  0.1MHz
• Equivalent noise

  >=30dB
  Size(Installed)

  83*69*53mm
