Package weight: 0.36 kgNote:
1. This product does not includes housing!! if you need the housing, please purchased separately (Product ID: ).
2. This is a DIY kit, you need to have some knowledge of electronics and ability.
3. Need a lot of soldering, you should have enough patience.
4. 8x8x8 blue lights display version
5. APP function only supports Android system
Feature:
The backplane consists of a circuit board and component parts, which require their own soldering.
512 pcs blue LED lights form a square three-dimensional space.
With expand wifi module, cell phone wireless connection the cube, exclusive APP control operation. (Viewing better at night).
Specification:
Input voltage: 5V
Current: 1A-2A (2A effect is better, because the LED driver chip APM4953)
Power: 5V phone charger power supply
Circuit board material 1.6 mm RF-4 plate

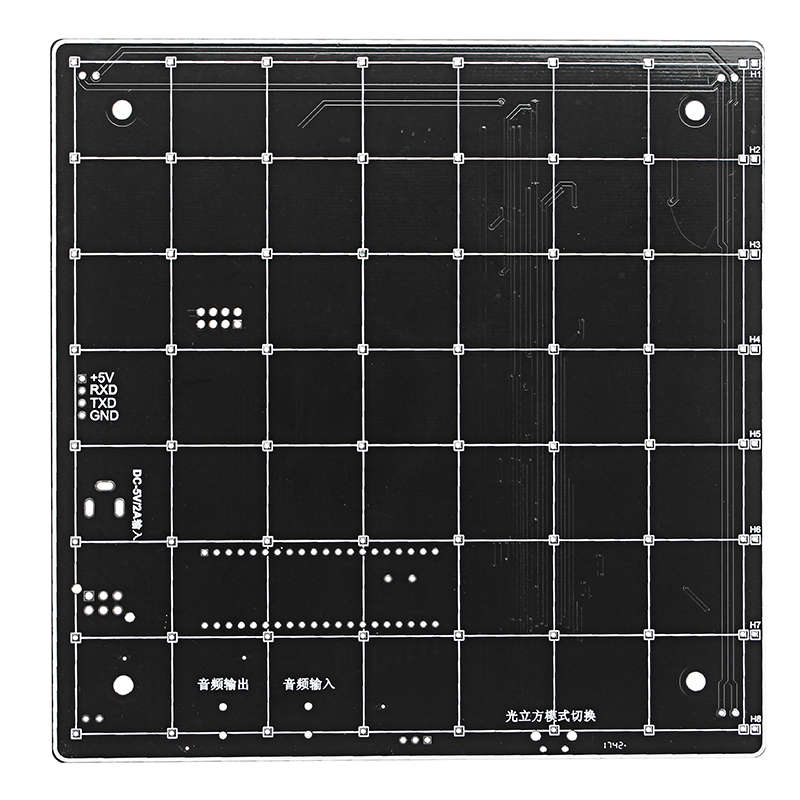

PCB board size: 150 x 150mm
APP version functions: (support for Android only)
1. Through the audio cable input and output music.
2. Built-in 45 kinds of offline cool animation (power to run the animation)
3. Built-in 15 kinds of offline dynamic audio animation (with music dancing)
4. 3 D8 PC mode (control animation, which can control lights display)
5. 3 D8 PC music mode
6. Infrared remote control (long distance remote control)
7. PWM breathing light mode
8. Boot motherboard test mode
9. 15 level animation speed adjustment
10. Brightness adjustment of 10 level
11. Change word by the phone (32 patterns, 45 letters)
12. Mobile PC
After the phone connected to the product wifi, you can use the exclusive APP (light cube APP) software to operate. The wifi module has been carefully PCB design and debugging, straight line transmission distance up to 10-20 meters.Circuit design:
IAP12C5A60S2 + 74HC595 + APM4953 + WIFI + Infrared remote control
1. Integrated IAP12C5A60S2 high speed 1T microcontroller
2. 5A high current MOS tube driver chip (to solve the uneven brightness)
3. High speed scanning chip and serial control cascade chip
4. Use WIFI APP Android software control
5. Infrared remote control (Easy to control)
Package Includes:

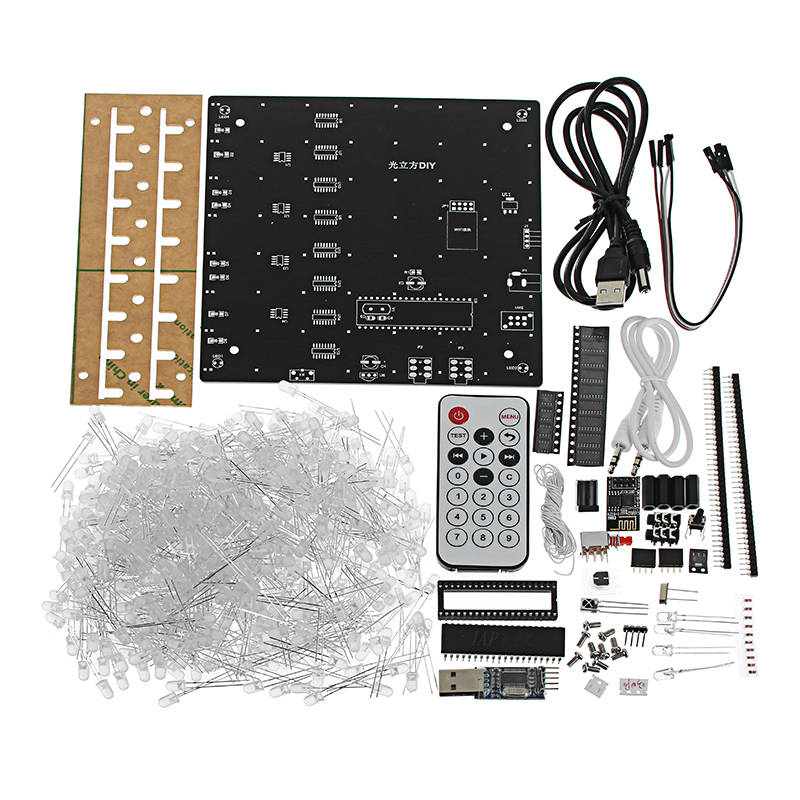

1 x Blue LED 3D Light Cube Kit

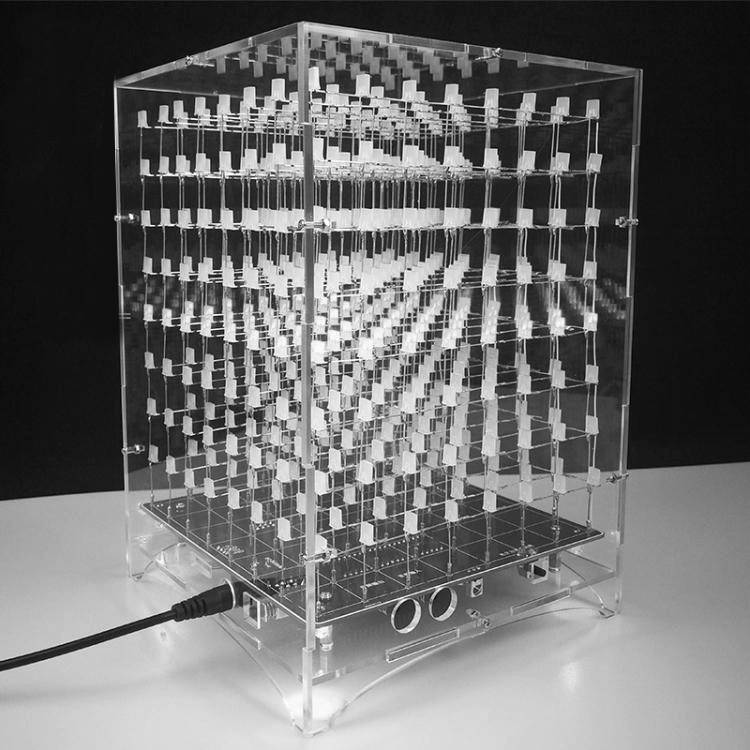

Note: The housing is for reference only, package does not includes!
