DJ Mixing Equipment (Phonic MRT60 & Gemini PMX-20 mixers)

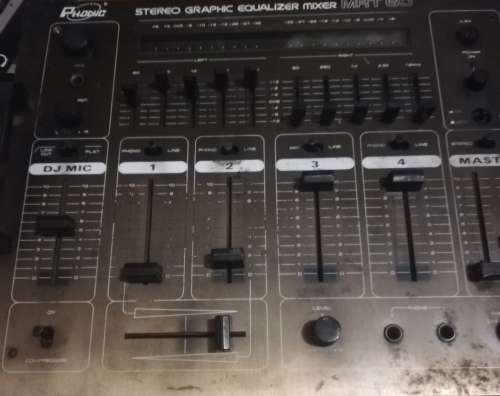

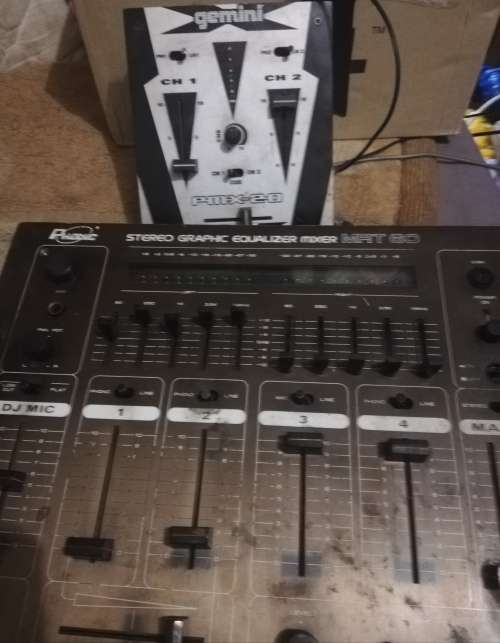

Phonic Stereo Graphic Equalizer Mixer MRT 60 & Gemini PMX-20  mixer.

Equipment last used in March 2020

Equipment switches on

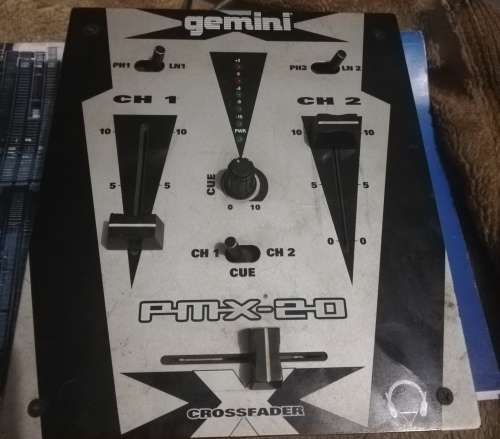

Gemini PMX-20 Mixer. This item is in condition fantastic as well.

The Gemini PMX-20 is a stereo 2-channel (phono/line switchable) mixer with a cue section and level control.

The channel level slide allows you to fully adjust the level of the selected source.

The PHONO/LINE switch allows you to select the Line or Phono input to play through the corresponding channel.

The crossfader allows the mixing of one source into another. The left side is channel 1 and the right side is channel 2.

By connecting headphones to the headphone jack, you can monitor either channel 1 or channel 2.

Specifications: Phono Inputs (2 pair) - 3mV 47k Ohm Line Inputs (2 pair) - 150 mV 27k Ohm Master Outputs (1 pair) - 0 dB 1V 400 Ohm with maximum 10V Frequency Response - 20 Hz - 20 kHz +/- 2 dB Distortion - 0.02% S/N Ratio - better than 80 dB Headphone Impedance - 16 Ohm Power Source - 115V/15V AC 7.5 W or 230V/15V AC 7. 5W Dimensions - 6.5” x 7.5” x 2” (165 x 192 x 53 mm)
