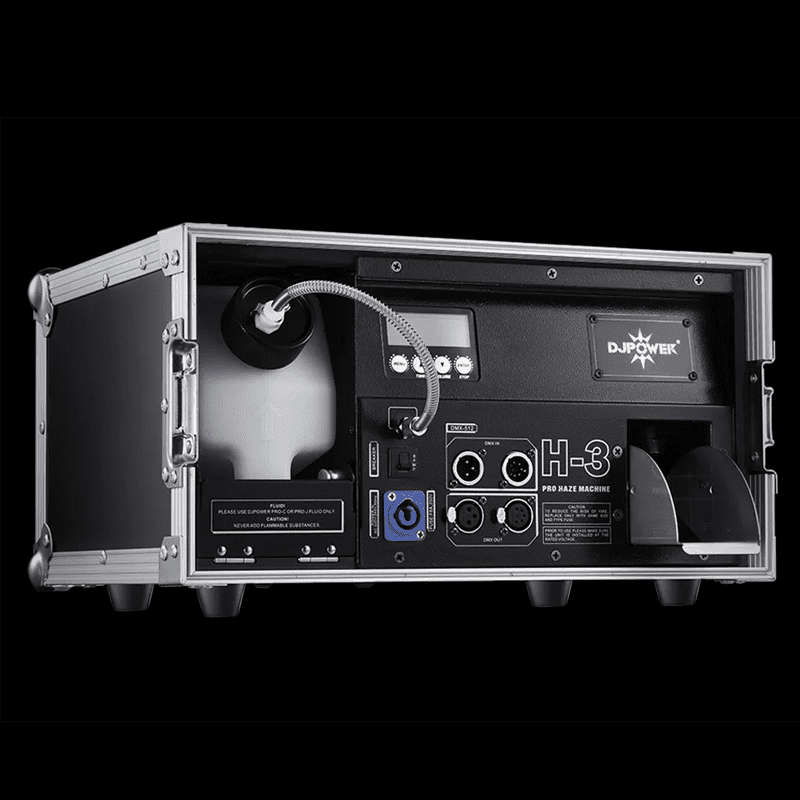

DJPOWER H-3 PRO HAZE MACHINE 1100W

H-3 is a top of the range water-based haze machine designed for the highly demanding professional market.  It comes pre-built-in aluminum alloy flight case and can be stacked one on another. Robust yet compact size and lightweight, its ability to produce exceptionally fine atmospheric haze in a short period of time while operating at low noise levels makes it an ideal choice for rental houses, high-end bars, small shows, theaters and more.

AC POWER
Input Voltage & Rate: 220-240 V, 50/60 Hz

Current Limiter Type: Breaker

Current Limiter Specifications: 8 A, 250 V

Total Power Consumption: 1,100 W

Operating Current: 4.8 A

Power Input Connector: Lockable PowerCon

HEATING
Heat Up Time: Appr. 50 s

Heater Type: Fast Coil Heater

CAPACITY
Fluid Tank Capacity: 3.5L/0.92 Gal.

OUTPUT
Adjustable Volume:

Volume Adjustment Level/Range: 1-100%

Max Output Volume: Appr. 12,000 cuft/min

Max Coverage: Appr. 225 5 min

Fluid Consumption @ full volume : Appr. 83 min/L

Maximum Continuous Duration @ full volume: Unlimited

Continuous Output:

Max Continuous Output Level: 100%

Fully-loaded Cumulative Output Duration @ full volume: Appr. 291 min

Consumable Type for Standard Output Test: PRO-C/PRO-J

FEATURES
Physical Thermostat:

Electronic Thermo-Control:

Adjustable Output:

Adjustable Fan Speed:

No-Fluid Protection:

CONTROL
On-device Manual Control: LCD control board

Wireless Control: ×

Wired Control: ×

Control Protocol: DMX-512

DMX Channel Range: 2

Data Connectors: 3-pin and 5-pin XLR

ACCESSORY
Flight Case:

Power Cord:

Wireless Controller Model: ×

Wired Controller Model: ×

CONSUMABLE
Consumable: PRO-C or PRO-J Haze Fluid

WEIGHT & DIMENSIONS
Net Weight: 13.5 kg

Gross Weight: 15.1 kg

Machine Dimensions: 427 × 393 × 238 mm

Packing Dimensions: 515 × 475 × 330 mm
