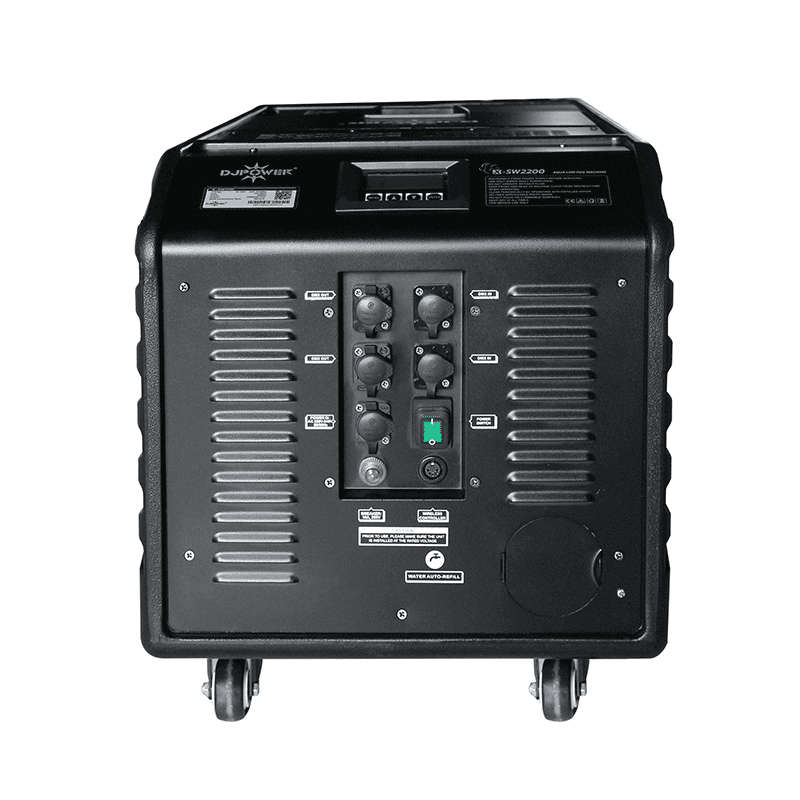

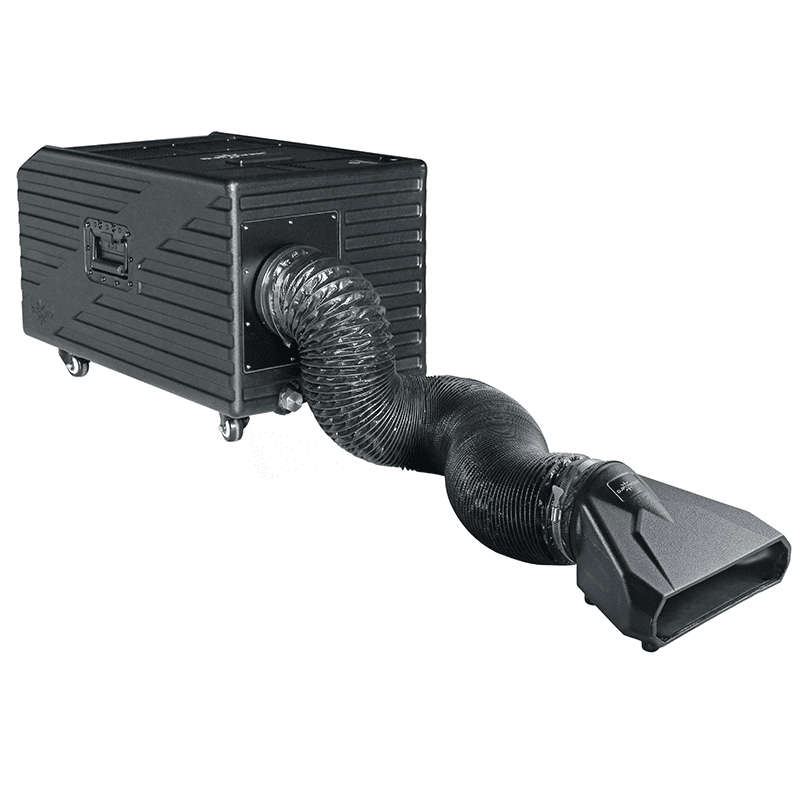

Similar with world's first monocoque frame aqua low fog machine H-SW3000, X-SW2200 creates a continuous low-lying fog hugs the floor and dissipates without rising. By using the Ultrasonic technology, needs for dry ice is eliminated. Main consumables are pure water, environment friendly, cost saving and space saving. Enhanced material, lighter than similar models, portable and durable. User-friendly LCD display and operation, it is perfect for large clubs, large stage productions, rental companies and production release conference.
AC POWER
Input Voltage & Rate: 220-240 V, 50/60 Hz
Current Limiter Type: Breaker
Current Limiter Specifications: 10 A, 250 V
Total Power Consumption: 2,000 W
Operating Current: 10 A
Power Input Connector: Lockable PowerCon IP65
Power Output Connector (Daisy Chained): Lockable PowerCon IP65
HEATING
Heat Up Time: Appr. 4~5 min
Heater Type: Aluminum Heater Block
CAPACITY
Fluid Tank Capacity: 3 L
Water Chamber Capacity : 22 L
OUTPUT
Adjustable Volume:
Volume Adjustment Level/Range: 1-100%
Max Output Volume: Appr. 15,000 cuft/min
Max Coverage: Appr. 300
Fluid Consumption @ full volume: Appr. 29 min/L
Water Consumption @ full volume: Appr. 8.9 min/L
Continuous Output:
Max Continuous Output Level: 1
Fully-loaded Cumulative Output Duration @ full volume: Appr. 100 min
FEATURES
Physical Thermostat:
Electronic Thermo-Control:
Adjustable Output:
Adjustable Fan Speed:
No-Fluid Protection:
CONTROL
On-device Manual Control: LCD control board
Wireless Control:
Control Protocol: DMX-512
DMX Channel Range: 3
Data Connectors: 3-pin and 5-pin XLR
ACCESSORY
Diversion Hose: 3 m, 125mm (5 inch)
Diversion Nozzle: 125mm (5 inch)
Flight Case:
Power Cord:
Wireless Controller Model: W-2
CONSUMABLE
Consumable: PRO-SW/PRO-A/PRO-C/PRO-V and Water
WEIGHT & DIMENSIONS
Net Weight: 32 kg
Gross Weight: 36.9 kg
Machine Dimensions: 759 × 390 × 444 mm
Packing Dimensions: 860 × 460 × 510 mm
