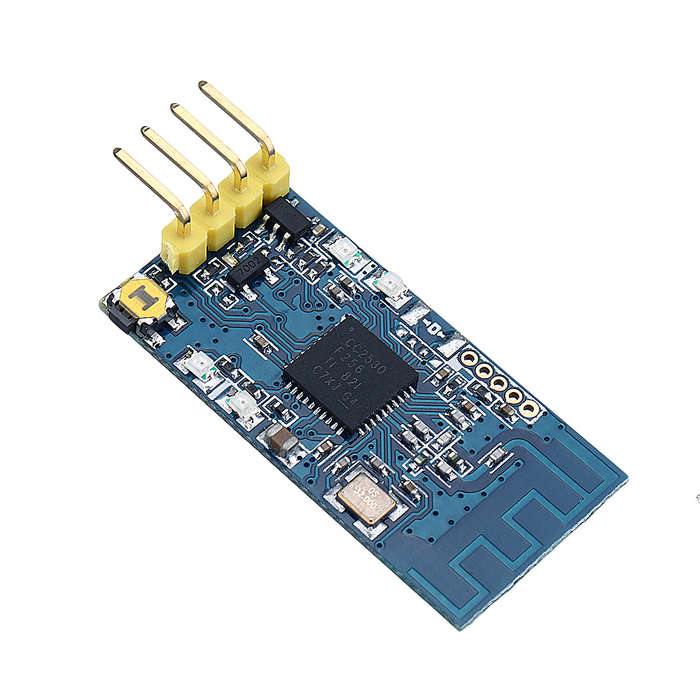

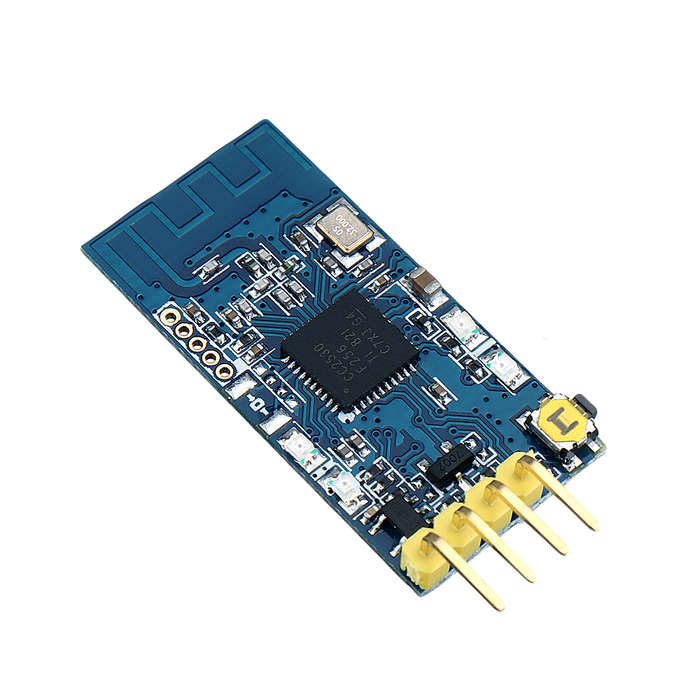

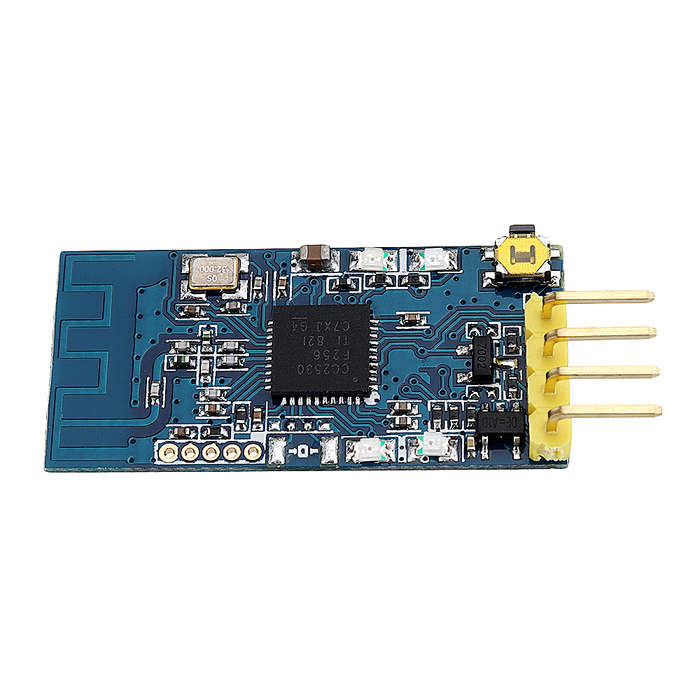

DL-20 CC2530 Wireless Transmission Serial Port Module 2.4G Wireless Transmitting and Receiving

New

20 available

R505.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou4038

92.34 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

654097149

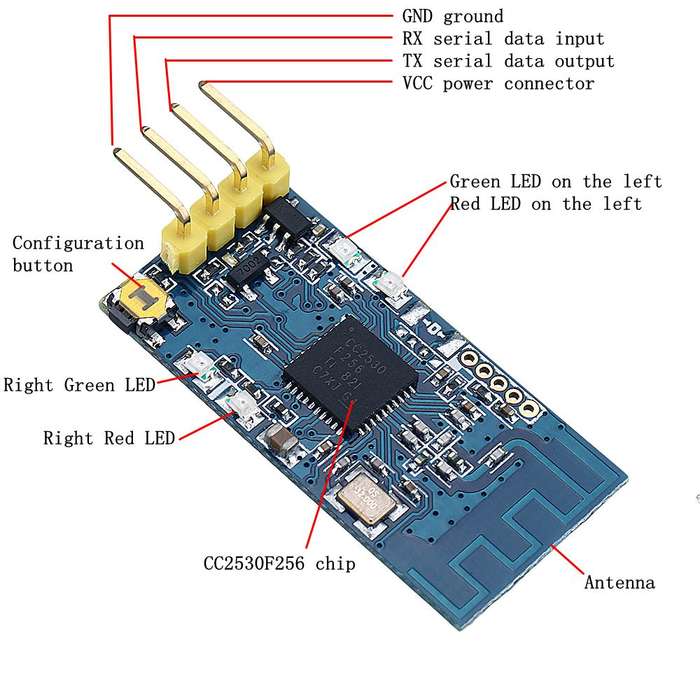

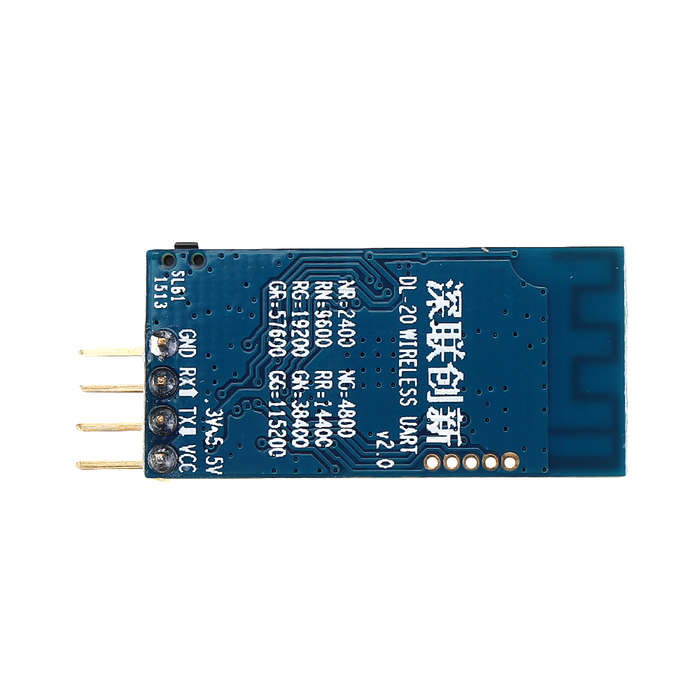

Feature: Default setting: baud rate 9600, point to point Wiring sequence: Rx is connected to Tx, Tx is connected to Rx Voltage range: 3.0V~5.5V, TTL level adaptive Button configuration: Use the onboard buttons to set up, you can modify the channel, baud rate and working mode of the module.

Project name	Numerical value
Product number	DL-20

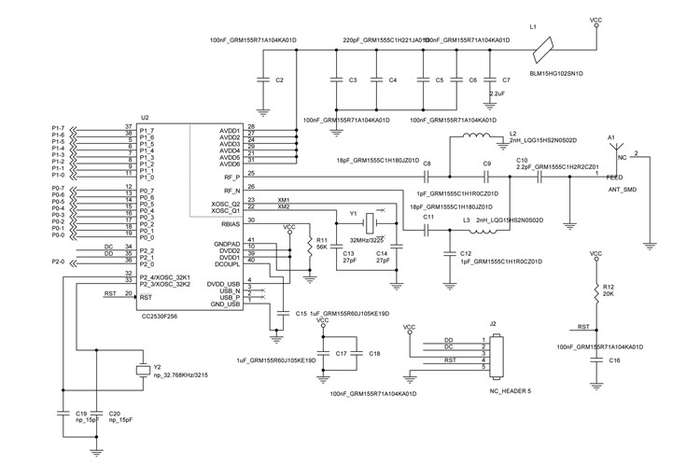

Chip selection	CC2530F256RHAR
working frequency	2400~2450MHz
Transmit power	4. 5dBm
Transmission rate	Up to 3300Bps
Transmission distance	250 meters (outdoor unobstructed environment test)
Operating Voltage	3. 0V~5. 5V
Working current	Less than 30mA
Support working mode	Peer-to-peer working mode, broadcast working mode
Communication Interface	UART serial port (supports 8 baud rates)
Working channel	2400/4800/9600/14400/19200/38400/57600/115200)
Receive spiritual respect	16 channel divisions in accordance with the IEEE 802.15. 4 protocol
Point-to-point bit error rate	-97dBm
Broadcast bit error rate	0. 00%
Antenna interface	0. 50%
Operating temperature	Built-in PCB antenna

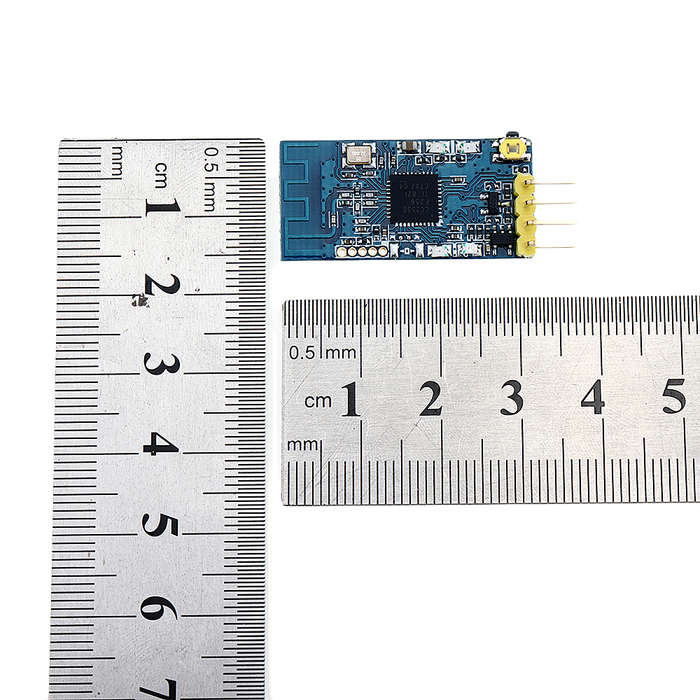

Size	-40 C~80 C
