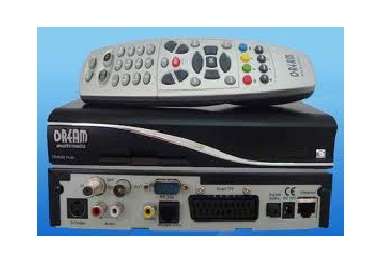

Dreambox DM600 S PVR (for Satellite)
DM600PVR comes with an upgraded processor apotelontas new proposal Dream Multimedia, offering a wealth of features and while holding the advantage of the smallest digital tuner with PVR functionality.
# General Features: 250 MHz PowerPC Processor (350 Mips), Linux OS, 1 x Smartcard-Reader, MPEG2 Hardware decoding, supported standards (DVB-S, DVB-C, DVB-T), Tuner modules, Plug & Play, V. 24/RS232 Interface, 10/100Mbit compatible Ethernet Interface, 2 LED status, 32 MByte Flash (96 MByte Ram total), integrated IDE Interface, Support for HDD 2,5 "in any capacity unlimited channel lists for TV / Radio, rotation time channel <1 second, full automatic service scan, support EPG (electronic program guide), support multiple LNB-Switching control (DiSEqC), S / PDIF Interface for digital bit stream out (AC-3), 1 x Scart, S-Video connector, analoge modem.
# DBS-Tuner: Frequency Range 950 ~ 2150 MHz, Signal Level 65 ~ 25 dBm, Signal-to-Noise Level 12 dB max, DBS-Tuner Input Connector F-Type female, Input Impedance 75 Ohm, AFC + / - 3 MHz , Demodulation Shaped QPSK, FEC Viterbi and Reed-Solomon, Viterbirate 1 / 2, 2 / 3, 3 / 4, 5 / 6, 7 / 8, Roll-off Factor 35%.
# Video decoder: Video Compression MPEG-2 and MPEG-1 compatible, Video Standard PAL G / 25 Hz, Video Formats 4:3 / 16:9, Letterbox for 4:3 device.
# Audio decoder: Audiocompression MPEG-1 & MPEG-2 Layer I and II, Audio Mode Dual (main / sub) Stereo, Frequency: 32 kHz, 44.1 kHz, 48 kHz, 16 kHz, 22.05 kHz, 24 kHz.
# Output analog: Output Level L / R 0,5 Vss on 600 Ohm, THD> 60 dB (1 kHz), Crosstalk <-65 dB.
# Output digital: Output Level 0,5 Vss on 75 Ohm, Sampled Data Filtering (32 kHz, 44.1 kHz, 48 kHz), S / PDIF-Output optical (AC3).
# Video parameter: Input Level FBAS 1 Vss + / - 0.3 dB on 75 Ohm, Teletext filter in conformity with ETS 300 472 Standard.
# TV-Scart: Output: FBAS, RGB, S-Video.
# Serial Interface: Type RS232, Bitrate 115,2 kBit / s max, Plug Connector SUB-D-9.
# Ethernet: 10/100 MBit compatible interface.
# IDE Interface: Support 2,5 "HDD.
# Power Consumption: <15W / 12V.
# Input voltage: DC12V + / - 15%.
# External power supply: Input: 110-240V AC / 50-60Hz / 0,6 A, Output: 12V = / 2A.
# Dimensions: 195 mm x 130 mm x 40 mm (W x D x H).
# Weight: 0,6 kg.
No HD included
