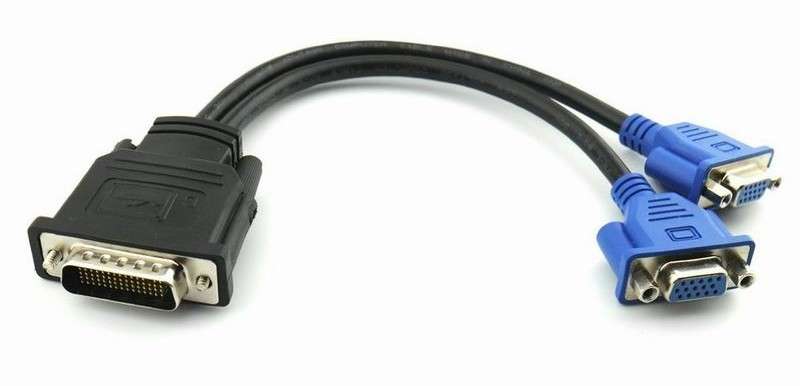

DMS 59-Pin to 2x VGA Splitter Cable

DMS-59 (Dual Monitor Solution, 59 pins) is generally used for computer video cards. It provides two DVI or VGA outputs in a single connector. An adapter cable is needed for conversion from DMS-59 (digital) to DVI (digital) or VGA (analog), and different types of adapter cables exist. The connector is four pins high and 15 pins wide, with a single pin missing from the bottom row, in a D-shaped shell, with thumbscrews.

The DMS-59 connector is derived from the Molex Low Force Helix connector, which could be found in some earlier graphics cards. These ports are similar to DMS-59, but have all 60 pins present, whereas DMS-59 has one pin (pin 58) blocked. A connector plug with all 60 pins (such as a Molex 88766-7610 DVI-I splitter) does not fit into a properly keyed DMS-59 socket.
