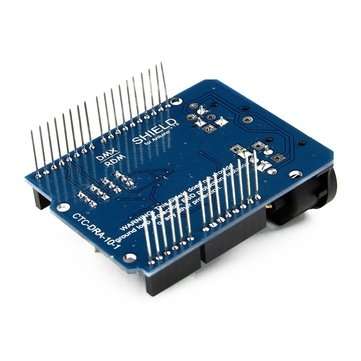

DMX Shield MAX485 Chipset Development Board

Feature:

The DMX-shield is an add-on (or shield) for the . It is an easy way to use the as a DMX-Master device, just by adding the DMX-shield on the top of the .

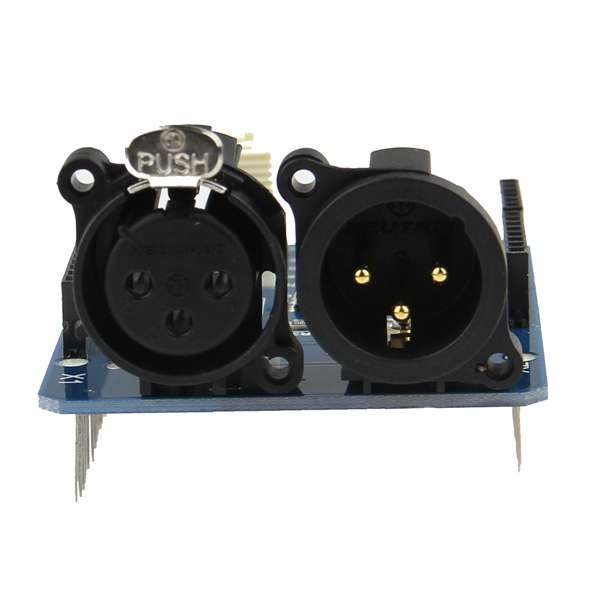

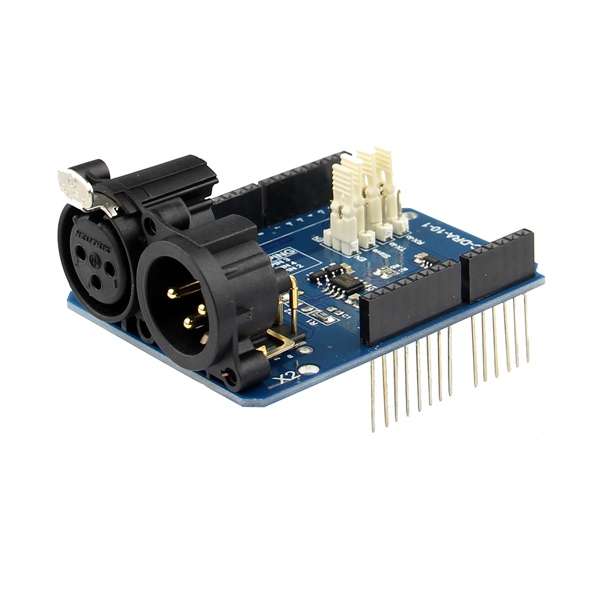

This DMX / RDM Shield is a low cost high quality solution that allows you to connect your driven artwork into DMX512 networks. The shield is populated with high quality NEUTRIK XLR 3pin Connectors (1x male and 1x female). The MAX485 based shield can be used as DMX Master, Slave and as RDM transponder.A unique RDM device id will be handed out from out range to you as well, this will make your device worldwide unique.

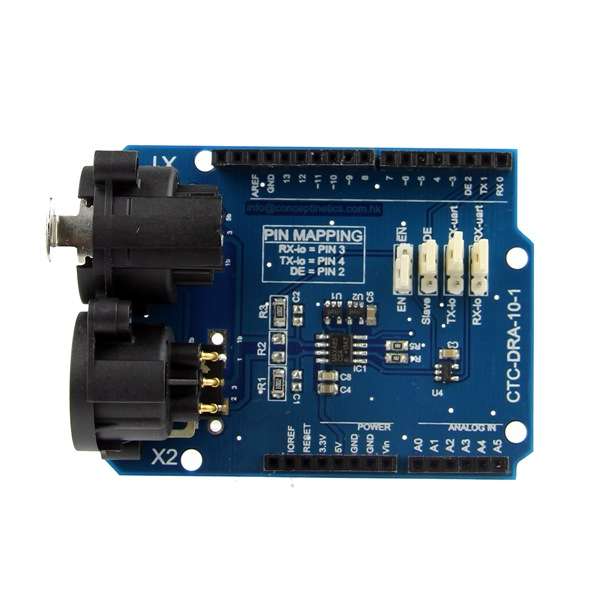

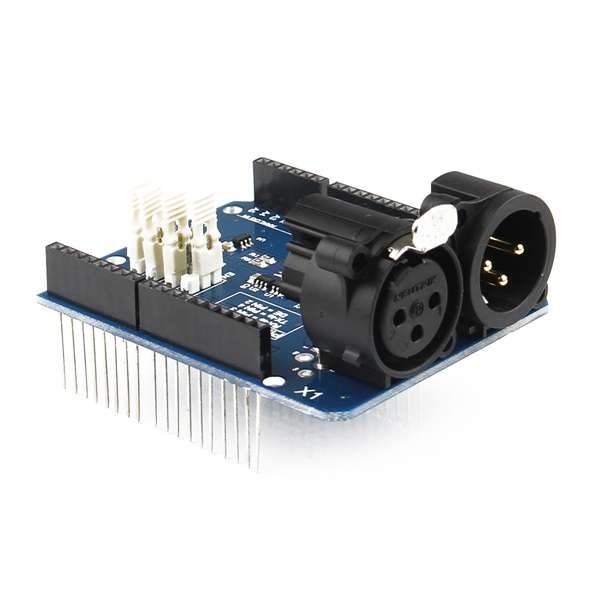

The following settings are configurable via the onboard jumpers:

1. Send data via TX or Digital pin 4
2. Receive data via RX or Digital pin 3
3. Hardware slave mode or Software Controlled Slave/Master via Digital pin 2 (Required for RDM)
4. Enable / Disable shield
you have the shield configured to use the RX and TX pins you have to disable the shield before you can upload your new sketch onto the board. This jumper allows you to disable the shield without disconnecting it from the board which saves time.

Specification:

1. Remote Device Management
2. DMX Master
3. DMX Slave
More details please refer to download link


Package included:

1 x DMX shield
