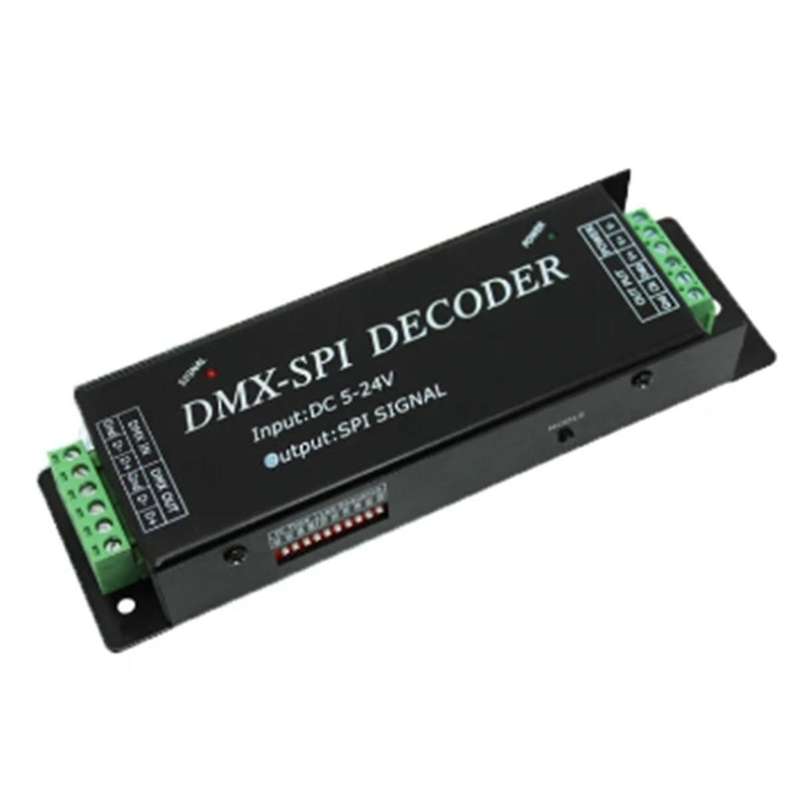

DMX200 SPI Signal LED Controller DMX to Decoder for 2801 6803 2812 2811 Strip Light Tape DC5V 12V 24

The DMX-SPI decoder adopts the advanced mini control unit, it receives standard DMX-512 digital control signal that is widely used in the and transformes it into SPI signal to drive LED, it supports 10 kinds of different model of lights, at the same time the port of DMX signal has -Pattern protection measures;you could connect the DMX decoder with DMX digital console to achieve dimming or various changes in procedures. Not connected with DMX console, you can choose select the built-in 35 kinds of default patterns through the modle button, the default points is 1024.Technical Parameters: ControllerModel: DMX200Working temperature: -20-60 degreeInput voltage: DC5-24VOutput: SPI signal (DATA, CLK)Max output: 480WMaterial: Metalcolour: BlackPackage Contents: 1 x LED ControllerOnly the above package content, other products are not included.Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +\/- 1-3cm.
