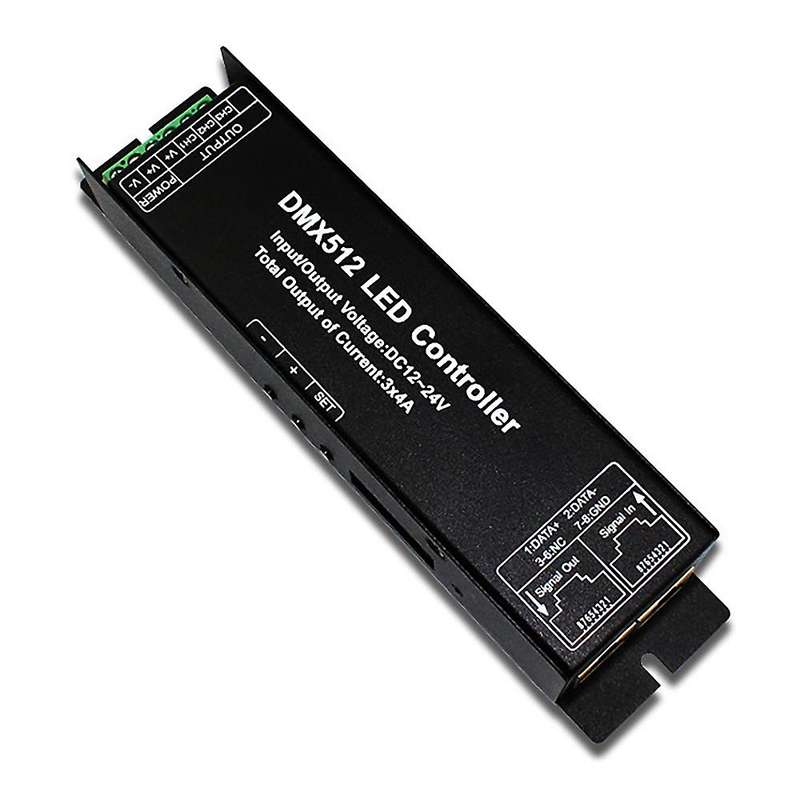

DMX512 Decoder LED Controller DC12V 3-Channel Constant Voltage Strip Display Digital Tube Decoder LE

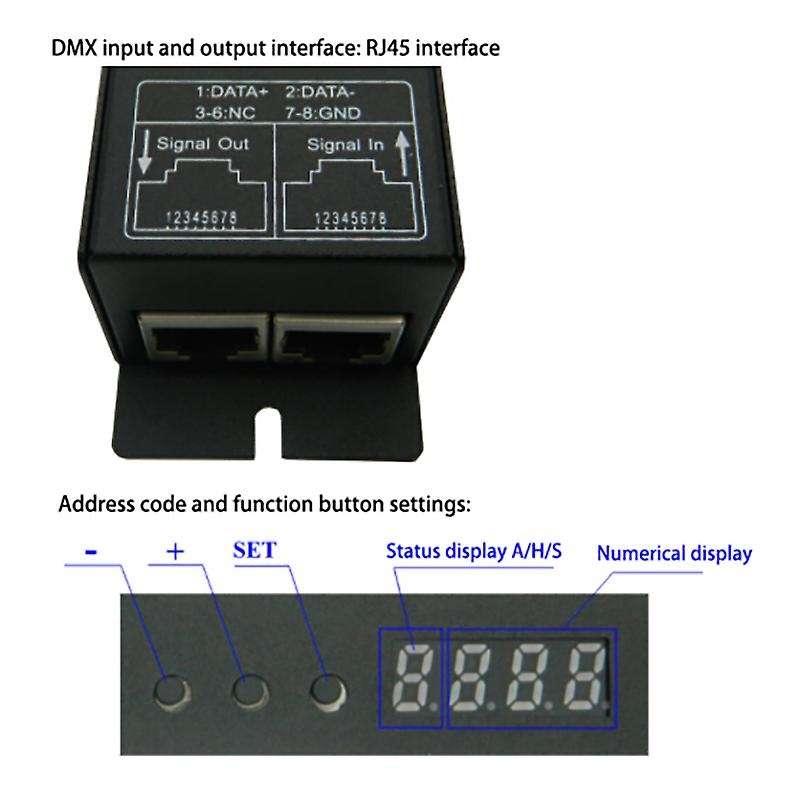

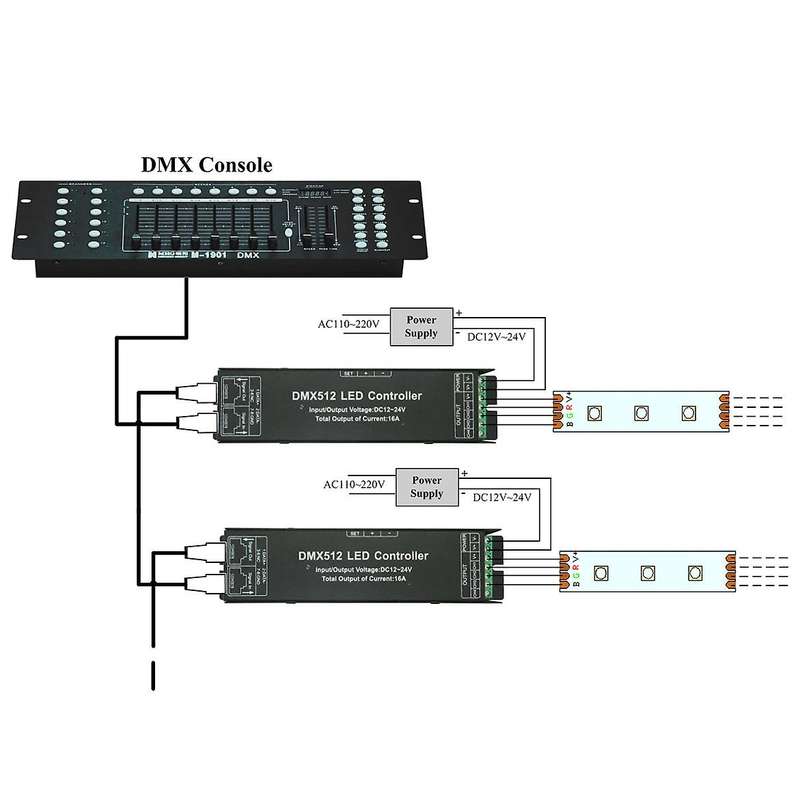

1. DMX decoder adopts advanced computer control chip, which receives DMX-512 standard digital control signal widely used in the world and converts it into PWM controller signal to drive LED2. It can be connected to the DMX digital console, and the decoder can be added to continuously expand the output channel to achieve more dimming or program change effects.3. When the decoder is not connected to the DMX console, this machine can be used as a synchronous controller, which can control multiple decoders and LED lights simultaneously.4. In addition, the LED digital tube is used to display the address code, and the key-press setting of the code address increases and decreases, which has the characteristics of flexible and convenient operation and easy to see and clear display.5. Wide application range and simple operationProduct name: DMX decoderDMX512 standard: DMX512\/1990Working temperature: -20-60Power supply voltage: DC12V~24VOutput current: rated current per channel 4A\/chChannel: 3 wayOutput power: 12V: less than 144W, 24V: less than 288WColour: blackMaterial: ABS+metalSize: 177 x 42 x 33mmPackage Contents:1 x constant voltage DMX512 decoderOnly the above package content, other products are not included.Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +\/- 1-3cm.
