DN20 G3/4 Copper Water Flow Sensor Pulse Output 1.75Mpa 2~45L/min Flowmeter DN20 G3/4 Copper Water Flow Sensor Pulse Output 1.75Mpa 2~45L/min Flowmeter
DN20 G3/4 Copper Water Flow Sensor Pulse Output 1.75Mpa 2~45L/min Flowmeter DN20 G3/4 Copper Water Flow Sensor Pulse Output 1.75Mpa 2~45L/min Flowmeter

DN20 G3/4 Copper Water Flow Sensor Pulse Output 1.75Mpa 2~45L/min Flowmeter

New 20 available
R451.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Returns
Replacement Guarantee: 7 Days: We stand by this guarantee
Get it now, pay later

Product details

Condition
New
Location
International
Bob Shop ID
651227152
Description:

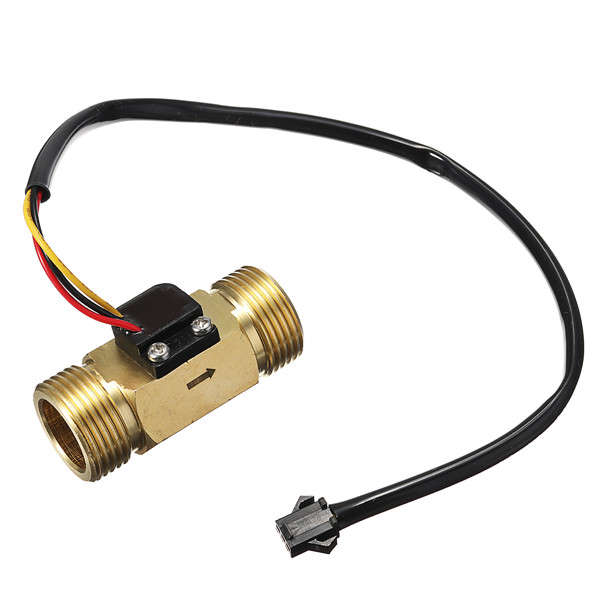

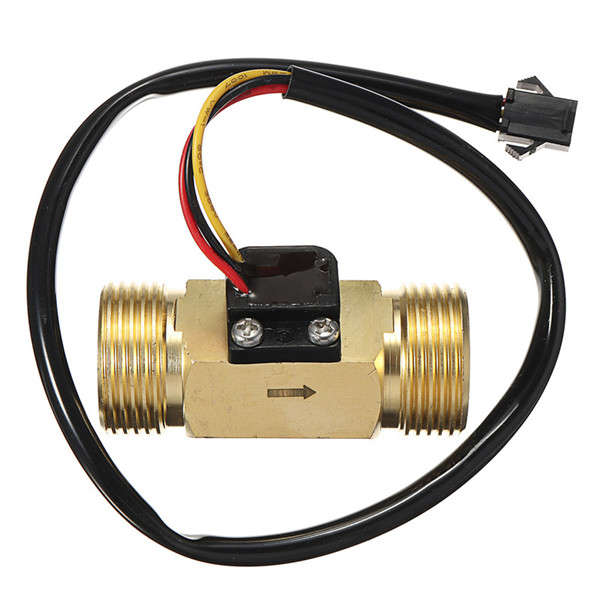

DN20 G3/4 Copper Water Flow Sensor Pulse Output 1.75Mpa 2~45L/min Flowmeter

Specification:

Model:SEN-HZ43WB
Flow range:2~45(m3/h)
Fit media:water
Working pressure:1.75MPa
Voltage range:DC4.5~18V
instantaneous flow pulse characteristics:F=[8.1Q-5]±10% , F means instantaneous pulse value(Hz),Q means instant flow
Max. Working current:15mA
Insulativity:insulation resistancea 100M
Electric strength:AC 500V, 50Hz

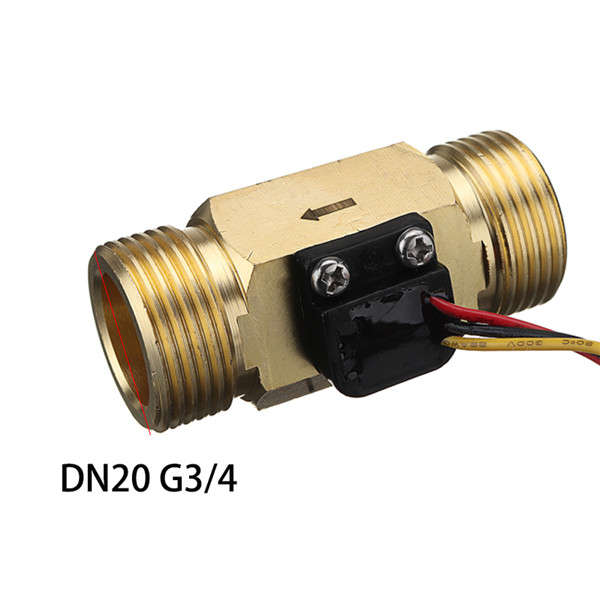

Outside nominal diameter:G3/4(mm)
Precision grade:+-10%
Type:vane-wheel type flowmeter

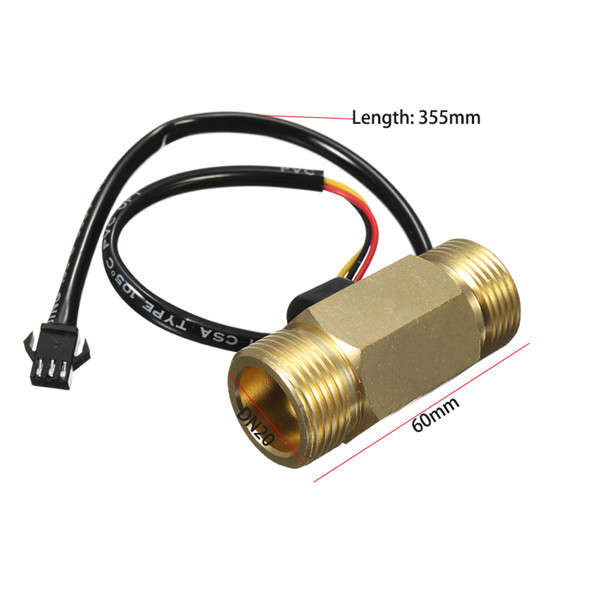

Connect way:|35*60/45mm length, G3/4 outside diameter water inlet and outlet.
Use voltage:DC 5V

Features:
This is a small zise product that easy to install.
Made of good quality material, the product is precise and durable, no power consumption.

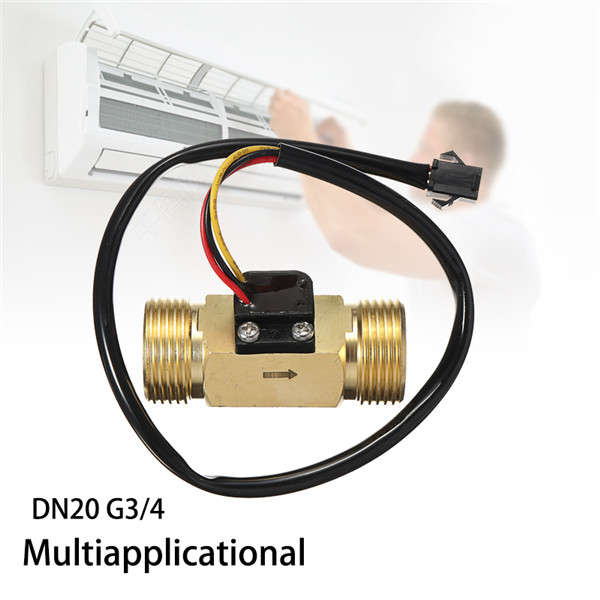

Suitable for gas water heater, electric water heater, washer, wall-hanging stove, electromagnetic water heater, intelligent IC water meter,cooling system, circulatory system, heating equipment,etc.

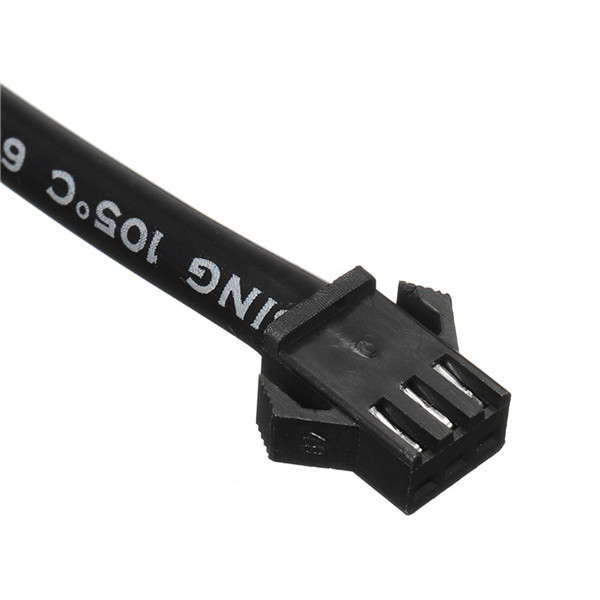

Three lines: red is positive, black is negative, yellow is pulse signal.

Package Included:
1x sensor

More Details:
