Features:
1. The handle can be quickly connected with PC/N-Switch/PS3/Seatm handheld through 2.4G receiver.
2. Support the wired connection between USB data cable and PC/N-Switch/PS3/Seatm handheld.
3. Two 1.5V * 2 'AA' dry batteries are adopted, which can be quickly replaced when the battery power is used up, thus saving the charging time.
4. Support key connection for code.

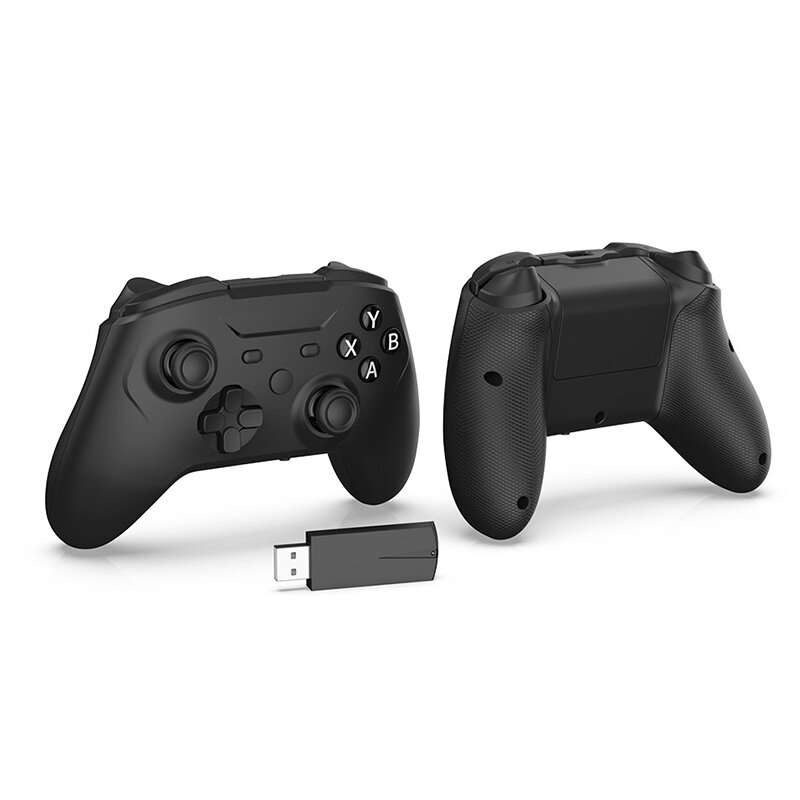

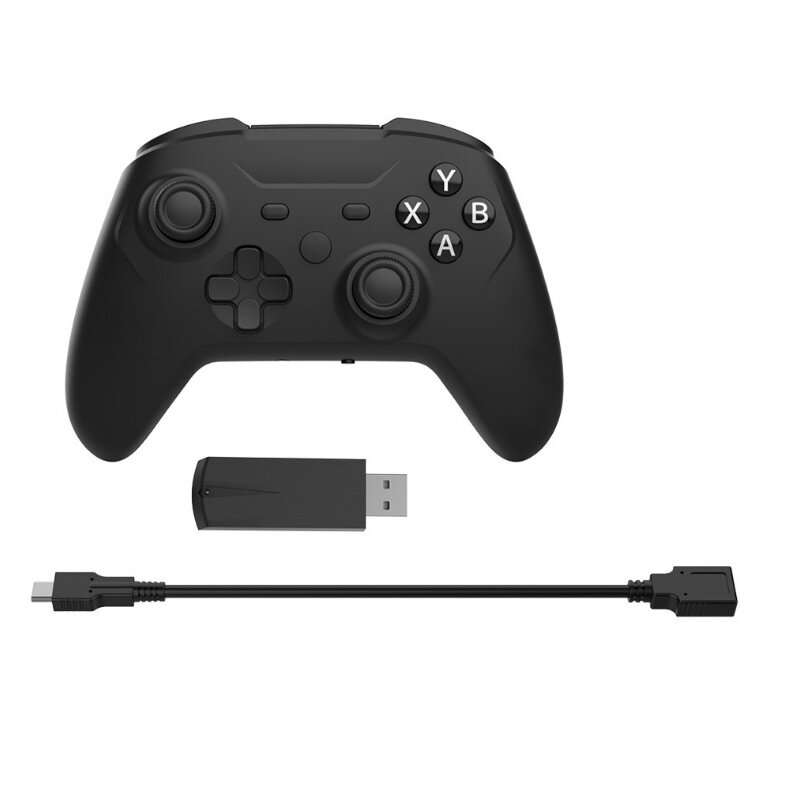

Package Include:
1ￃﾗ Gamepad
1ￃﾗ Receiver
1ￃﾗ Cable
6ￃﾗ Caps

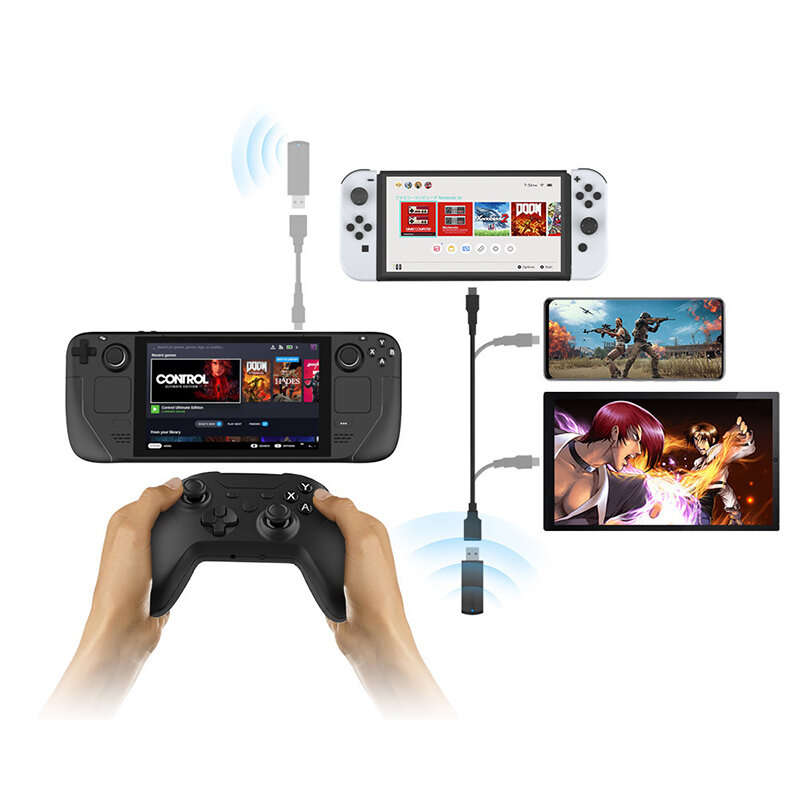

Connection Mode:
Switch wired connection mode
1. before using wired connection, please confirm the system of the Switch host: set'->' handle and sensor'-> wired connection of the pro handle is on.
2. the handle is connected to the Switch base through USB data cable, and it can be used, and the corresponding indicator light of the handle is displayed on the long light.
Switch 2.4G connection mode
1. Insert the 2.4G receiver that comes with the handle into the USB port of the Switch base, and the blue light of the receiver flashes to indicate that it is connected.
2. Put the battery into the handle and press the 'code key' for 3 seconds, and the left and right 3D lights will flash quickly, indicating that they are connected with the receiver; After the connection is successful, the left and right 3D lights and the blue light of the receiver are always on. A short press of the code key is the reset function.
PS3 host connection mode
1.USB wired connection: Insert the USB cable into the USB port of the PS3 host and connect the handle. When the left and right 3D lights are always on, the handle connection is successful.
2.2.4G Wireless connection: Insert the 2.4G receiver that comes with the handle into the USB port of the PS3 host, and the blue light of the receiver flashes to indicate the connection.
3. Put the battery into the handle and press the 'code key' for 3 seconds, and the left and right 3D lights will flash quickly, indicating that they are connected with the receiver; After the connection is successful, the left and right 3D lights and the blue light of the receiver are always on. A short press of the code key is the reset function.

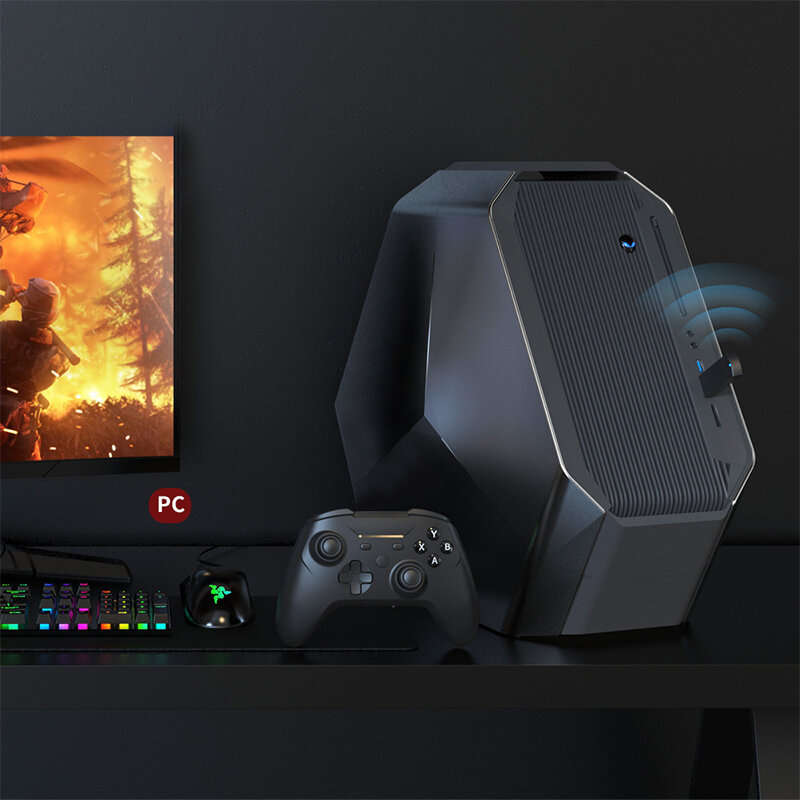

PC connection mode
1.USB wired connection: Insert the USB data cable into the USB port of the PC and connect the handle. When the left and right 3D lights are always on, the handle connection is successful.
2.2.4G Wireless connection: Insert the 2.4G receiver that comes with the handle into the USB port of the PC, and the blue light of the receiver flashes to indicate that it is connected.
3. Put the battery into the handle and press the 'code key' for 3 seconds, and the left and right 3D lights will flash quickly, indicating that they are connected with the receiver; After the connection is successful, the left and right 3D lights and the blue light of the receiver are always on. Press the reset handle of the code key briefly.
4. Switching between 4.DINPUT and XINPUT modes: press and hold the X+Y+HOM key for about 3 seconds, and the 3D light flashes briefly to indicate that it is converted into merits and demerits, and you can switch the two modes freely. XINPUT mode: there are 10 keys in test mode, and DINPUT mode: there are 15 keys in test mode.

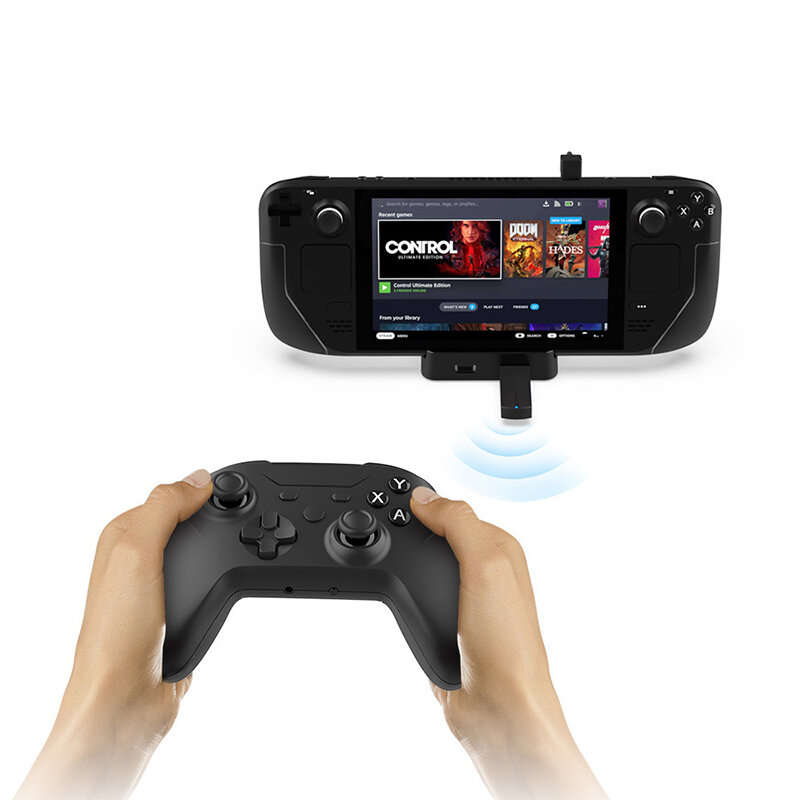

Steam handheld connection mode
1.USB wired connection: insert the USB data port into the TYPE-C to USB data port to connect the TYPE-C interface of the Seatm handheld and connect the handle. When the left and right 3D lights are always on, the handle connection is successful.
2.2.4G wireless connection: insert the 2.4G receiver that comes with the handle into the TYPE-C to USB data port to connect with the TYPE-C interface of the Seatm handheld, and the blue light of the receiver flashes to indicate that it is connected.
3. Put the battery into the handle and press the 'code key' for 3 seconds, and the left and right 3D lights will flash quickly, indicating that they are connected with the receiver; After the connection is successful, the left and right 3D lights and the blue light of the receiver are always on. A short press of the code key is the reset function.
Headphone mode
Switch platform supports headset connection, so you can use headset normally: other platforms (PS3 host /PC/Seatm handheld) do not support headset connection.
Operation Instruction:
1. Press the HOME button briefly to start the machine; Press and hold the HOME button for 5 seconds to turn off the handle.
2. When the handle is not operated at all, the handle will go to sleep after 10 minutes.
3. In normal game operation, the handle will vibrate according to the rules of the game. The handle adopts bilateral motors, and the vibration of the left hand is stronger than that of the right hand.

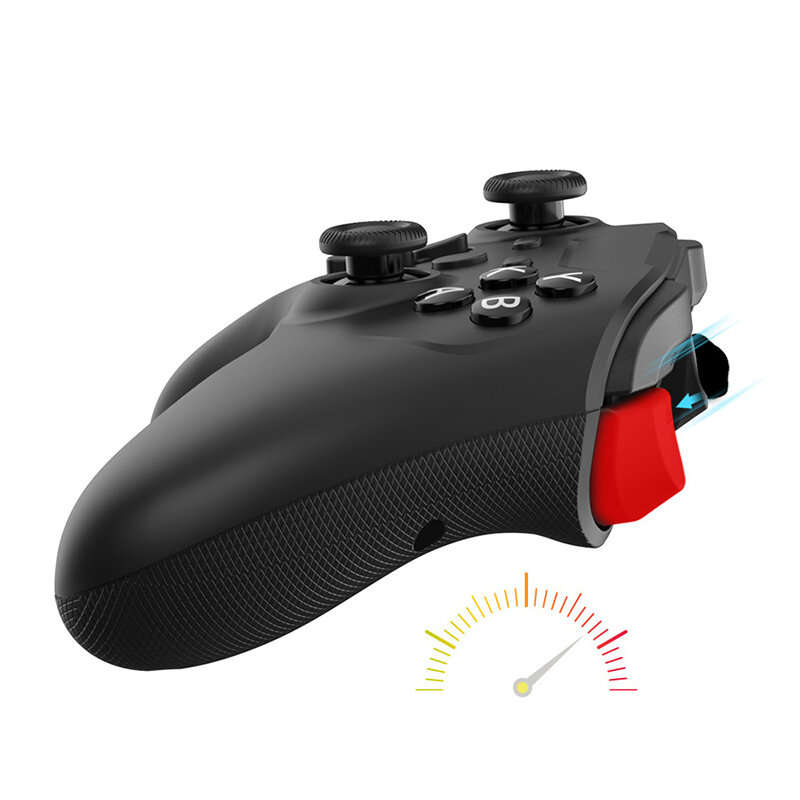

4. Vibration intensity adjustment: When the handle is connected to the computer, press and hold the four buttons Z, ZL, R and ZR for 3 seconds to adjust the vibration intensity of the motor, and the four gears can be adjusted: 0%-30% (weak)-70% (medium)-100% (strong).
5.3D light switch mode: Left and right 3D lights turn off/on mode: press and hold the left 3D key for 5 seconds to turn it off, and then press and turn it on for 5 seconds.
Remarks: The right 3D button cannot switch the left and right 3D lights, only the left 3D button can be pressed to switch.
