Product information
Pet GPS Tracker Tag Collar. Keep 24/7 track of your most valued assets with this superior quality GPS collar tracking devices. The devices comes complete with a collar and tag holder for you Dogs or Cats etc.
The device is also suitable for tracking almost anything such Pets, adults (Alzheimer's), children, shipments, transport, lost baggage, livestock, game tracking etc. The device is fully configured and all data monitored via a (free) application installed on your Cell Phone. The application supports both Android (Samsung etc.) or IOS (iPhone/Apple) and can be installed on any number of phones to track the device e.g same application can be installed on Mom, Dad, Grandparents, care center, Baby sitters phones. These contacts are known as Guardian Phones.
The GPS collar requires a GSM 'Micro SIM card' to function (with data enabled) obtained from your preferred network operator (supports prepaid SIM cards).
Important: Full Technical and Configuration Support is Included in this offer
- Due to the challenges faced by some customers to correctly configure these units, Henrac Tech have contracted the services of a very experienced third party to provide a full support service on this device.
- As such after purchase you will be contacted by Ernest and units will be shipped from KZN and not our Gauteng offices.
- Please download the below Guide and advise if you are comfortable with the setup (or have purchased units previously and are familiar with the configuration). If stated in the order comments section or via a separate email we can ship to you directly from Gauteng.
- Please select if you require full technical support or not. If yes, please allow an additional 5 days
User Manual & Setup Guide: To download our own manual for SA please [click here].
GPS collar Features:
- Three Positioning Methods to ensure you are always in-touch: 1) Real time GPS Satellite location with an accuracy of 5-10 meters. The application will indicate when positioning is via GPS (most accurate). If GPS signal is not available the watch will first try 2) WIFI positioning (10-30m) and then 3) LBS (location based service) which makes use of your cellular networks cell tower information (100-300m)
- Geo-fence Boundary Alarm: should the device move out of a particular boundary an alarm will be sent. Set via the app.
- Historical Route: the application will keep a historical record of all the watches movements for the past 3 months
- SOS . Signal is sent to all 3x the cellphone contacts listed in the apps SOS section.
- Audio Listen Monitor: should you be uneasy about a particular situation you can via the app activate a high sensitivity microphone to 'listen in' to the audio around the watch. No indication of this feature been engaged is displayed on the watch.

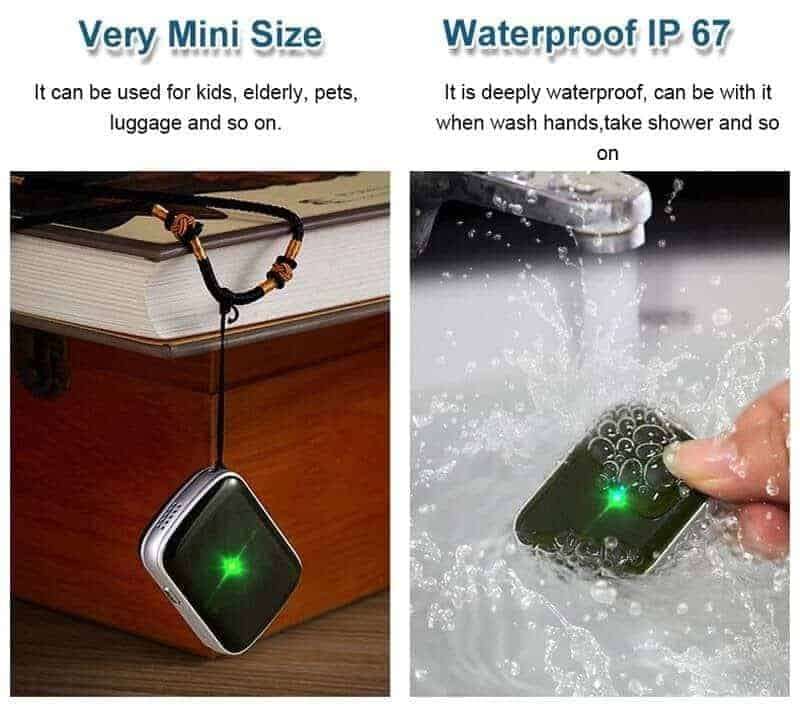

- Waterproof: This device also known as a Tag or GPS Bracelet is waterproof (IP67) and can be submerged in water to a depth on 1m. Suitable for swimming breeds.
Detailed Specifications
| Color | Tag - black / Collar holder - Black / Collar - Black |
| Net weight | 36g |
| Size | 52 x 38 x 16mm |
| Buttons | Power button(P) and function button(F) |
| GSM antenna | Four frequency PIFA antenna |
| Battery | 1000mAh (2 weeks standby, average recharge is 8 days *depending on usage) |
| SIM card slot | one slot (micro) |
| I/O port | Magnetic suction charging |
| Hardware | |
| Chipset | MTK MT2503A |
| GPRS | Class 12 |
| GPS signal | L1,1575.42MHz C/A code |
| GPS channels | 22 channels |
| GPS chip | Tracking Sensitivity:- 165dBm, acquisition sensitivity:-148dBm |
| GPS accuracy | 5~15m |
| LBS accuracy | 100-1000m |
| Minimum standby current | <0.5 mA |
| Average standby current | <2.5 mA |
| Average working currency | <55mA |
| Working temperature | -20~70 |
| working humidity | 5% to 95% |
| GPS antenna | Built-in high sensitivity ceramic antenna |
| GSM antenna | Four frequency PIFA antenna |
| Bluetooth | bluetooth 3.0(Normal closed) |
| G-sensor | Support |
| MIC | Support |
| Software | |
| Supported OS | Support android 2.3 or above ,IOS5.0 or above |
| Languages | Chinese/English |
| GSM+GPRS+GPS | GPS+LBS+Wifi positioning |
| AGPS | Cool start 26s positioning |
| Power manage | Ultra low power consumption of power management, intelligent dormancy (sleep mode - battery saving function) |
| Record function | Select the record function on the APP, and then the device can be record actomate, after record,will send back to APP directly. |
| Geofence | Outside the range setting will automatically generate an alarm |
| Historical track | Three month's historical data |
