(Imported from America) - T&C's Apply The Donegan Premier series magnifier is a hand-held magnifier that has a brass surround, a round lens with a wide rim, and is available in a variety of lens sizes, and multiple magnification powers (X) at specified focal lengths, or distance from object. This magnifier enhances the size and resolution of an object or image, and is commonly used for a variety of applications such as fly-tying, jewelry-making, watch-making, needlework, electronic inspection, book-reading, print inspection, and stamp-collecting.
Determining Magnification
Diopter Magnification Focal Length
(Distance from Object) Sample View 20/20 vision 20" (50.8cm) 2-diopter lens 1.50X 20" (50.8cm) 3-diopter lens 1.75X 14" (35.56cm) 4-diopter lens 2.00X 10" (25.4cm) 5-diopter lens 2.50X 8" (20.32cm) 7-diopter lens 2.75X 6" (15.24cm) 10-diopter lens 3.50X 4" (10.16cm)

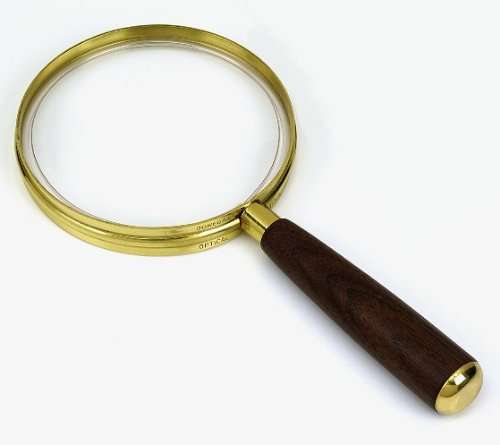

This handheld magnifier features a polished brass edge and trim with a wide rim around the lens to prevent scratching, and a walnut wood handle for aesthetic appeal. It has a round-shaped body with a wide rim to protect the lens surface, and has an extended handle for gripping. It has a round, optical-grade lens (available in a variety of sizes) that has been ground and polished into a prismatic lens, and is aspheric to produce a sharp image to the edge of the lens for less distortion. It is available in multiple magnification powers (X) at specified focal lengths, or distance from object. The magnifier weighs approximately 0.333 to 0.667 lb., and has a one-year limited warranty.
Diopter (D) is a technical term for the measurement of the light curvature and thickness of a lens. A dioptric number and a magnification number are not the same thing. Diopter strength represents a specific magnification power (X). For example, a 5-diopter provides 2.5X magnification (at a distance of 8 ). The higher the diopter, the more magnification a lens can provide. As magnification increases, distance to the object (focal length), and field of view (diameter, or narrowness of view) decrease. Magnifiers and prescription eyeglasses have a diopter value, such as 1.5 or 2. The dioptric strength of an accessory lens, such as prescription eyeglasses or an eye loupe, must be added to the dioptric strength of the magnifier to calculate total magnification.
Magnifiers are devices used to enlarge the visual appearance of an object or image. Magnifiers come in a variety of styles such as hand-held, headband, standing, clip-on, eye loupe, and those that hang in a necklace form, or fit in a trouser pocket. Magnifiers are commonly made of plastic or glass. They can have one or more lenses with varying magnification abilities, and can have a binocular configuration with a single lens, or two separate lenses. They are sometimes used with LED or fluorescent light sources to help control viewing capabilities. Magnifier ability is often expressed as magnification at a specific length. For example, 1.75X at 14 means that when a magnifier is held at 14 from a viewer s eyes, the object will be magnified 1.75 times (X) its actual size. As magnification increases, viewing areas and focal length decrease. Magnifiers sometimes have a diopter number, expressed as + or -D, which is a measurement of strength (or power) of the lens. Some magnifiers are marked with a dioptric number on the lens. A high diopter number has a higher magnification than a low diopter number. Aspheric magnifiers, unlike spheric magnifiers, produce a sharp image to the edge of the lens for less distortion. Magnifiers are widely used in jewelry inspection and fabrication, watch-making, needlework, artwork, fly-tying, electrical inspection, reading, print inspection, and stamp-collecting.
Donegan Optical manufactures and distributes precision visual devices for hobbyists and professionals in industry, home, office and crafts applications. The company was founded in 1952 and is headquartered in Lenexa, Kansas.
What s in the Box?
- Premier series hand reader magnifier
- Vinyl carrying pouch
- Instruction manual
