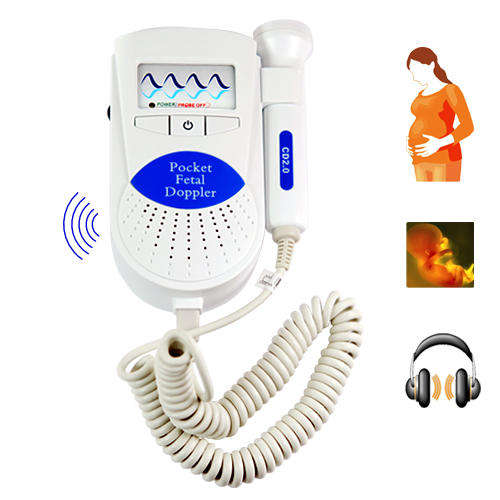

Doppler Baby Heart Rate Monitor

Doppler Baby Heart Rate Monitor

Simple Doppler baby heart rate monitor that helps you listen into the miracle of life. This simple to use Doppler let you listen to you baby's heart beat without the need of leaving your living room.

Mothers can finally experience the joy of listening to their unborn baby's heart beat, with out having to get in the car and go on a stressful drive to the hospital. The built-in speaker along with the earphone input allows for optional listening of the baby's heart beat. With the loud onboard speaker, you can share your joy with family and friends. And if you are a computer savvy individual, then you can also use a 3.5mm jack cable to connect this baby heart rate monitor to your computer and record your baby's heart beat using the already provided sound recorder in the Windows operating system.

This pocket sized portable heart rate monitor only requires 2 AA batteries to power-up and your good to go, allowing you to take your new Doppler heart rate monitor with you anywhere. The H23 is the simple version of our Doppler heart rate monitors. This model comes with a simple power ON/OFF button, earphone input and volume control. Straight from the box, insert two AA batteries and start listening to you baby's heart beat, and feel the joy that every mother does.

At a Glance...

• Easy & Simple To Use
• Doppler Heart Rate monitor
• Use Earphone of Built-in Speaker

Manufacturers Specifications

• Primary Function: Baby Heart Rate monitor
• Normal Frequency: 2.0MHz
• Working Frequency: 2.0MHz +/-10%
• Ultrasonic Output Intensity: Ista <5 mW/cm2
• Working Mode: Continuous Wave Doppler
• Effective Radiating Area of Transducer: 208mm2 +/-15%


• FHR Performance:
  - FHR Measuring Range: 50 - 240BPM
  - Resolution: 1BPM
  - Accuracy: +/- 3BPM


• On Board Buttons: Speaker, 3.5mm Jack Input, Volume Control, Power Button, Battery Housing Case
• Suitable For Use After 12 Weeks Of Pregnancy
• Working Environment:
  - Temperature - -10 to +55 degrees Celsius
  - Humidity - <93%


• Complies With: IEC 60601-1:1988, A1:1991, A2:1995
• Power Consumption: <0.8W
• Power Source: x2 1.5V Batteries
• Dimenssions: L:130 x W:70 x D:35 (mm)

Product Notes

• Anti Shock, perfectly safe to use everyday
• Probe can be easily detached from the main unit for storage
• 2MHz waterproof probe ensures a high-sensitivity probe that cannot be damaged by transmission gel
• You can use sound recorder in the Windows OS to record your baby's heart beat. Click start, select programs, go to accessory, then select entertainment, and you will see the Sound Recorder application.

Package Contents

• Doppler Fetal Heart Monitor
• Probe Sensor
• User Manual - English

Frequently Asked Questions

• What is the difference between this Doppler heart rate monitor and the other more expensive unit you have listed?
  The other more expensive baby heart monitor comes with a heart BPM reader and an LCD display screen. This baby heart rate monitor only allows you to listen to the heart beat, and does not support hear beat per minute reading function.
• Can this Doppler heart rate monitor be used on any heart?
  Of course, the primary function of this Doppler heart rate monitor is designed for pregnant women who need or simply just want to be able to listen to their baby's heart beat from the comfort of their living room. But it can still be used to listen to the heart of a child or adultt
• What is BPM?
  BMP Stands for Beats Per Minute
• Does this baby heart monitor come with any gel?
  No, but is works just fine with Vaseline or any type of gel body wash.
