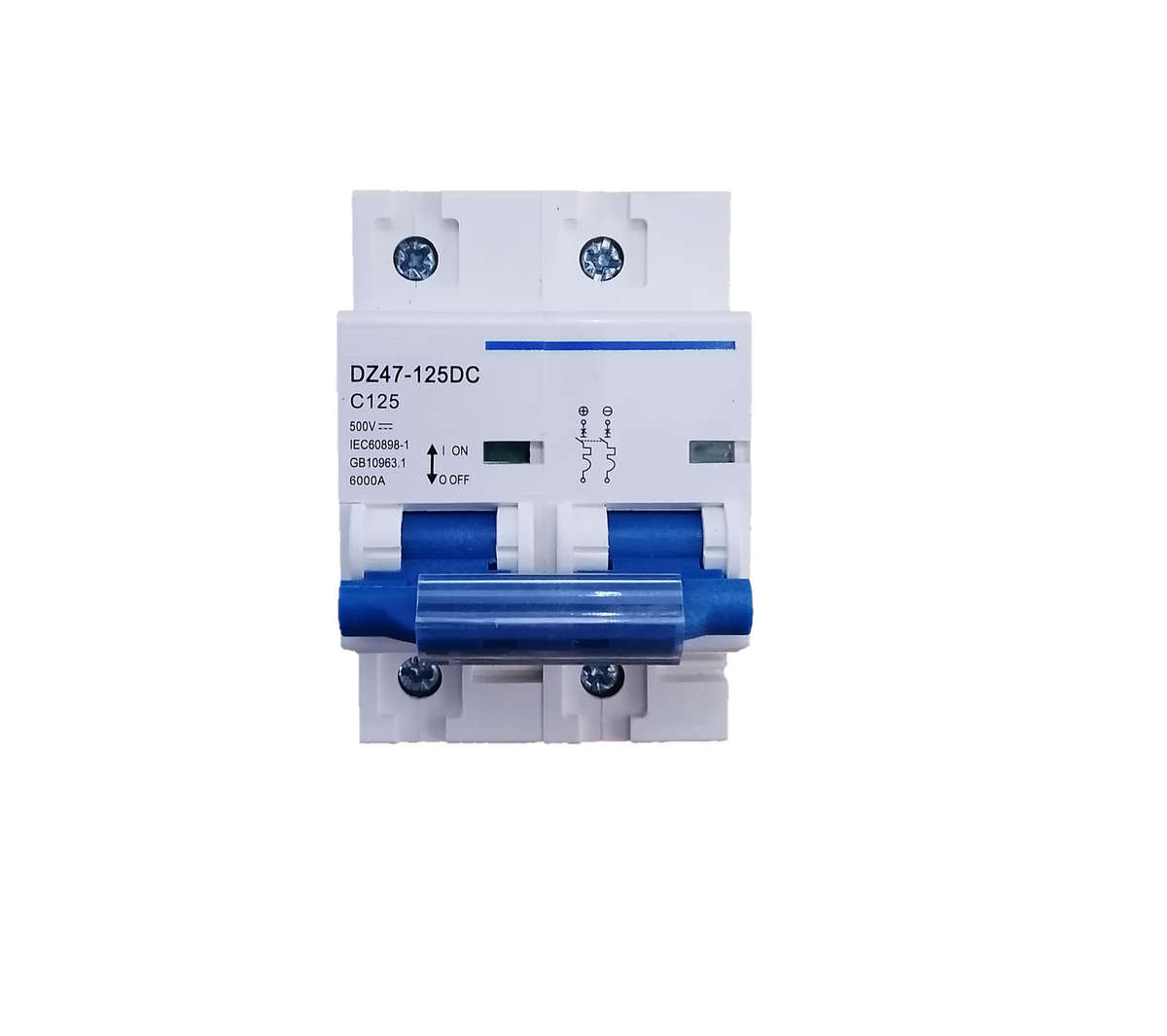

Double Pole DC Circuit Breaker 100A | 12-100v DC | 800-1000w | Solar Circuit Breaker

DZ47-125 miniature circuit breakers are used in lighting distribution system or motor distribution system for protecting overload and short-circuit. It has high breaking capacity and can trip quickly. Its case is made with high fire -resistant and shockproof plastic. The product, with long life, is mainly used in DC 12-100V DC circuit for overload and short-circuit protection as well as for un-frequent on-and-off switching electric equipment and lighting circuit in normal case.
Working condition:
Install height: altitude 2000m
Ambient temperature:
- Max temperature: +40c
- Min temperature -5c

Type	DZ47-125-1P	DZ47-125-2P	DZ47-125-3P	DZ47-125-4P
Pole	1P	2P	3P	4P
Rated current(A)	50, 63, 80, 100, 125	50, 63, 80, 100, 125	50, 63, 80, 100, 125	50, 63, 80, 100, 125
Rated voltage(V)		12-100V DC	400	400
Frequency(Hz)	50/60	50/60	50/60	50/60
Ambient temperature(c)	-5~40	-5~40	-5~40	-5~40
Rated breaking capacity(kA)	6	6	6	6
