Double-side PCB Prototype Screw Terminal Block Shield Board Kit Mega2560 R3

20 available / new

R417.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3462

93.46 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

641122188

Descriptions:

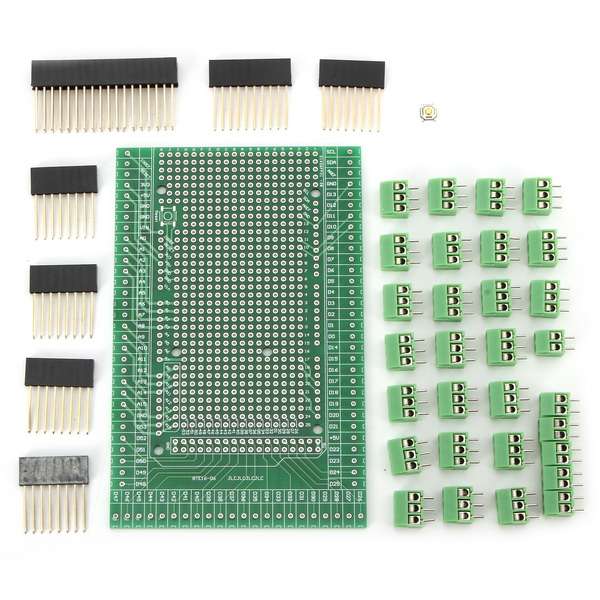

Prototype Screw/Terminal Block Shield Board Kit For MEGA-2560 R3
The Kit include Prototype PCB, Terminal Blocks, Female Header Sockets
Unassembled, variety mount methods, you can make flexible use

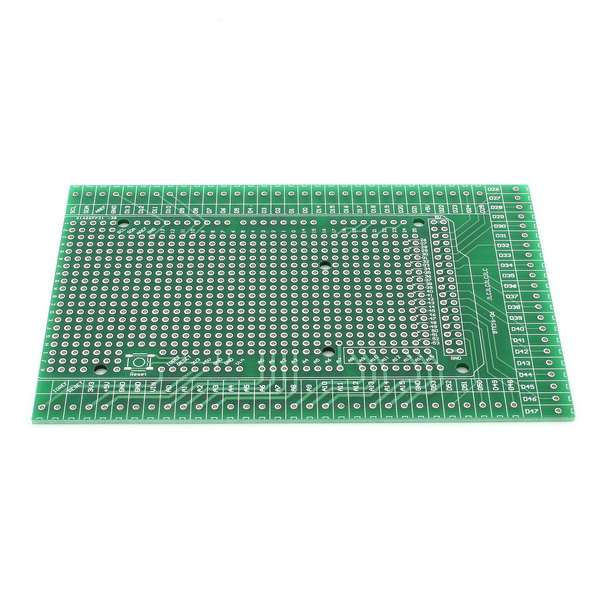

PCB:

FR-4 fiber glass PCB, dual copper layers, size 120mm x 78mm
Pads grid / pitch 2.54mm / 0.1, hole diameter 0.8mm
Terminal block pitch 3.5mm / 0.138, hole diameter 1.2mm

Terminal Block:

Pitch 3.5mm / 0.138 mini terminal blocks, total 84 pins(3pole x24pcs, 2pole x6pcs )
Wire range 26~16AWG, strip length 5mm, screws M2 steel, pin header and cage brass

Female Header Socket:

Pitch 0.1/2.54mm, pin length 15mm / 0.59
Single row 10pin x1pcs, single row 8pin x 5pcs, dual row 18pin x1pcs

Package included:

1 xDouble-side PCB Prototype Screw Terminal Block Shield Board Kit
