Double-side PCB Prototype Screw Terminal Block Shield Board Kit Mega2560 R3

Descriptions:

Prototype Screw/Terminal Block Shield Board Kit For MEGA-2560 R3

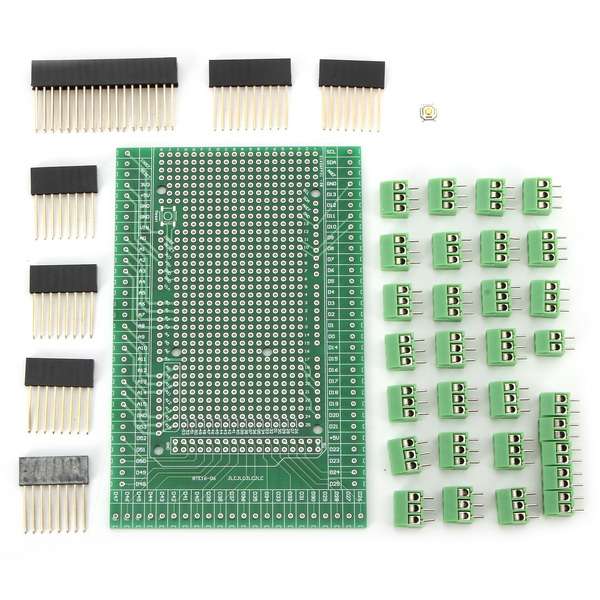

The Kit include Prototype PCB, Terminal Blocks, Female Header Sockets
Unassembled, variety mount methods, you can make flexible use

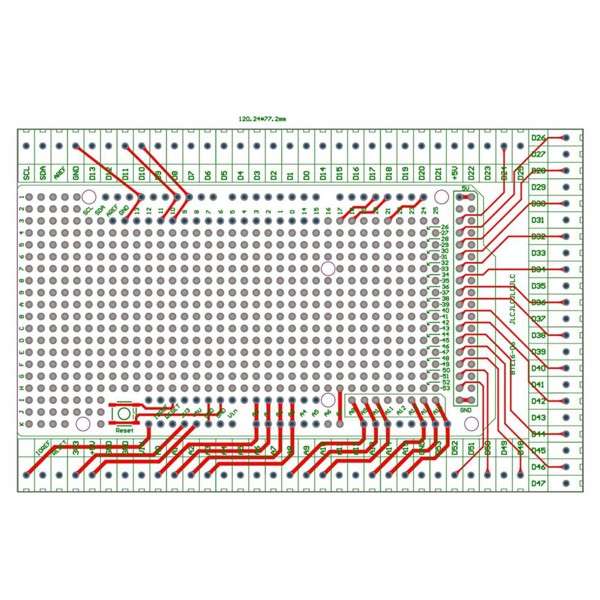

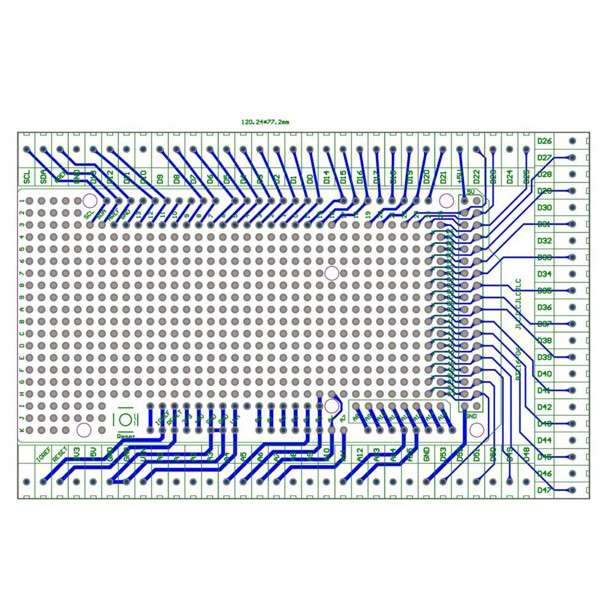

PCB:

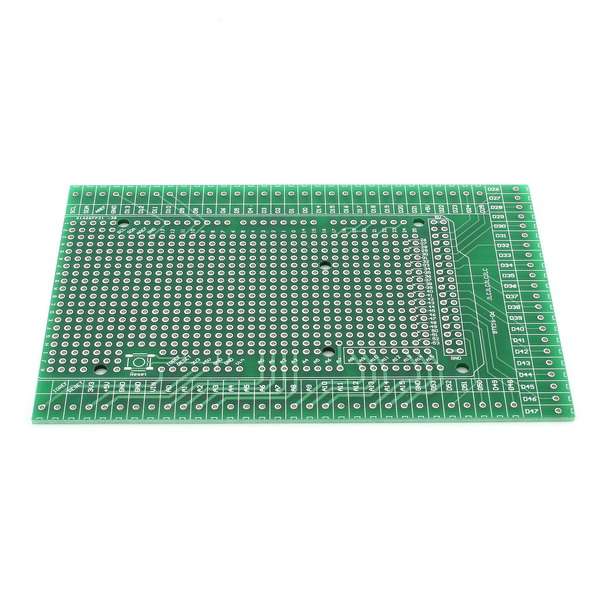

FR-4 fiber glass PCB, dual copper layers, size 120mm x 78mm
Pads grid / pitch 2.54mm / 0.1, hole diameter 0.8mm
Terminal block pitch 3.5mm / 0.138, hole diameter 1.2mm

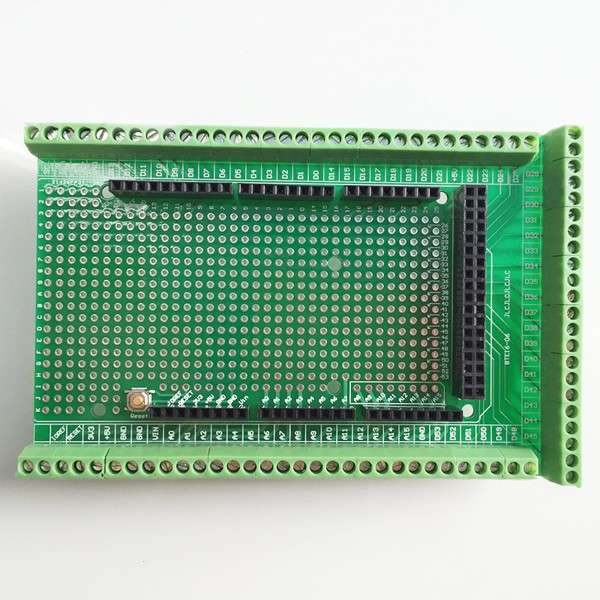

Terminal Block:

Pitch 3.5mm / 0.138 mini terminal blocks, total 84 pins(3pole x24pcs, 2pole x6pcs )
Wire range 26~16AWG, strip length 5mm, screws M2 steel, pin header and cage brass

Female Header Socket:

Pitch 0.1/2.54mm, pin length 15mm / 0.59
Single row 10pin x1pcs, single row 8pin x 5pcs, dual row 18pin x1pcs

Package included:

1 xDouble-side PCB Prototype Screw Terminal Block Shield Board Kit














, , , , ,
