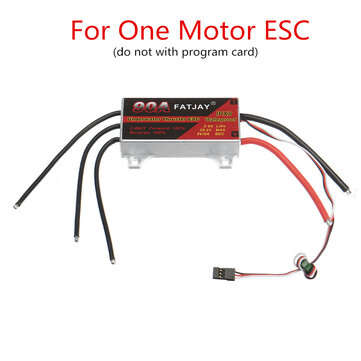

Double Sides Brushless 90A ESC Forward Reverse Two Way IPX8 Waterproof for... (TYPE: FORONEMOTORESC)

12 were available / new

R1,650.00

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3563

93.31 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Condition

New

Location

International

Bob Shop ID

612418644

SELECTED OPTION:
TYPE: FORONEMOTORESC

Description:

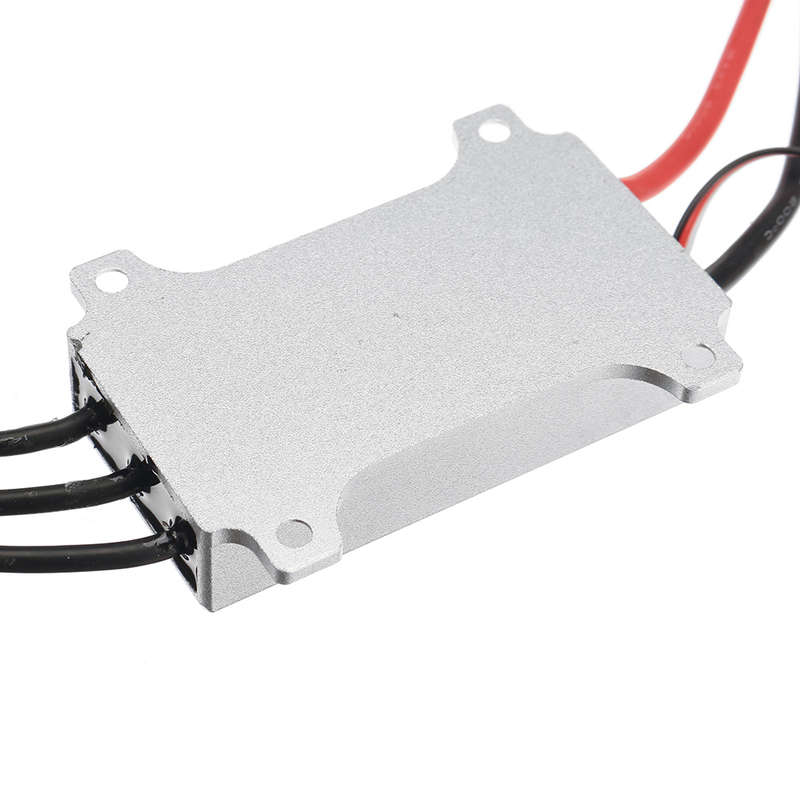

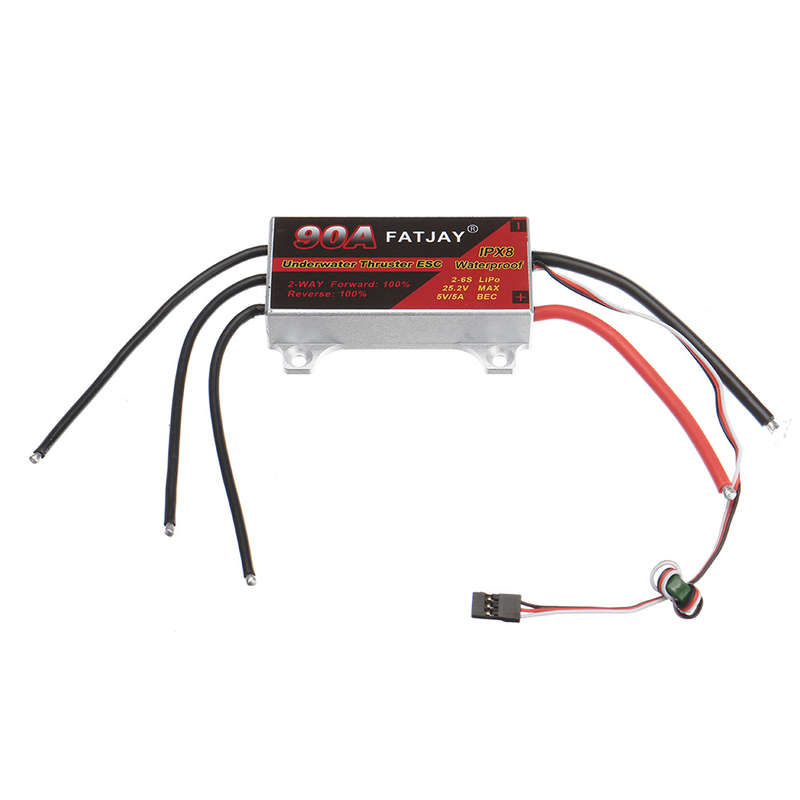

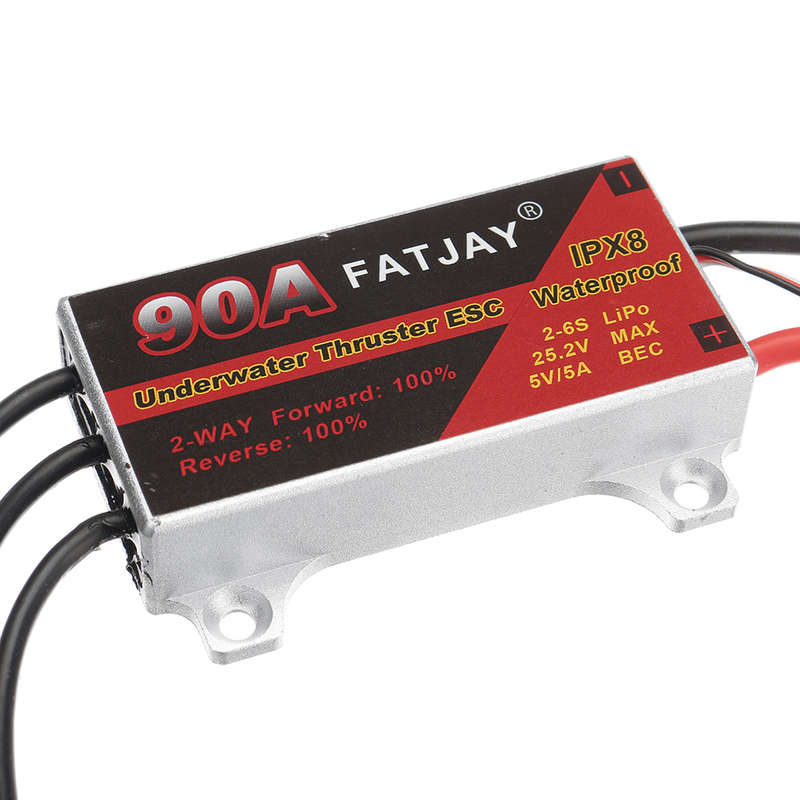

Item Name:Brushless ESC

Material:Metal and plastic

Color:As shown

Type:For one motor esc/For Two motor ESC/Program card(these are not all included,you need to choose it optional by yourself)
Product Size:82*60*35mm(Length*width*height)

Product Weight:For one motor esc weight is about 155g,for two motors esc is about 315g,program card is about 47g

Compatible Model:Underwater thruster

Spec:

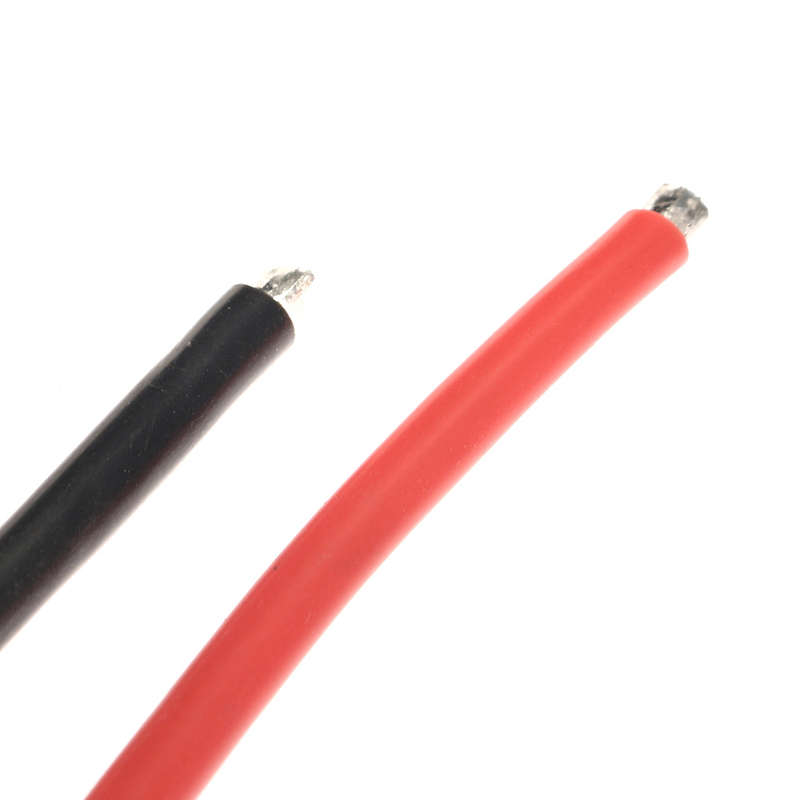

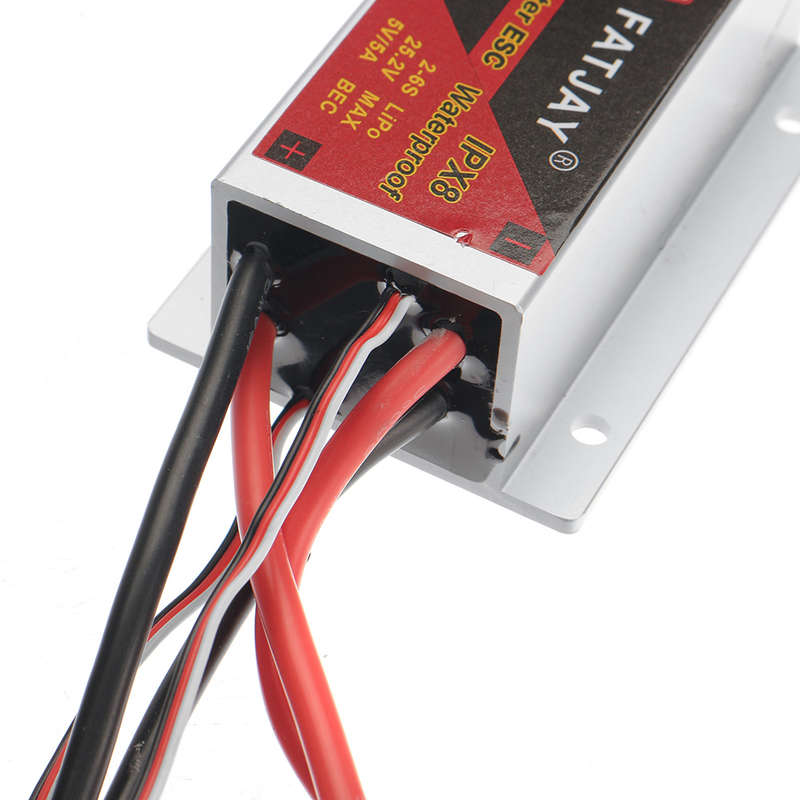

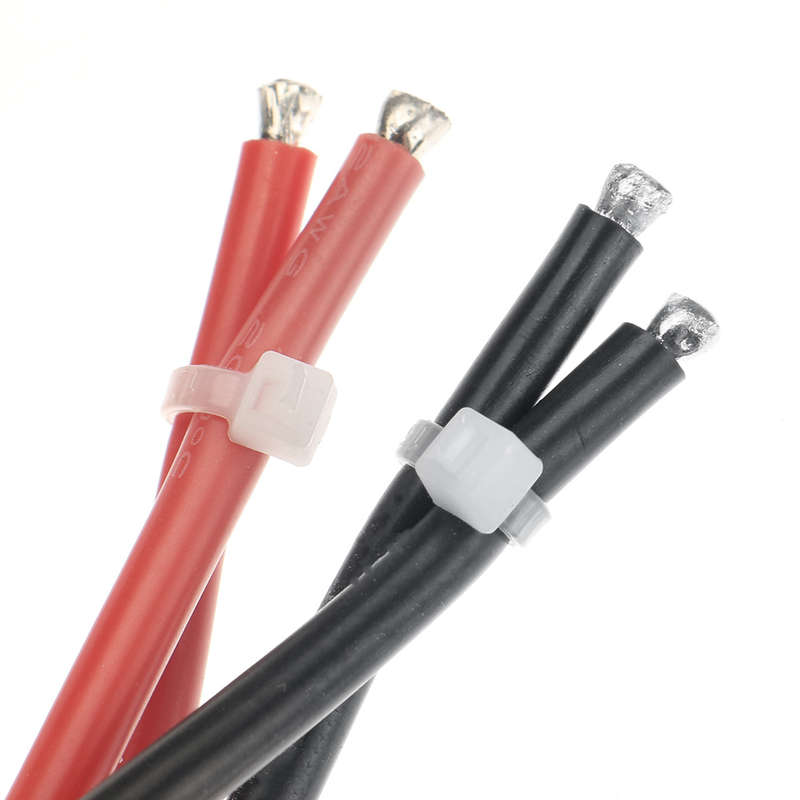

Power connector, red is positive, black is negative, length is 100mm

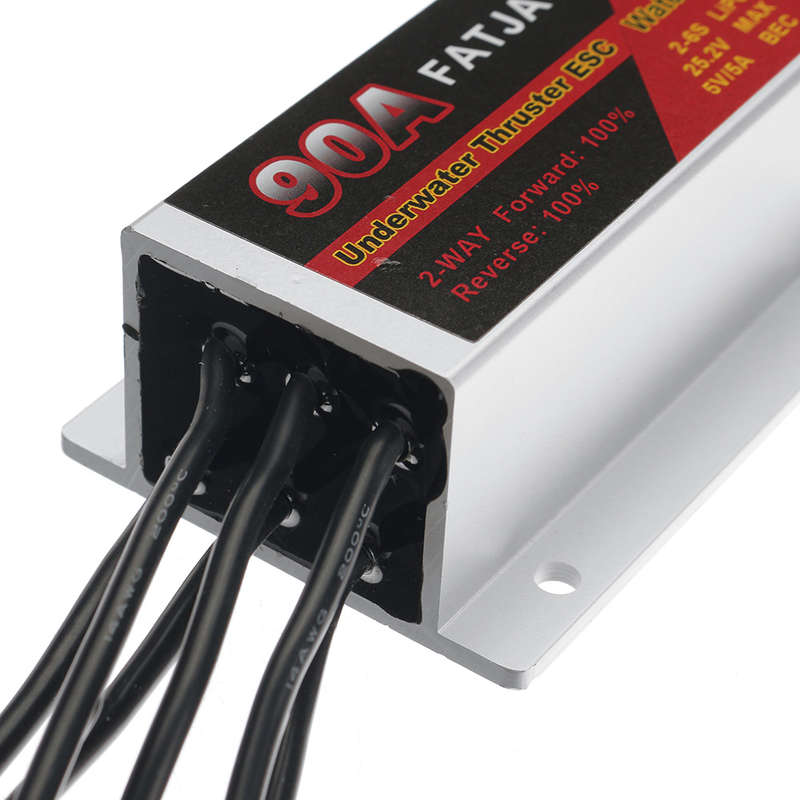

At the motor connector, the three black wires are connected to the three wires of the brushless propeller in no particular order,if the direction of rotation is reversed, swap any two wires,the cable length is 100mm, and the plug is a 4.0mm gold plug

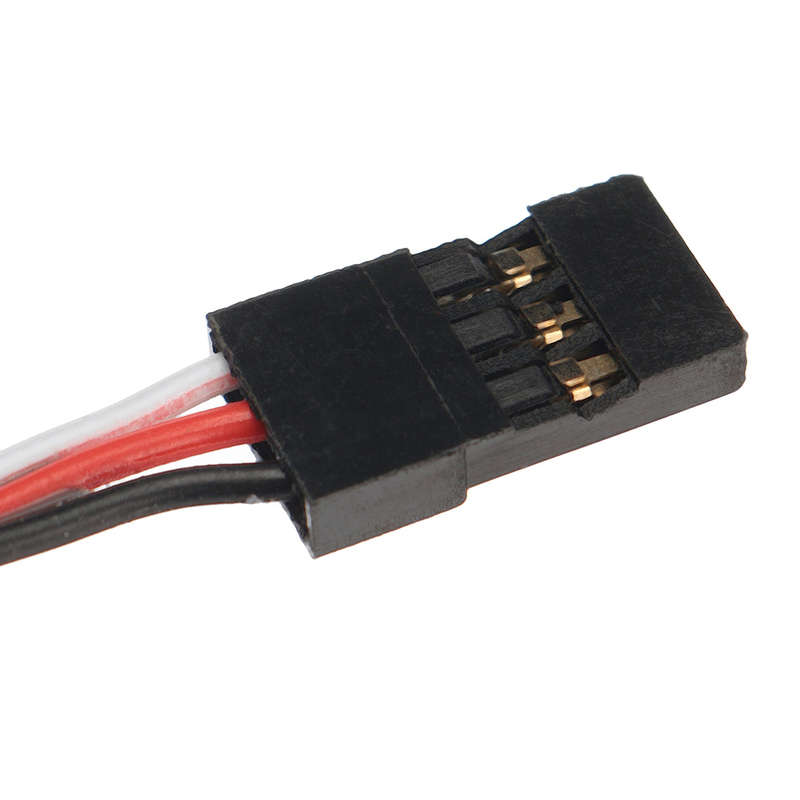

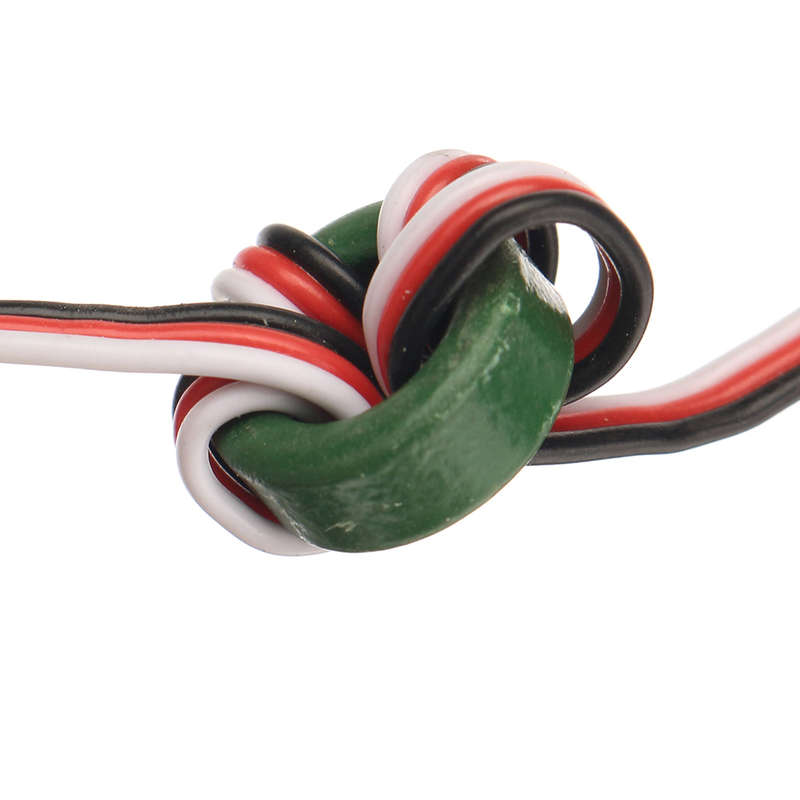

BEC is with 5V5A output, with anti-interference magnetic ring, red is positive, black is negative, and white is signal wire,if you connect to a single-chip microcomputer and you do not need 5V voltage, only plug in black and white wires

One of the ESC can drive with two motors at the same time,there are two modes,the first mode is the same speed of the two motors, and the second mode is the mixed control of the two motors with differential speed.

The speed of the forward throttle and reverse throttle of the ESC is 1:1, which means that the forward throttle is 100% throttle, and the reverse is 100% throttle

Continue Current:90A

Peak Current:540A

Suitable Voltage:2-6S,7-25.2V

Waterproof Level:IPX-8,up to 100m water depth

Input Signal Type:PWM signal

Note:

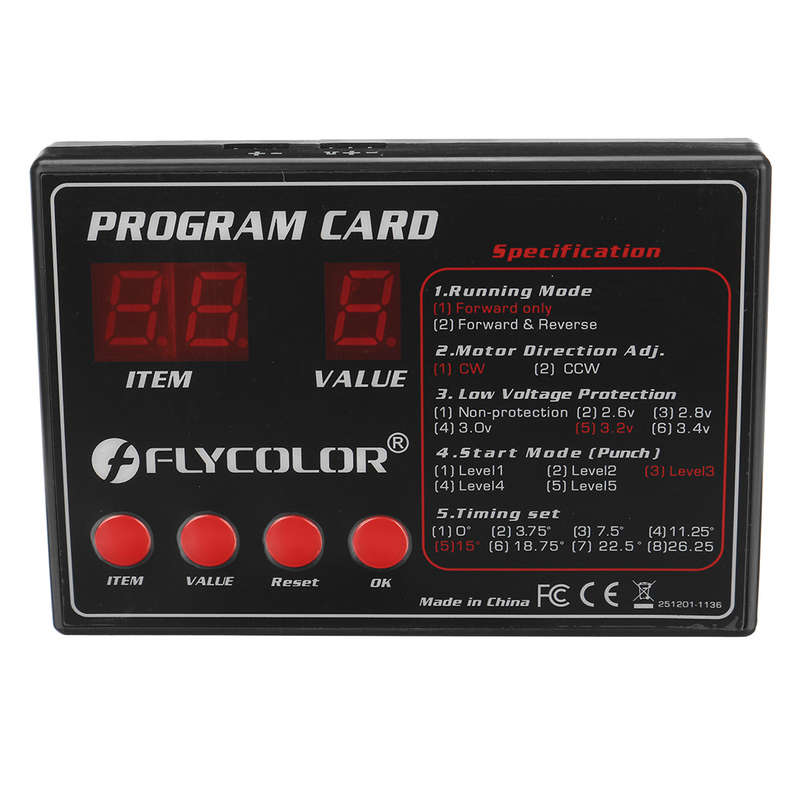

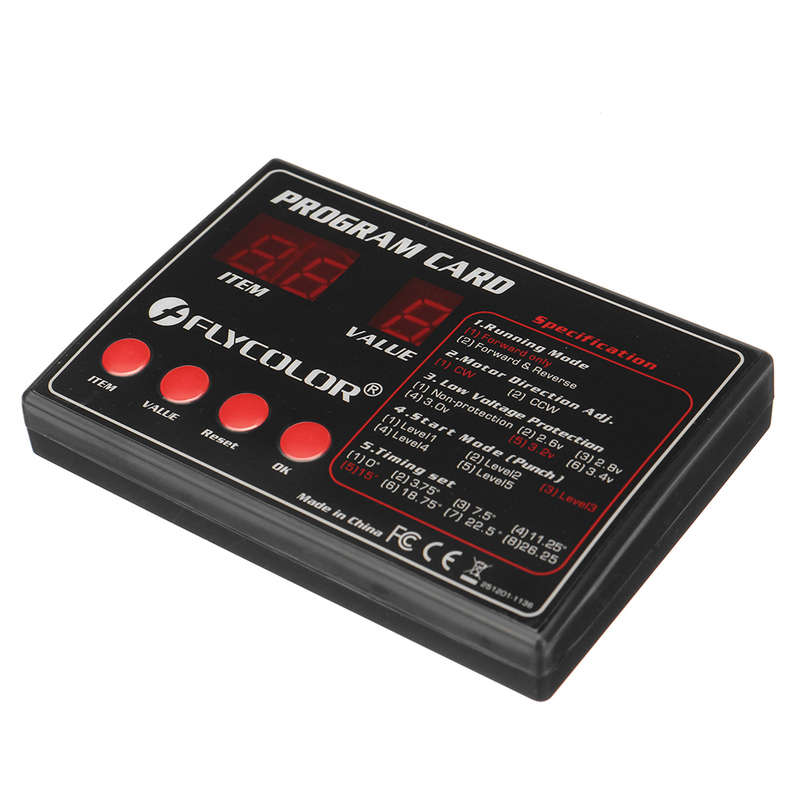

1.The program card can set the esc to single or double direction,it should be separately selected by yourself,only esc do not include program card

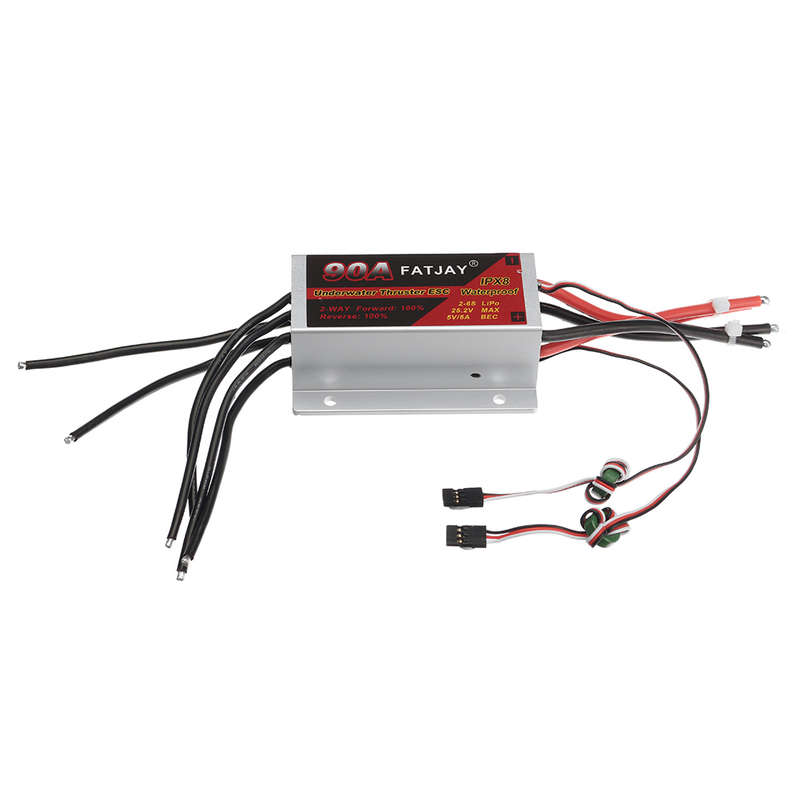

2.Only the for two motors ESC can drive with two brushless motors

Package Included:
1X Brushless ESC
