incl remote,programming cable.
working condition.
SAPO delivery incl.

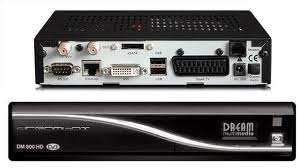

Powerful receiver for digital TV and Radio programs.
Main features are a 250 MHz PowerPC (350 Mips)
Linux OP, the Dreambox DM500 supports the Standard Linux API
- 10/100MBit compatible Ethernet Interface
- 250 MHz PowerPC Processor
- Enigma, Linux Operating System
- 2 LED status
- MPEG-2 Hardware decoding, DVB-S
- 1 x Smartcard-Reader (Dreamcrypt CA)
- 1 x Scart-interfaces (RGB, FBAS or S-Video)
- V.24/RS232 Interface
- 10/100Mbit compatible Ethernet Interface
- analog modem
- S/PDIF Interface for digital bit stream out (AC-3)
- 32 MByte Flash, 96 MByte RAM
- unlimited channel lists for TV/Radio
- channel-change time < 1 second
- automatic service scan
- directly bouquet-lists
- EPG (electronic program guide)
- Videotext Decoder
- multiple LNB-Switching control (DiSEqC)
- OSD in many languages and skin-support
- external12V power supply
Video parameter:
Input Level FBAS 1 Vss +/- 0.3 dB on 75 Ohm
Teletext filter in conformity with ETS 300 472 Standard
TV-Scart:
Output: FBAS, RGB, S-Video
Serielle Interface RS 232:
Typ RS232 bidirectional
Bitrate 115,2 kBit/s max.
Plug Connector SUB-D-9
Function: Update of Firmware
Ethernet:
10/100 MBit compatible interface
Function: Update of Firmware
LNB Power and polarisation:
LNB Current 500mA max. ; short-circuit-protected
LNB Voltage vertical < 14V no load, > 11,5V at 400mA
LNB Voltage horizontal < 20V no load, > 17,3V at 400mA
LNB shut-off at Standby-Mode
Count of active satellite position:
DiSEqC 1.0/1.1/1.2 and USALS (Rotor Control)
Power consumption:
< 10W / 12V
Input voltage:
DC12V +/- 15%
Extern power supply:
Input: 110-240V AC / 50-60Hz / 0,6A
Output: 12V = / 1A or 2A
Physical specification:
Ambient Temperature +15°C...+35°C
Humidity < 80%
Size (W x D x H): 195 mm x 130 mm x 40 mm
Weight: 0,6 kg
External power supply:
Input: 110-240V AC / 50-60Hz / 0,6A
Output: 12V = / 1A or 2A
Physical specification:
Ambient Temperature +15°C...+35°C
Humidity < 80%
Size (W x D x H): 195 mm x 130 mm x 40 mm
Weight: 0,6 kg
