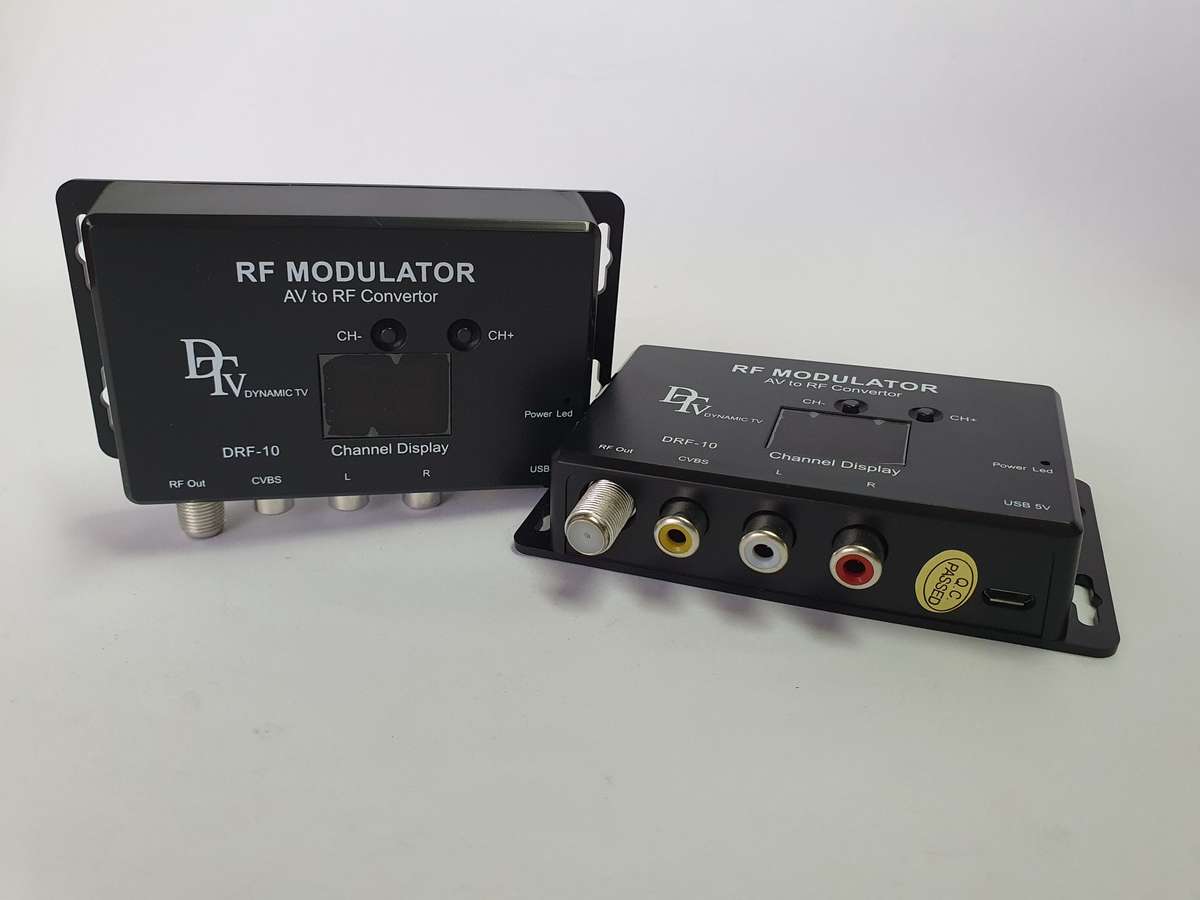

DRF-10 RF Modulator - AV to RF Converter

The DRF-10 is a small AV to RF converter. It changes RCA signals (red, white, and yellow plugs) into RF signals that travel through coaxial cable. This means you can share video and audio from decoders, CCTV systems, DVD players, and other AV devices with TVs that only have RF (antenna) inputseven if the TV is in a different room.

It is especially good for homes where you want to send content to several TVs using regular coaxial cables. It also works well with older camcorders, game consoles, and analog CCTV systems. Whether you are using it at home or for small video setups, the DRF-10 is a low-cost and easy-to-use solution.

Additionally, it supports many TV formats like NTSC, PAL B/G, I, D/K, L, M, and NTV, so it can be used around the world. The device also lets you pick the RF output channel, so you can avoid interference and get a clear picture.

It is easy to set up and runs on USB power. It fits nicely into any media setup without taking much space.

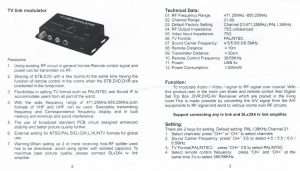

Technical Specifications

• RF Frequency Range: 471.25MHz 855.25MHz
• Channel Range: 2169
• Default Setting: Channel 21 (471.25MHz), PAL I, 38KHz
• RF Output Impedance: 75 unbalanced
• Video Input Impedance: 75
• TV Format: PAL/NTSC
• Sound Carrier Frequency: 4.5 / 5.6 / 6.0 / 6.5 MHz
• Remote Distance: Up to 10 meters
• Transmitter Distance: Up to 30 cm
• Remote Control Frequency: 38 / 56 KHz
• Power Input: USB 5V
• Power Consumption: 500 mW
