0.3 - 4MM CHUCK

Introducing the 0.3 - 4MM CHUCK, the perfect drill bit clamp for your hobby projects! Our Chuck is designed to work with 0.3mm-4mm drills and uses a JT0 connection rod to connect your motor drills securely

Drill chucks are spindle-mounted mechanisms that hold a drill or other cutting instrument. They come in keyed, keyless, and hybrid systems, allowing rapid drill bit changes. Drill Chucks are frequently linked to a machine's spindle that may be removed through a Drill Chuck Arbor.

Keyed chucks offer the advantage of applying additional torque on the bit when slippage is a concern during heavy-duty applications. When more torque is applied to the bit it makes for a very secure connection which prevents slippage.

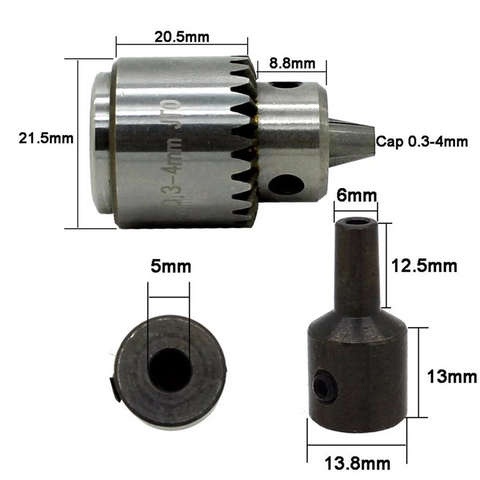

0.3 - 4MM CHUCK Dimensions

0.3 - 4MM CHUCK Specification

• 5mm Mini Electric Motor Shaft Clamp Drill Chuck for 0.3mm-4mm Drill.
• Drill Clamp JT0 Connection Rod Connect Motor Drill for 5mm Motor Shaft.
• 5mm Shaft Coupling Motor Connector
• Close-fitting with 5mm motor shaft
• for 0.3~4mm JT0 drill clamp
• Material: 45# steel
• match the motor shaft Diameter:5mm.
• Outer diameter: 21.5mm
• Work with 0.3mm-4mm (0.01 — 0.16) Drill, The maximum clamping 4.2mm
• Connection size: JT0 (inner hole diameter is 6 mm)

Documentation

• Datasheet
