Driver 20W to 100w for Led Floodlight 220V Dimmable Potentiometer **IN STOCK**
Sold

Driver 20W to 100w for Led Floodlight 220V Dimmable Potentiometer **IN STOCK**

New 3 were available
R382.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.
The seller has indicated that they will usually have this item ready to ship within 2 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
DRV760
Bob Shop ID
345246303

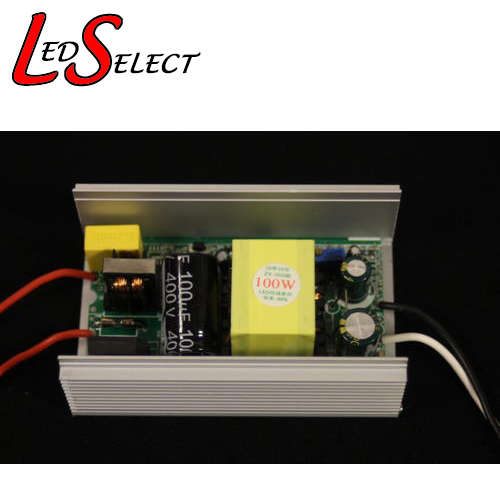

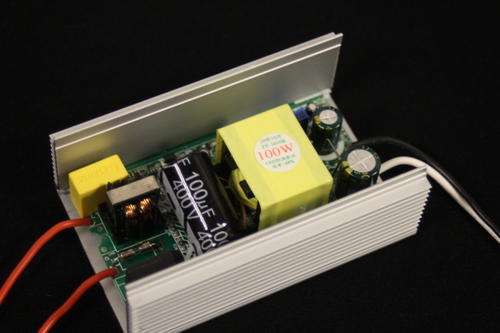

Driver 100w for LED Floodlight 220V Dimmable Potentiometer:

Specifications:

Input Voltage:
220V AC
Frequency Range:
50-60HZ
Efficiency:
> 88%
PF:
> 92%
Output Voltage:
30V ~ 36V
Current:
3.0A +/- 5%
Rated Power:
20W-100W, can be adjusted to 120W
Size:
105 x 70 x 40mm
Operating Temperature:
-20~80 Degrees Celsius

220V AC Input: 2x Red Wires

DC Output: White = Positive, Black = Negative

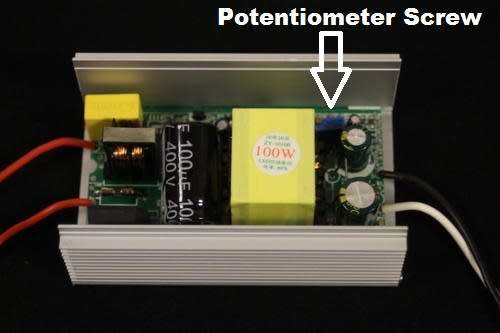

If you are going to connect a led smaller than a 100W, first connect your voltmeter and reduce the voltage to approx 15-20V by turning the potentiometer screw, then connect the led and ampmeter inline in order to measure the amp output to the led and turn up the voltage up until your amp reading corresponds to the specified forward current for the led.








Please see all our listings here:
www.bidorbuy.co.za/seller/434337/Led_Select
