Features:

• Simple step and direction control interface
• Six different step resolutions: full-step, half-step, 1/4-step, 1/8-step, 1/16-step, and 1/32-step
• Adjustable current control lets you set the maximum current output with a potentiometer, which lets you use voltages above your stepper motor's rated voltage to achieve higher step rates
• 45 V maximum supply voltage
• Built-in regulator (no external logic voltage supply needed)
• Can interface directly with 3.3 V and 5 V systems
• Over-temperature thermal shutdown, over-current shutdown, and under-voltage lockout
• Short-to-ground and over load protection
• 4-layer, 2 oz copper PCB for improved heat dissipation
• Exposed solderable ground pad below the driver IC on the bottom of the PCB

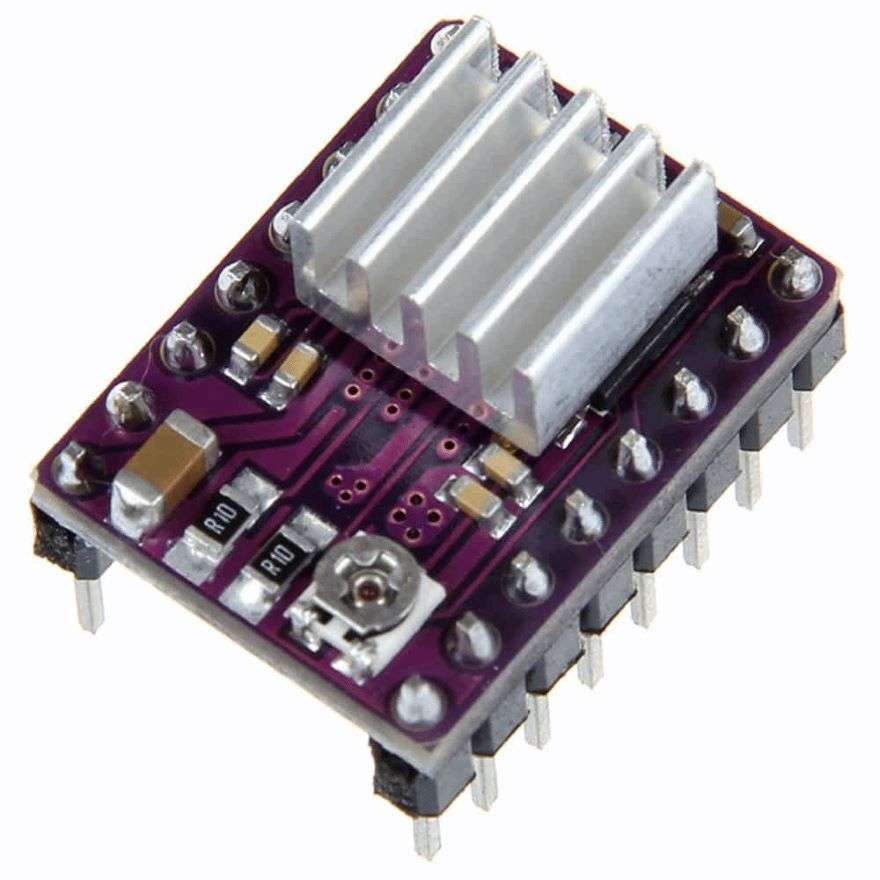

• Module size, pinout, and interface match those of the A4988 stepper motor driver carriers in most respects
