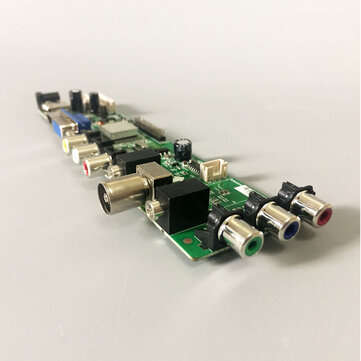

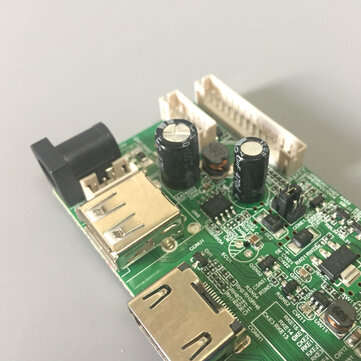

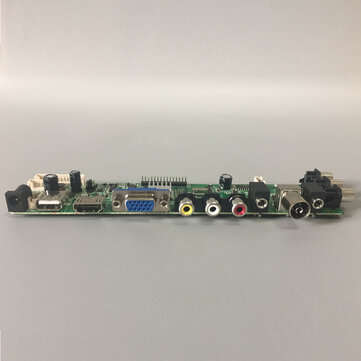

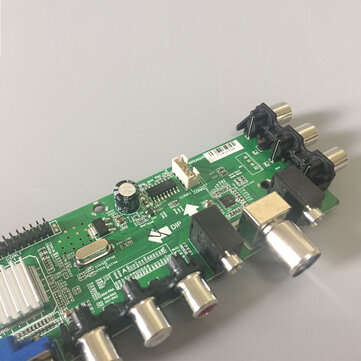

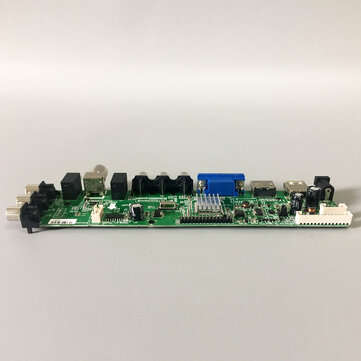

Product Description: This model is universal Controller 3663 gives the opportunity to make on the base of the laptop or monitor matrix full multimedia TV C T-2 tuner on board without depriving themselves of the opportunity of using it as a monitor. Controller 3663 has on board analog-to-digital Touraine Rafael R842 with support for T-2, DVB-T, DVB-C, ATV, by just saying support for more digital signal cable, teletext and radio TV. As main chip has allowed not only to exploit the full potential of the TV chip, but not deprived of the possibility of reproducing a photo, video, audio files from a USB drive. All the innovations introduced in this model is made possible by the use of a more powerful master chip. Suitable for Europe, Africa, The five Central Asian countries, the Middle East, Russia, Thailand, Myanmar, Kenya, Portugal, Malta, Uganda and other countries or regions.?
Feature: Support Digital Signal and Russian Controller chip: LUA63A82 TV tuner chip: Rafael R842 OSD Language: Russian, English, Czech, France, Magyar, Polski, Dansk, Espanol, Hrvatski, Nederlands, Deutsch, Italliano, Norsk, Portugues, Suomi, Svenska, Arabic, etc. (more pls check the video) Power Input: DC 12V 4A Chip Audio:? Audio output power: 2x8W Consumption: operating mode -> = 6W ? ? ? ? ? ? ? ? ? ? ?simple - <0.3W Video input: TV: DVB-T / T2, DVB-C, ANALOG TV (ATV) ? ? ? ? ? ? ? ? ? ? ? ? HDMI ? ? ? ? ? ? ? ? ? ? ? ? VGA ? ? ? ? ? ? ? ? ? ? ? ? AV IN Additional inputs outputs: audio mini jack 3.5mm USB USB slot can be used for updating software and playing multimedia, such as Movie, MP3 and JPEG. Doesn`t support audio AC3 720P, If the sound doesn`t play via USB, You can recode the audio track.
How to know if your panel suitable for this board?
Find your LCD model`s resolution (you can check the resolution from this link:?
How to use:
Step 1: Make sure your LCD screen and screen cable are compatible Step 2: Write the corresponding resolution firmware Step 3:?Adjust the screen as needed
Supported resolutions: 1024 X 600 6 bit 1 channel 1024 X 768 6-bit 2 channel 1024 X 768 8-bit 2 channel 1024 X 768 6-bit 1 channel 1024 X 768 8-bit 1 channel 1280 X 768 8-bit 1 channel 1280 X 800 6-bit 1 channel 1280 X 1024 8-bit 2 channel 1366 X 768 8-bit 2 channel 1366 X 768 8-bit 1 channel 1400 X 1050 6 bit 2 channel 1440 X 900 8 bit 2 channel 1600 X 900 8-bit 2 channel 1600 X 1200 6-bit 2 channel 1680 X 1050 8-bit 2 channel 1920 X 1080 8-bit 2 channel 1920 X 1080 6-bit 2 channel
Step of USB upgrade: ? 1. Put the firmware of 3463GU_A.bin in formatted USB flash disk ,then insert the USB disk and the 7KEY-Button to the board 2. After turn on the power, the light of the 7key button will be Red then flash red and blue, after about 1 minute, the light stop flashing ,it means upgrade has finished. (Note that write programs do not power outages, crashing won`t be able to use)?? ?
How to into Factory setting? PressInput button then press2 5 8 0

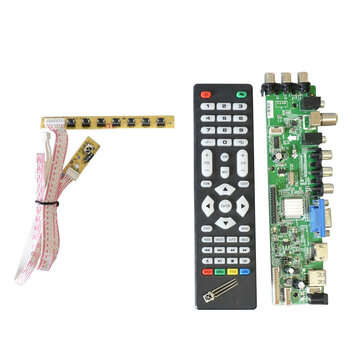

Package includes: 1 x Driver board 1 x Remote control 1 x Keyboard
