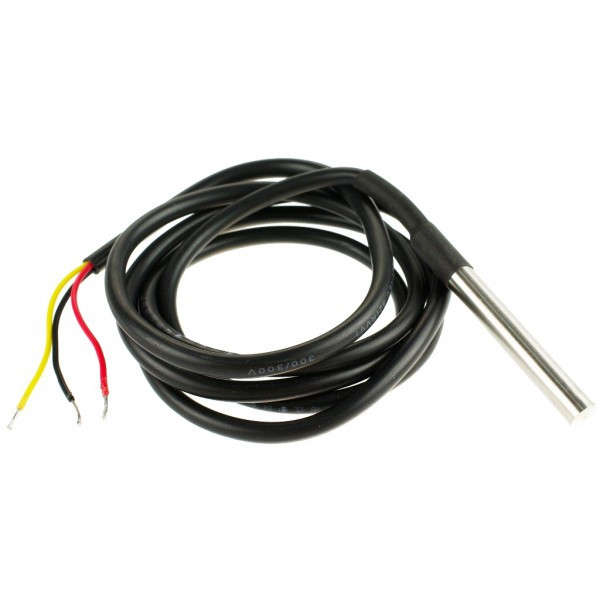

DS18B20 Digital temperature Probe

Introducing the affordable Waterproof DS18B20 Digital Temperature Probe. The detector uses the imported brand-new DS18B20 temperature sensor chip,each pin of which is separated

by heat shrinkable tube,to prevent short circuit and internal sealing glue,water proof and moisture proof. High quality stainless steel tube package,water proof,moisture proof and rust proof. Each detector is single packaged after strict test.

ᅡᅠ

Specification:
ᅡᅠ

  • ᅡᅠᅡᅠᅡᅠ Usable with 3.0V to 5.5V power/data
  • ᅡᅠᅡᅠᅡᅠ ᅡᄆ0.5ᅡᄚC Accuracy from -10ᅡᄚC to +85ᅡᄚC
  • ᅡᅠᅡᅠᅡᅠ Usable temperature range: -55 to 125ᅡᄚC (-67ᅡᄚF to +257ᅡᄚF)
  • ᅡᅠᅡᅠᅡᅠ 9 to 12 bit selectable resolution
  • ᅡᅠᅡᅠᅡᅠ Uses 1-Wire interface- requires only one digital pin for communication
  • ᅡᅠᅡᅠᅡᅠ Unique 64 bit ID burned into chip
  • ᅡᅠᅡᅠᅡᅠ Multiple sensors can share one pin
  • ᅡᅠᅡᅠᅡᅠ Temperature-limit alarm system
  • ᅡᅠᅡᅠᅡᅠ Query time is less than 750ms
  • ᅡᅠᅡᅠᅡᅠ 3 wires interface:
  • ᅡᅠᅡᅠᅡᅠ Type A
  • ᅡᅠᅡᅠᅡᅠ Red wire - VCC
  • ᅡᅠᅡᅠᅡᅠ Black wire - GND
  • ᅡᅠᅡᅠᅡᅠ Yellow wire - DATA
  • ᅡᅠᅡᅠᅡᅠ Stainless steel tube 6mm diameter by 35mm long
  • ᅡᅠᅡᅠᅡᅠ Cable diameter: 4mm
  • ᅡᅠᅡᅠᅡᅠ Length: 1m cable
