DS202 Nano ARM Mini Handheld TFT Display Digital Storage Oscilloscope

2015 Newwest DS202 Naro ARM mini oscilloscope arrival ~
Description :
DS202 Nano ARM Mini Handheld TFT LCD Display Digital Storage Oscilloscope
Features :
This pocket size oscilloscope is a 2-channel digital oscilloscope.
You will find it compact and fashionable because it is merely 10mm talland enjoys an aluminum alloy appearance.
It has a touch screen with 320 x 240 color display.
It supports SD card USB flash disk storage and USB charging.
It is widely applicable inacademic experiment, electronicsmaintenance, electronic engineering tasks, etc.
Specifications :
-   Analog bandwidth : 1MHz
-   Max sample rate : 10MSa / s
-   Max sample memory depth : 8K
-   Analog input impedance : 1MΩ
-   Max input voltage : ±40V( X1 probe)
-   Coupling : for AC / DC
-   Vertical Sensitivity : for 20mv / Div - 10V / Div (stepping in by 1-2-5mode)
-   Horizontal sensitivity : 1uS / Div - 2S / Div(1-2-5stepping)
-   Math waveforms : –A, -B, A+B, A-B, RecA, RecB, RecC
-   Triggering Mode : for Auto, for Normal, for Single, for None, for Scan
-   Rising / Falling for Edge Trigger
-   Vertical precisefor, Horizontal Precise Measurement
-   Waveform Functions Auto measurement : frequency, cycle time, duty cycle, peak voltage, for RMS voltage, for Average voltage and fot DC voltage
-   Signal Generator / 10Hz - 1MHz square wave (duty adjustable) or 10Hz - 20Khz Sine / Square / Triangle / Sawtooth wave
-   U disk Waveform storage of 8MB, can store waveform data and waveform image
-   Power supply internal 550mAh Lithium battery / external USB port
-   Display Full Color TFT LCD (320 x 240 pixels)
-   Capacitive touchscreen : support input by finger sliding

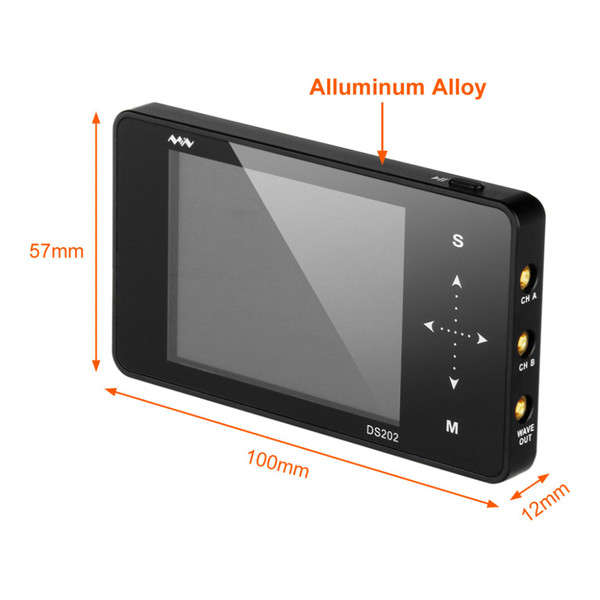

-   Dimension (100mm x 56.5mm x 10.7mm)
Temperature :
-  Operating Conditions : 0°C  to - 50°C
-  Non-operating Conditions : -20°C  to - 60°C
   Humidity :
-  Operating Conditions : High Temperature : 40°C - 50°C, 0% to 60%RH
-  Operating Conditions : Low  Temperature : 0° C - 40°C, 10% to 90%RH
-  Non-operating Conditions : High Temperature : 40°C - 60°C, 5% to 60%RH
-  Non-operating Conditions : Low  Temperature : 0° C - 40°C, 5% to 90%RHNote :
Do not plug / unplug when the probe or the test lead is connected to the voltage source.
Before you plug / unplug current probes, please disconnect power to the circuit under test.
Observe all terminal ratings.
To reduce risk of fire, electric shock and device damage, please do not measure signalsat DC40V or above.
Do not operate in a humid environment, potentially inflammable, explosive atmosphere.
Package includes :
1 x DS202 Nano ARM Mini Handheld Ocilliscope

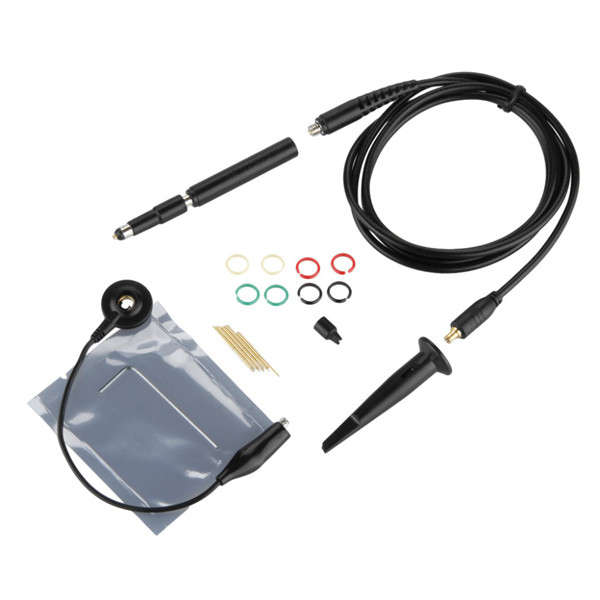

1 x Full Accessories Set As Following Pictures Show
1 x English User Manual

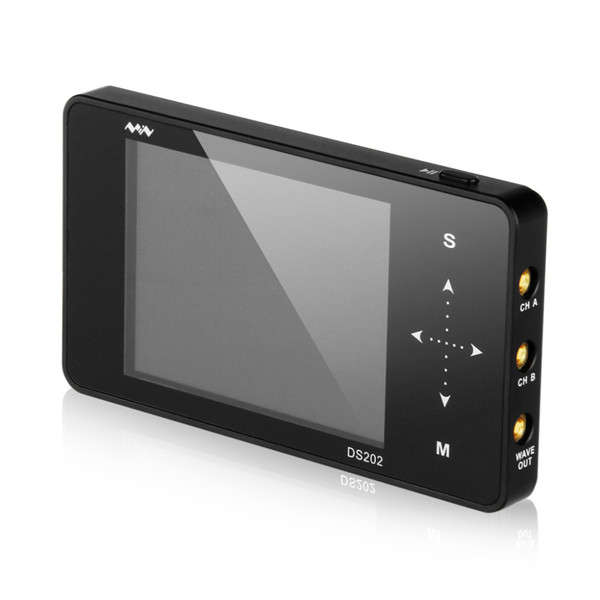

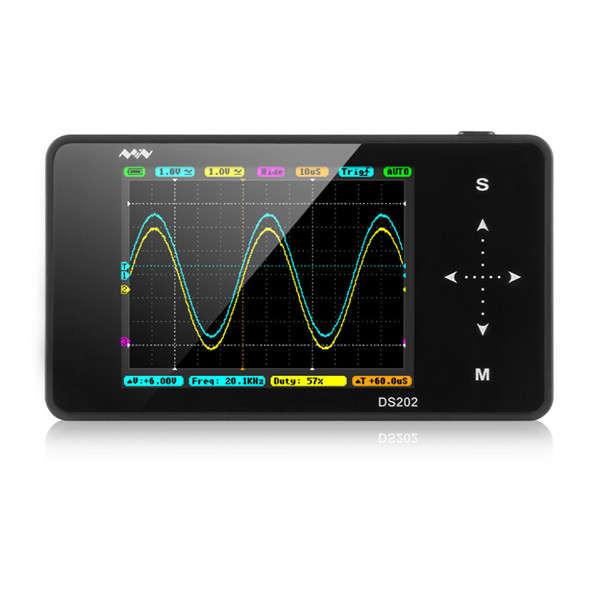

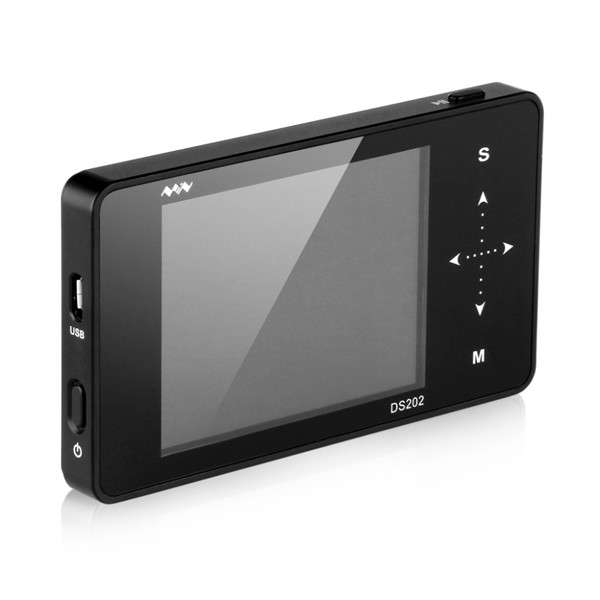

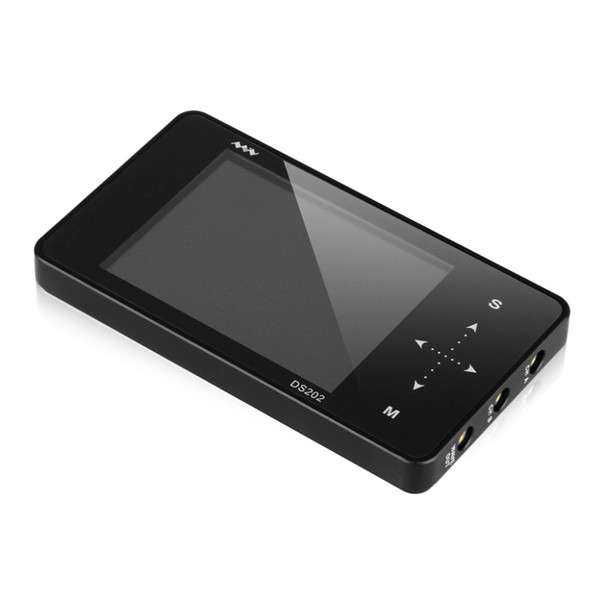

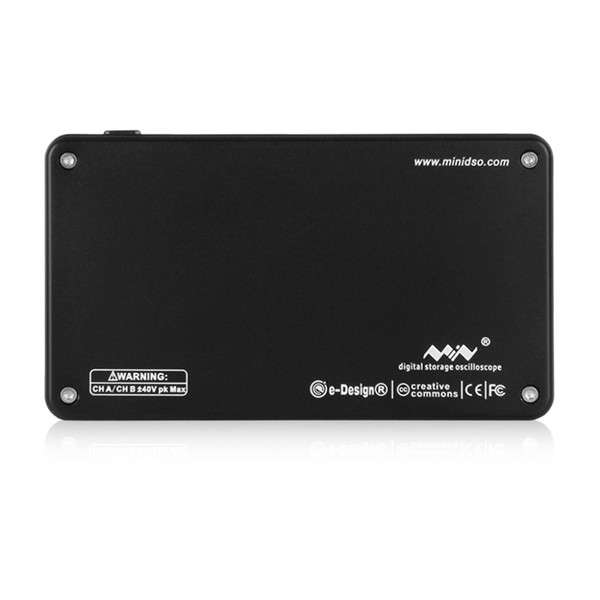

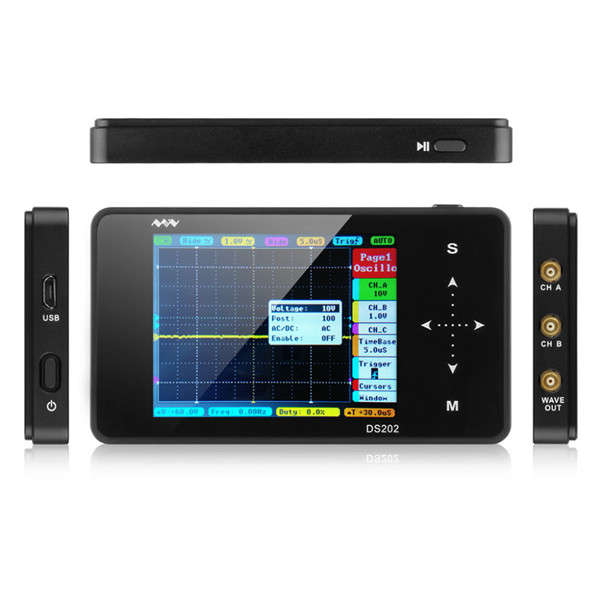

Details pictures :
