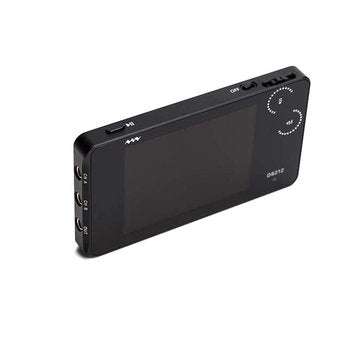

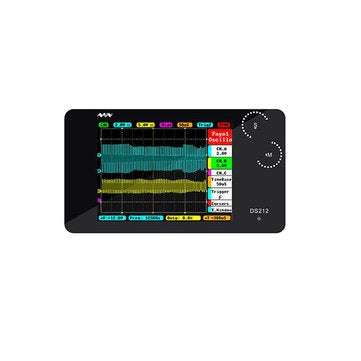

DS212 Digital Storage Oscilloscope Portable Nano Handheld Bandwidth 1MHz Sampling Rate 10MSa/s Thumb

Features: With thrumbwheel adjust key Pocket-sized digital storage oscilloscope meets basic electronic engineering requirements. Dual trace three lines, new kind of system interface, capacitive convenient operation. You can easily operate it with the gestures of one-click, double-click, press and slide. The aluminum shell is very fashionable equipped with 320*240 color display, 8M Memory card (USB flash disk), and chargeable Lithium batteries. The thickness is about 11 mm/ 0.43 inch only! The volume is small enough to take it anywhere. It can meet the demands in many fields, such as, school experiments, electronic repairing, and electric engineering. Specifications: Model: DS212 MCU: STM32F303VC ADC: MCU internal ADC Channels: 2 analog channels, 1 operation channel Analog Bandwidth: 1 MHz Max Sample Rate: 10 MSa/s Max Sample Memory Depth: 8K Horizontal Sensitivity: 1uS/div to 2S/div (1-2-5 step) Vertical Sensitivity: 20mV/div to 10V/div (1-2-5 step) Analog Input Impedance: 1 M Coupling: DC/AC Trigger Mode: ascend/descend edge trigger mode Math Waveforms: -A, -B, A+B, A-B, RecA, RecB, RecC Inbuilt Signal Generator: sine/square/triangle/sawtooth wave Synchronous Mode: auto, normal, single, none, scan value/average Storage: 8 MB flash disk memory APP Installed: 2 Operation: Button, Wheel button USB Port: Micro USB Battery: 500 mAh Screen Type: TFT LCD Screen Size: 2.8 Screen Resolution: 320 x 240 Dimension: 100 x 56.5 x 10.7 mm Weight (with battery): 90 g Open Source: application layer open-source Package Includes: 1x DS212 Mini Oscilloscope 1x Battery(built in) 2x Probes(with X1X10) 1x MicroUSB 1x Hex Key 1x Safety Instruction
Note: the package Includes has been updated on 2019.6.27th.
