DSO138 2.4" TFT Handheld Pocket-size Digital Oscilloscope Kit DIY Parts Electronic Learning Kit..!

DSO138 2.4" TFT Handheld Pocket-size Digital Oscilloscope Kit DIY Parts Electronic Learning Kit (Red)..!

Product Information

DESCRIPTION

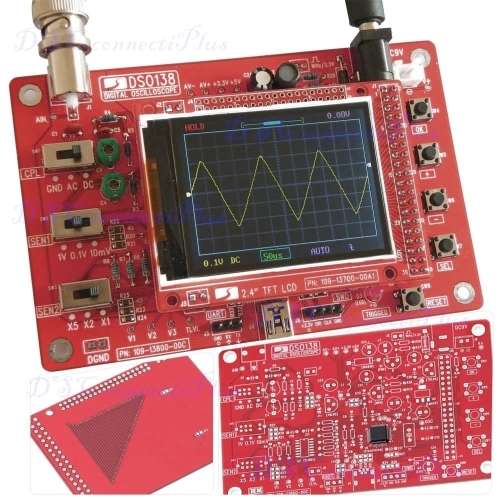

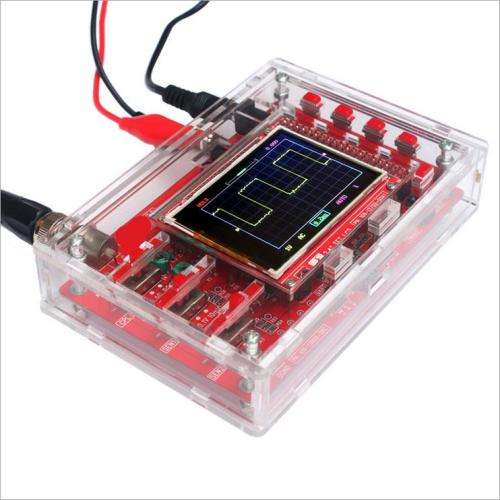

This DSO138 digital oscilloscope kit adopts ARM Cortex-M3 processor and with 2.4-inch TFT screen.
It's easy and reliable for circuit operation. It can display frequency, period, pulse width, duty
ratio, MAX./MIN./AVG./Peak-Peak/virtual values.

FEATURES

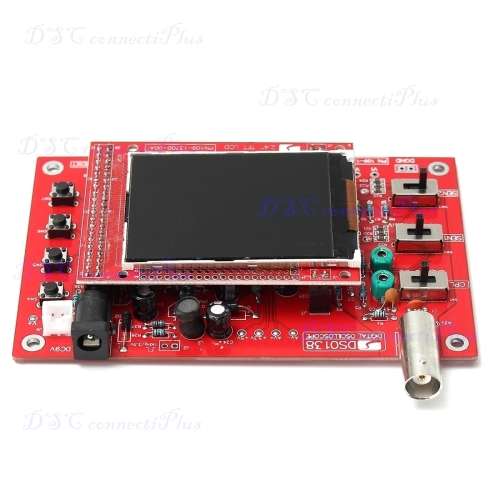

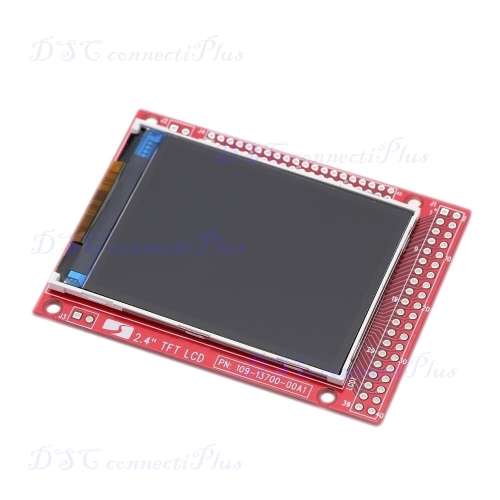

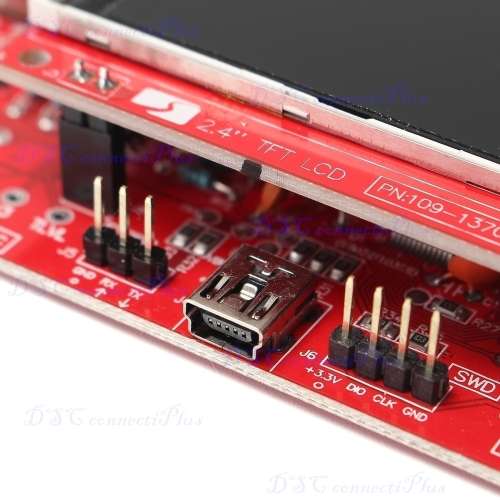

This kit uses ARM Cortex-M3 processor (STM32F103C8), and includes a 2.4-inch color TFT display screen
Can be used as ARM test development board.
Can be secondary development on the basis of this kit, for example, it can be changed to Millivoltmeter, data loggers.
Adjustable vertical displacement, and with instructions.
With automatic, regular and one-shot modes, easy to capture the moment waveform.
Available rising or falling edge trigger.
Observable previous trigger waveform (negative delay).
Can freeze at any time waveform display (HOLD function).
Comes 1Hz /3.3V square wave test signal source.
With waveform parameter digital display, including frequency, period, pulse width, duty ratio, MAX./MIN./AVG./Peak-Peak/virtual values.

Note:

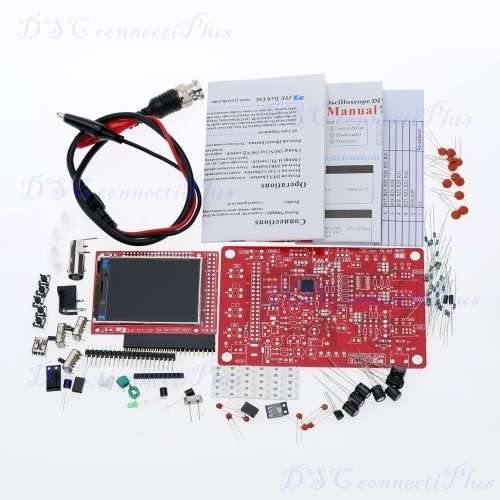

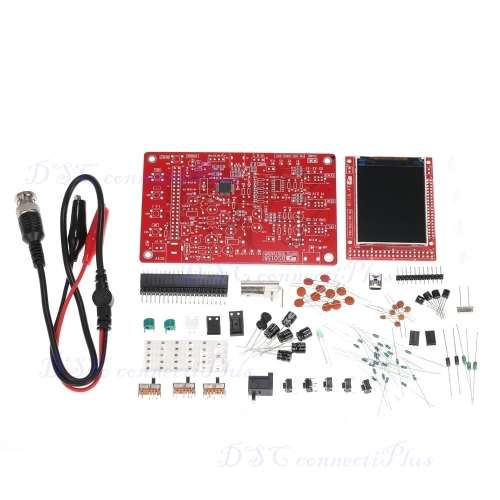

This DIY kit is not soldered yet!

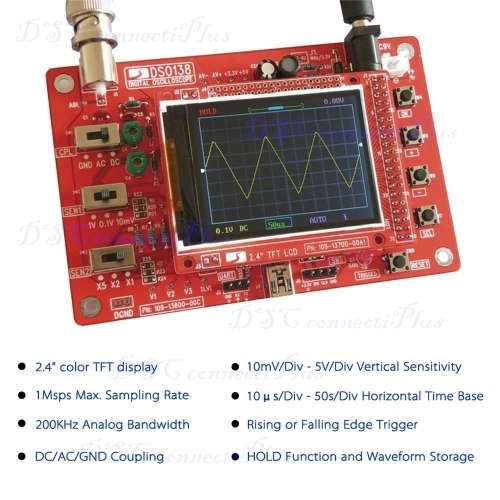

SPECIFICATIONS

Maximum Real-time Sampling Rate: 1Msps
Accuracy: 12Bit
Sampling Buffer Depth: 1024 bytes
Analog Bandwidth: 0-200KHz
Vertical Sensitivity: 10mV / Div - 5V / Div (1-2-5 progressive manner)
Input Impedance: 1MΩ
Maximum Input Voltage: 50Vpp (1: 1 probe), 400Vpp (10: 1 probe)
Coupling Modes: DC / AC / GND
The Horizontal Time Base Range: 10μs / Div - 50s / Div (1-2-5 progressive manner)

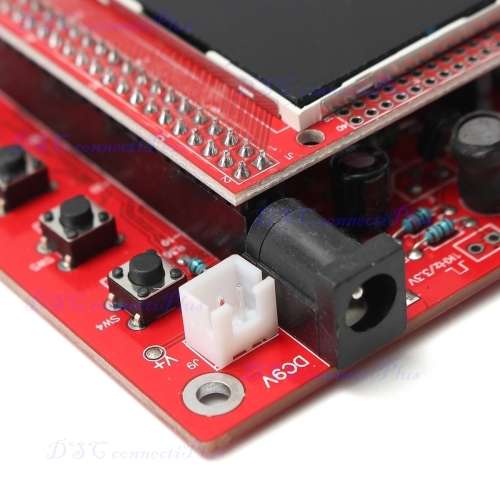

Supply Voltage: DC 9V

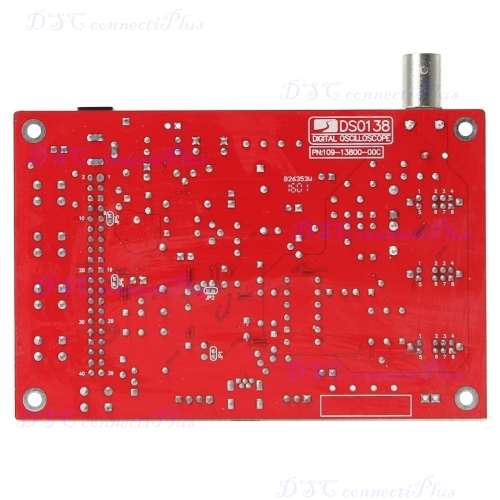

PCB Size: 117 * 76mm / 4.6 * 3in
Screen Size: 52 * 40mm / 2 * 1.57in
Package Size: 18 * 12.5 * 3cm / 7.08 * 4.92 * 1.18in
Package Weight: 119g / 4.21oz

PACKAGING

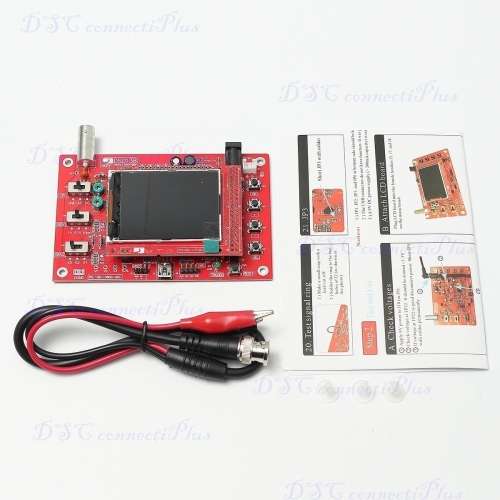

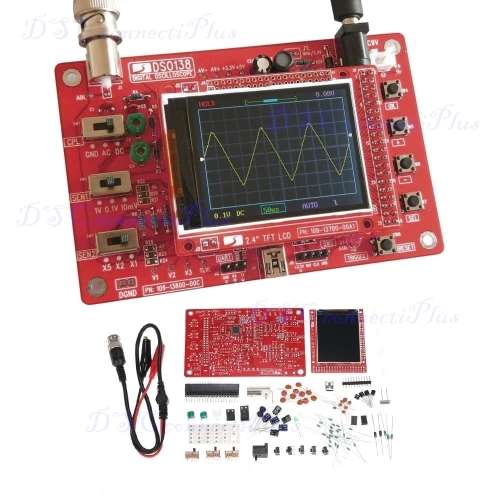

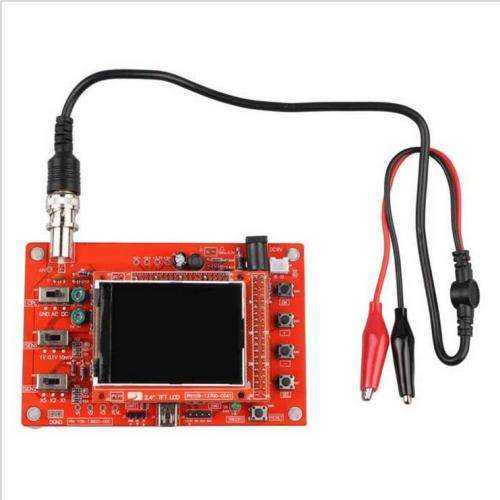

1x DSO138 DIY Digital Oscilloscope Set (case not included)

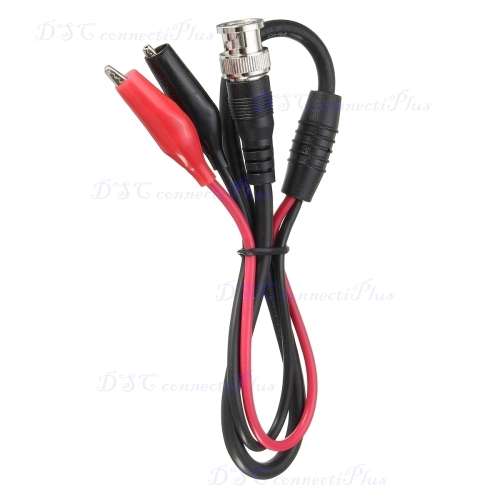

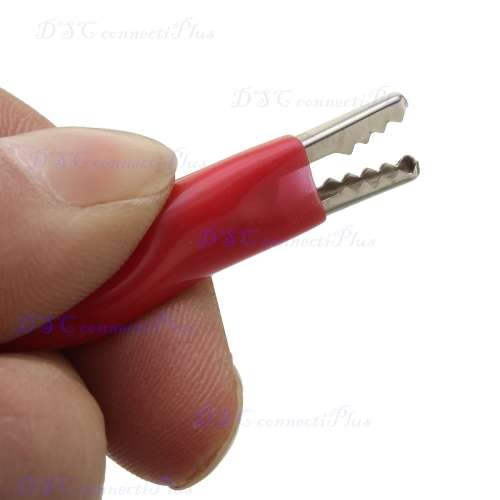

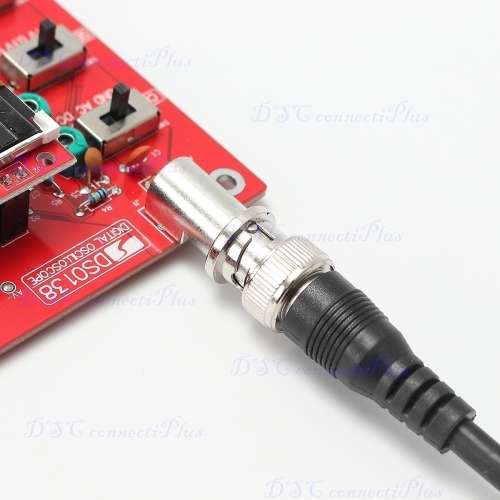

1x Test Probe
