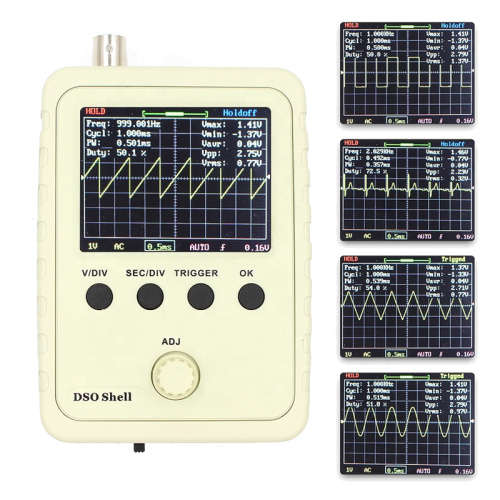

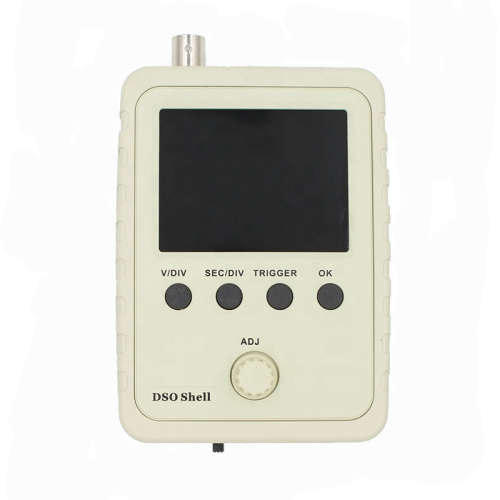

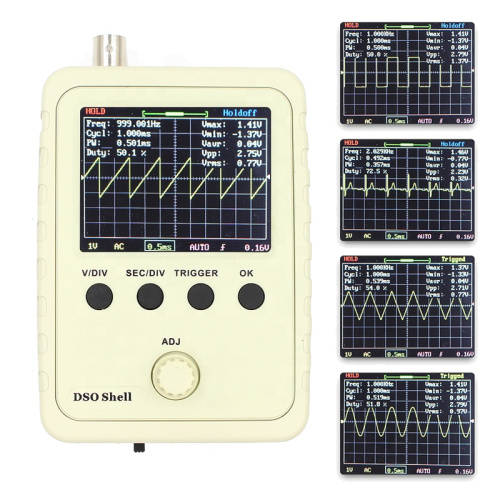

DSO150 Basic Single-Channel Oscilloscope

Basic Digital Single-channel Oscilloscope for Students & Hobbyists

This basic single-channel digital Oscilloscope will enable you to measure your electronic circuits independently, offering 200kHz analogue bandwidth, 1MSPS sampling speed and 12-bit resolution.  Ideal for learners and students just starting out in Electronics and for schools to put an oscilloscope on each learners workstation.
We have made some short instruction videos to get you started on operating the DSO150 Student Oscilloscope.

Features:

• Bandwidth: 1MHz
• Analog Bandwidth: 0~200KHz
• 1 Channel
• Sampling Speed: 1MS/s
• Sensitivity: 5mV/div ~ 20V/div
• Timebase Range: 500s/Div ~ 10us/Div
• 12-bit Resolution
• Max input Voltage: 50Vpk (x1 probe)
• Input Impedance: 1M ohm/20pF
• Record length: 1024 points
• Trigger Modes: Auto, Normal, Single
• Trigger Position: Centre of buffer
• Max Signal Input Voltage:  50Vpk (100Vpp) with the clip probe
• Power Supply Voltage: 9VDC (must not exceed 10V)
• Current Consumption: ~120mA @ 9V
• Dimensions: 105 x 75 x 22mm
• Weight: 100g


Oscilloscope Package Includes:

DSO150 Oscilloscope, 1x Crocodile-clamp Cable, 9V Battery connector, User Manual.

Please note: We keep local South African stock and can courier on payment.
