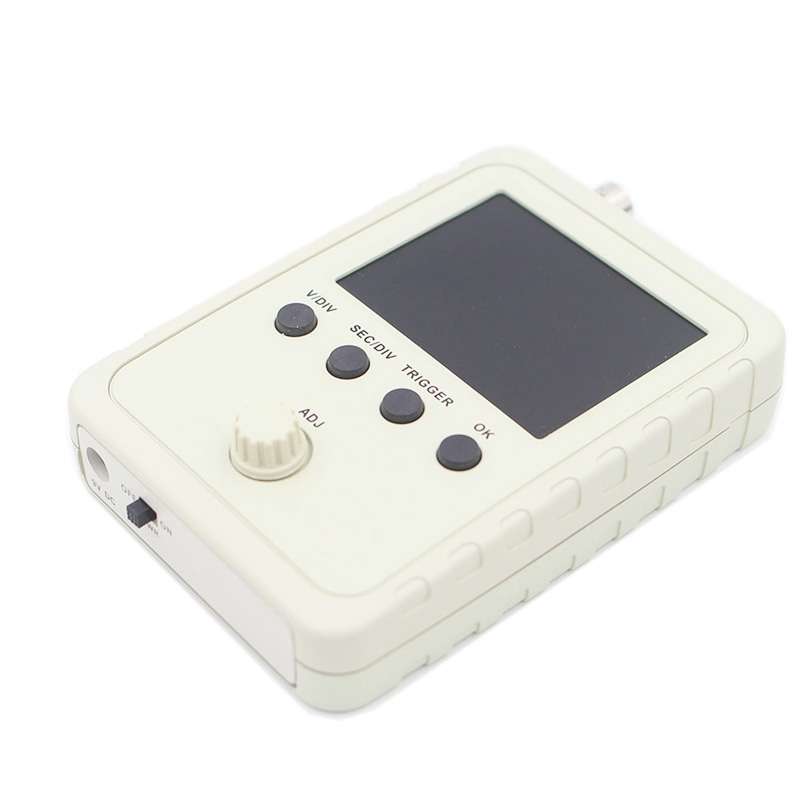

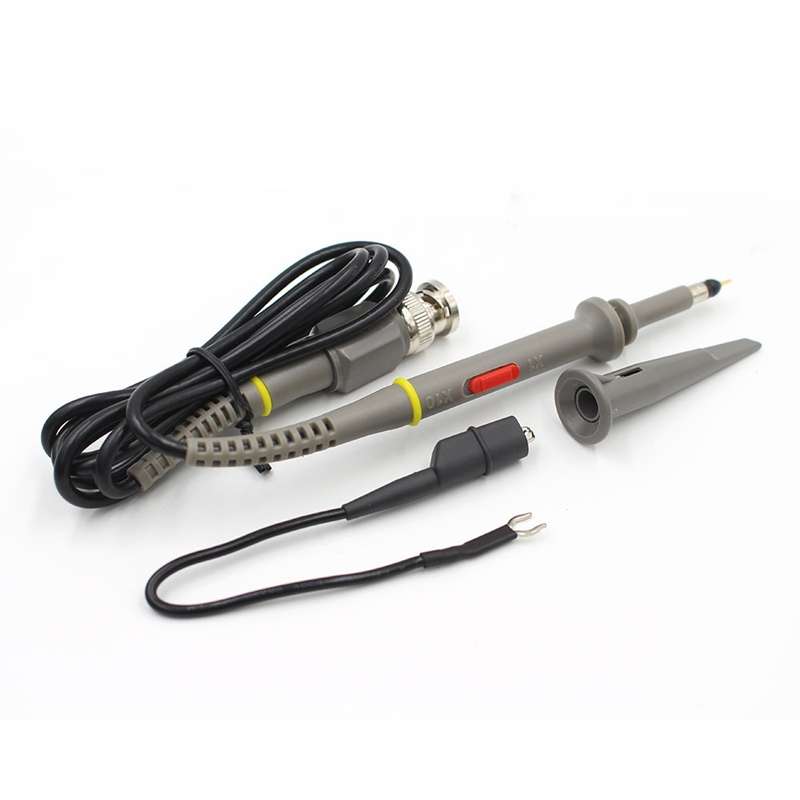

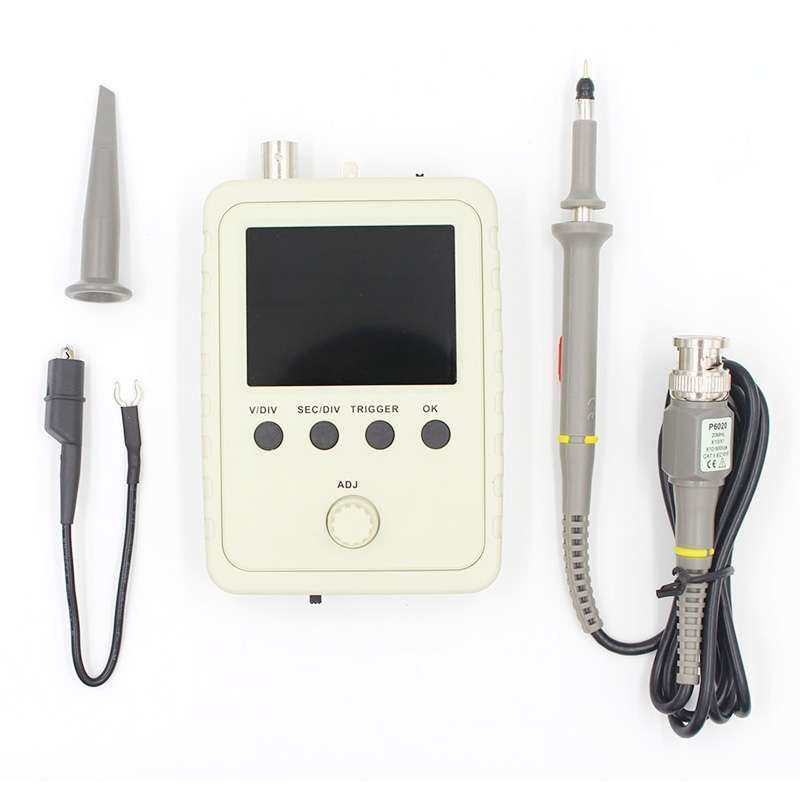

DSO150 Shell Oscilloscope Kit with BNC Probe

1. Highest real-time sampling rate: 1Msps
2. Accuracy: 12Bit
3. Sampling buffer depth: 1024 bytes
4. Analog band width: 0-200KHz
5. Vertical sensitivity: 5mV / Div ￢ﾀﾓ 20V / Div (progressive in 1-2-5 way)
6. Adjustable vertical displacement with instructions
7. Input impedance: 1Mￎﾩ
8. Maximum input voltage: 50Vpp (1: 1 probe), 400Vpp (10: 1 probe)

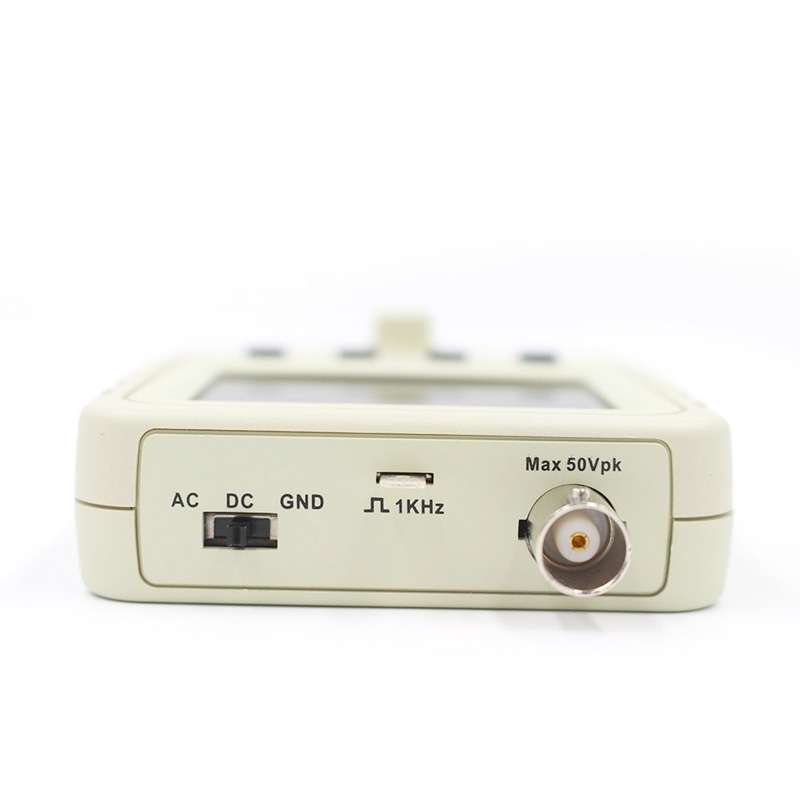

9. Coupling methods include: DC / AC / GND
10. Horizontal time base range: 10ￎﾼs / Div ￢ﾀﾓ 50s / Div (progressive in 1-2-5)
11. Trigger mode: With automatic, regular and single shot, easy to capture instantaneous waveform
12. Trigger on rising or falling edge
13. Trigger level position is adjustable, with indication
14. Observe waveform before trigger (negative delay)
15. Freeze waveform display at any time (HOLD function)
16. Signal source: Comes with 1KHz /3.3V square wave test
17. The parameters that can be displayed are: frequency, period, pulse width, duty cycle, maximum value, minimum value, average value, peak-to-peak value, and effective value.
18. Save / recall waveform, the waveform does not disappear after shutdown
19. Packing list:
20. 15001K (SMD components are soldered)
