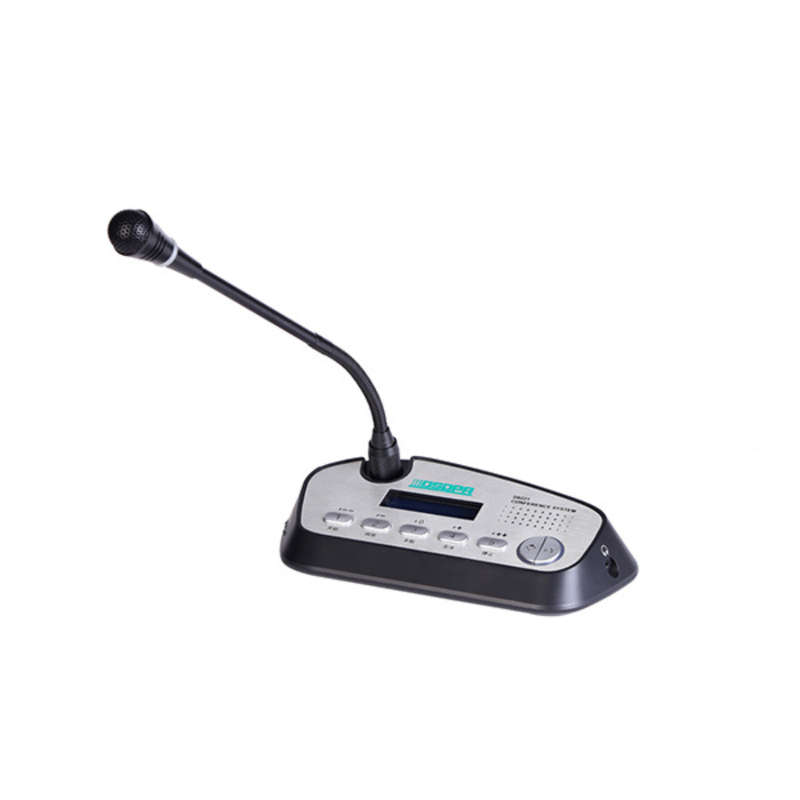

DSPPA D6222

D6222 belongs to the conference room audio system, it is a desktop delegate speech/vote unit that provides functions such as speech, vote, check-in and self-checking. It adopts a goose-neck microphone, built-in magnetic loudspeaker, and headphone jack, and also provides power-on indicating light and button and light indicators.

In VOICE mode, it can realize the voice controller on/off function. It has high-speed digital processors and HiFi audio circuits and can indicate the work status of the LCD screen. Conference units are passive equipment and are powered by controllers. The input voltage is 24V; they are easy to use, with a clear voice and easy to install with a fashionable appearance.

Key Features

• Speech and voting functions integrated
• Built-in magnet HiFi speaker
• High-brightness LCD screen
• 5 vote buttons are available
• Conference check-in function
• Automatic camera tracking function when used with the camera
• Removable goose-neck.
• Goose-neck length: 315/320/415/430 mm
• Black/silver colours are available

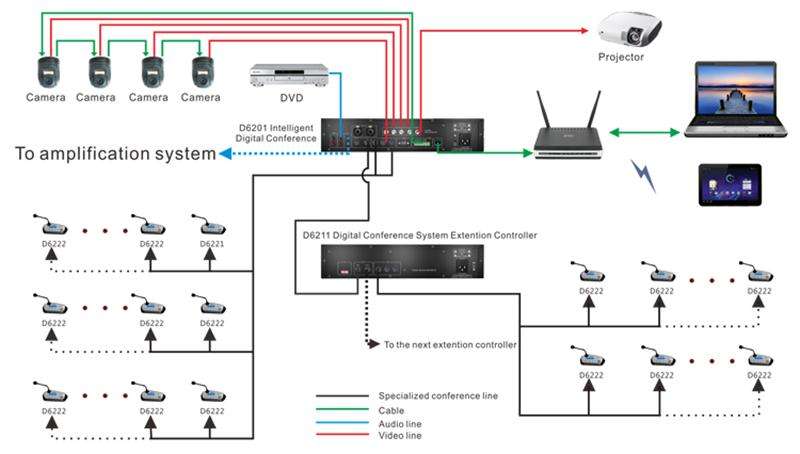

Connection

General Specifications

• Model: D6222
• Structure and Type: Desktop
• Output Frequency Response: 45Hz-18kHz-3dB
• Speaker Power: 1.5W
• Static Power Consumption: <1W
• Max. Power Consumption: 2W
• SNR: >80dB
• Crosstalk Attenuation: >80dB
• Harmonic Distortion: <0.5%
• Headphone Output: 9dBu, 8-32, 3.5mm
• Working Power Supply: DC 24V power supply
• Port On The unit: 8pin DIN socket
• Microphone
  • Type of Microphone: Electret, heart-shaped, condenser type
  • Frequency Response: 40Hz-20kHz-3dB
  • Sensitivity: -45dBV/pa
  • Input Impedance: 2k
  • Equivalent Noise: 20dB (SPL)
  • Max SPL: 125dB (THD<3%)
