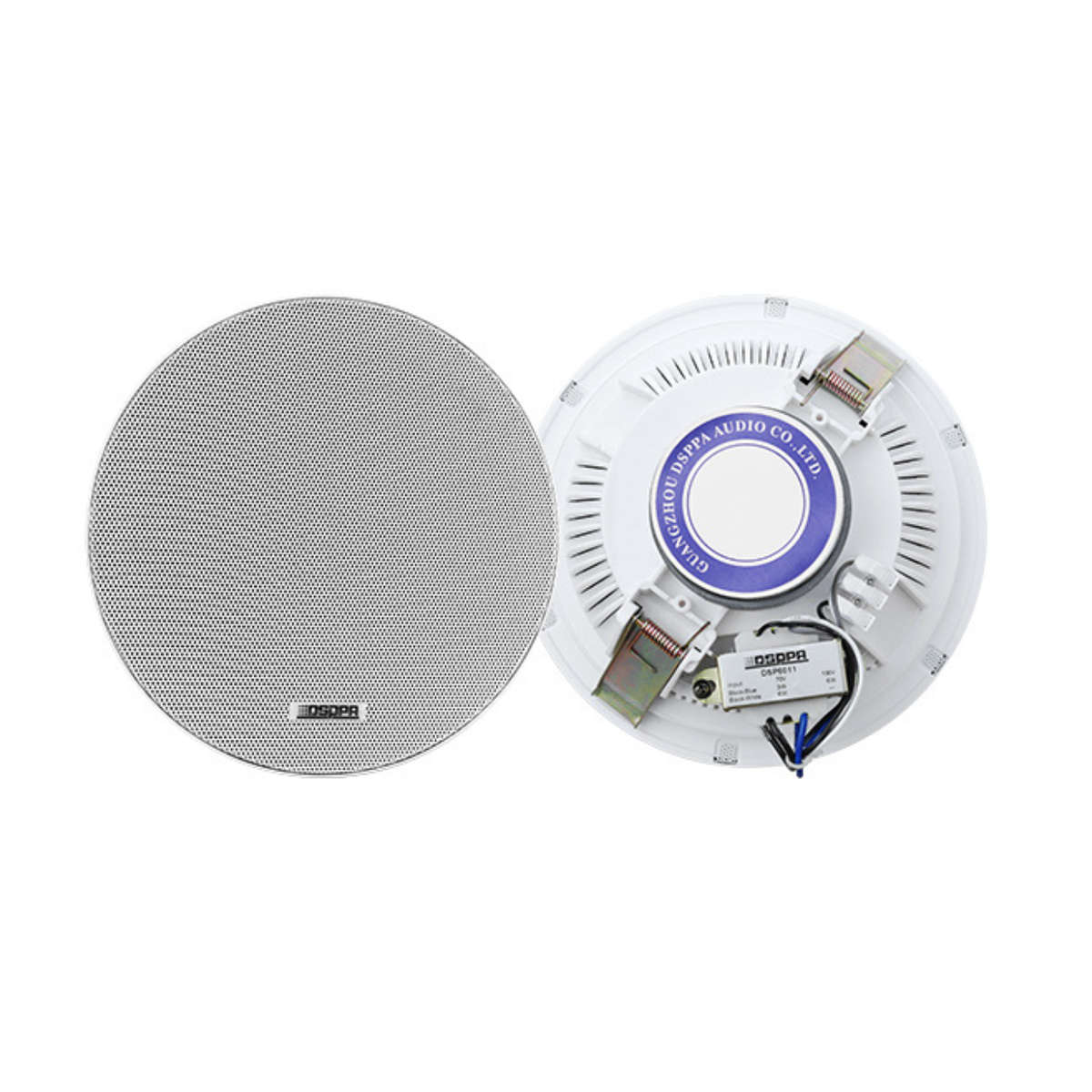

DSPPA DSP6011

The DSP6011 is a surface mount ceiling speaker with a 70v/100v transformer built in. The 70v/100v transmission is realized in a high-voltage, low-current mode, which makes longer distance transmission and parallel connection of multiple loudspeakers possible.

It's easy to install with a strong clip, and made of high-quality engineering plastic, which is durable, non-deformable, and non-fading. It is an ideal choice for these places, such as schools, gymnasiums, square halls, parks, parking lots, railway stations, airports, villa communities, and mall supermarkets, etc.

Features

• Rated power at 6W, 6.5" Speaker unit
• Wide Freq. Response 90-20kHz, Max SPL103dB±2dB
• Sensitivity 95dB±2dB, THD< 1.5%

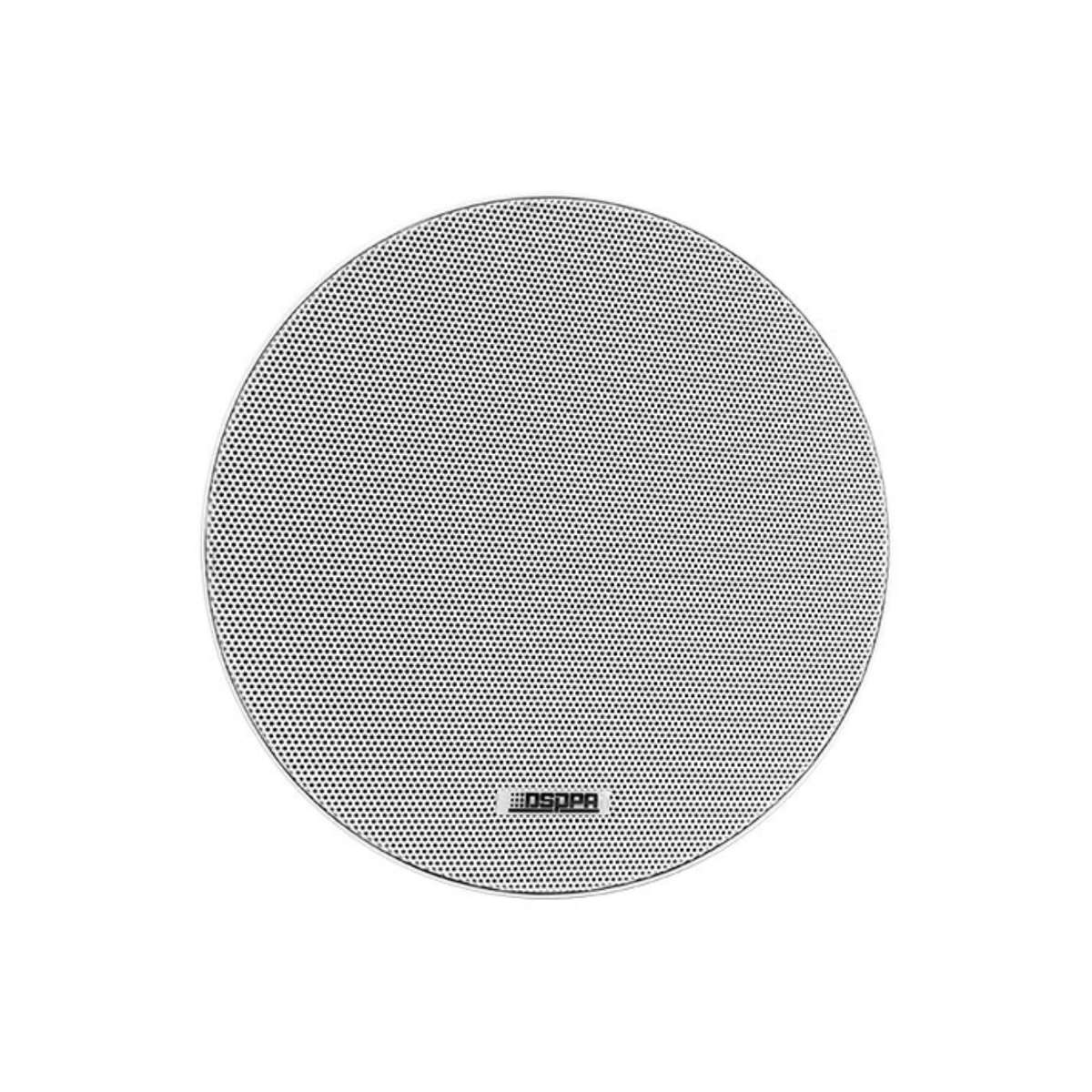

• Frameless aluminum mesh, never rust

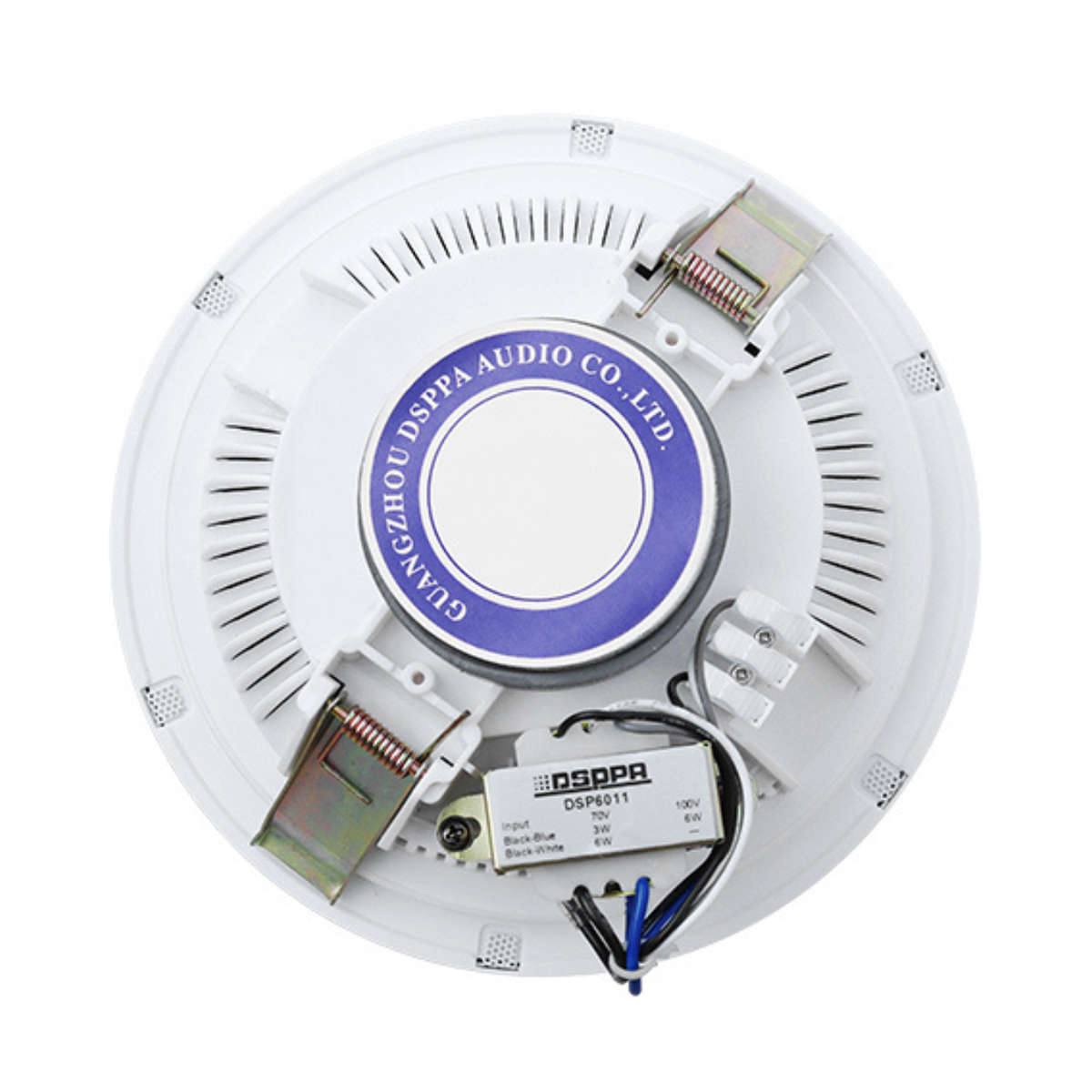

• Three speaker line terminals, support different power
• 20 cores magnetic steel, ensure the high-quality sound effect
• High-quality plastic mould, durable, stable, and unfading
• Damping for dangling edge, work continuously for 100 hours

General Specifications

• Freq. Response (-10dB):  90 Hz -20,000Hz
• Sensitivity:  95±2dB
• Max SPL:  103±2dB
• Input Voltage:  70V/100V optional
• RMS:  6W
• Dimension:  185mm×74mm
• Weight:  0.9kg
