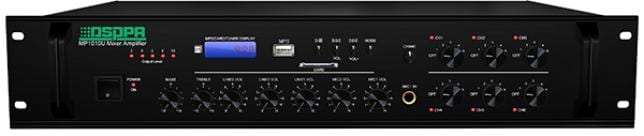

DSPPA MP 1010U

This mixing amplifier is rated at 350W. 100V and 4-16 Ohm speaker output are provided. There are 3 unbalanced microphones inputs and 3 aux inputs. Bass and treble controls and master volume control are provided. This amplifier can be applied to different occasions, such as supermarket, classroom, etc. Extensive protection from short-circuit, overload and high temp is ensured. Automatic cooling system ensures the extreme quite sound system.

Specifications:

• 100V and 4-16 Ohm, rated power 350W
• 2 microphone inputs, Mic 1 with priority and muting function
• 3 aux line input and 1 aux line output
• Short circuit, overload and high temp protection
• Bass and treble control.
• Model
• MP1010U
• Rated output
• 350W
• Speaker output
• 70V, 100V and 4-16 ,
• Input sensitivity
• MIC: 3.0mV(0.5mV) LINE: 300mV(50mV)
• Frequency response
• 80Hz-16kHz (3dB)
• Distortion
• Less than 1% (at 1kHz, 1/3 rated output voltage)
• The ratio of signal to noise
• MIC: more than 71dB LINE: more than 85dB
• Protection
• DC voltage; overload; short-circuit.
• Power requirements
• AC 220V-240V/50Hz-60Hz
• Power consumption
• 650W
• Outer Packing Size (mm)
• (L W H)520 430 195
• Unit Size (mm)
• (L W H)418 338 88
• Gross weight
• 17kg
• Net weight
• 17kg
