DSPPA WH706A

Name: DSPPA WH706A
SKU: DSPP-WH 706A
Price: 465.00 ZAR
Availability: InStock

10 available / new

R465.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

BounceOnline205

98.25 % Positive ratings

Buyer protection

How you're covered

Get it now, pay later

Product details

Condition

New

Location

South Africa

Product code

DSPP-WH 706A

Bob Shop ID

610112934

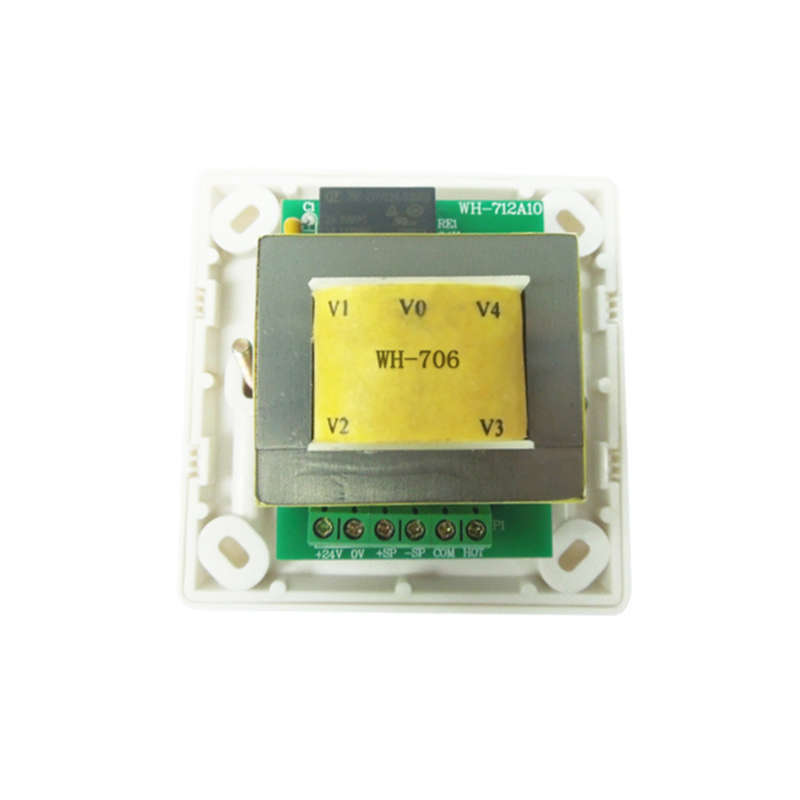

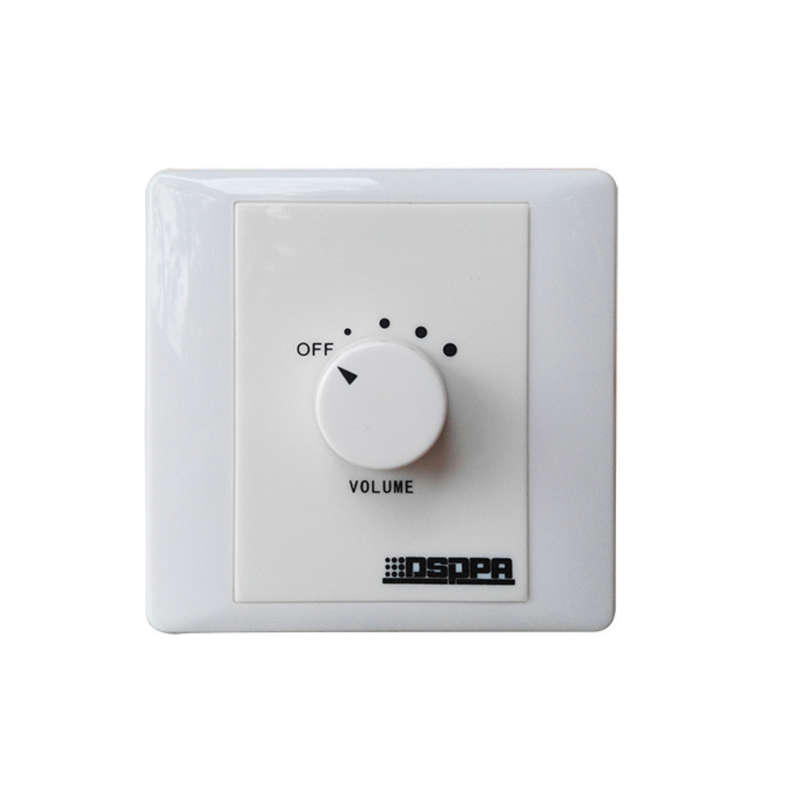

WH-706 override volume controller is a high-power volume controller with a 24V override function for audio conferencing system.

Features

With override function, fire fighting linkage.
The power of the volume controller is 60W.
5 gear volume adjustment.

General Specifications

Model: WH-706
Type: Five Gear Volume Control
Rated Power: 60W
Override Signal: 24V DC 10mA
Gear Output (Input 1KHZ/100V,Load=82,distortion degree<1%):
- STEP: 0Voff
- STEP 1: 13(±2)V
- STEP 2: 26(±2)V
- STEP 3: 51(±2)V
- STEP4: 100V
Gear Freq. Response (normal operating conditions ( -3DB))
- STEP 1: 70Hz18kHz
- STEP 2: 70Hz18kHz
- STEP 3: 70Hz18kHz
Input DC24V override signal output (position switch can be placed at any location): 100VInput 1KHZ/100V,Load=82,distortion<1%
