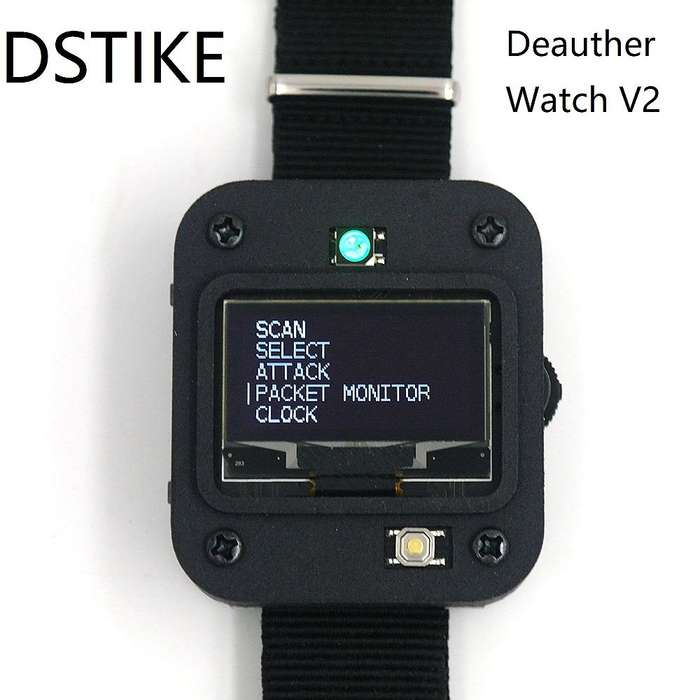

DSTIKE Deauther Watch V2 ESP8266 Programmable Development Board Smart Watch NodeM... (COLOR.: BLACK)

SELECTED OPTION:
COLOR.: BLACK

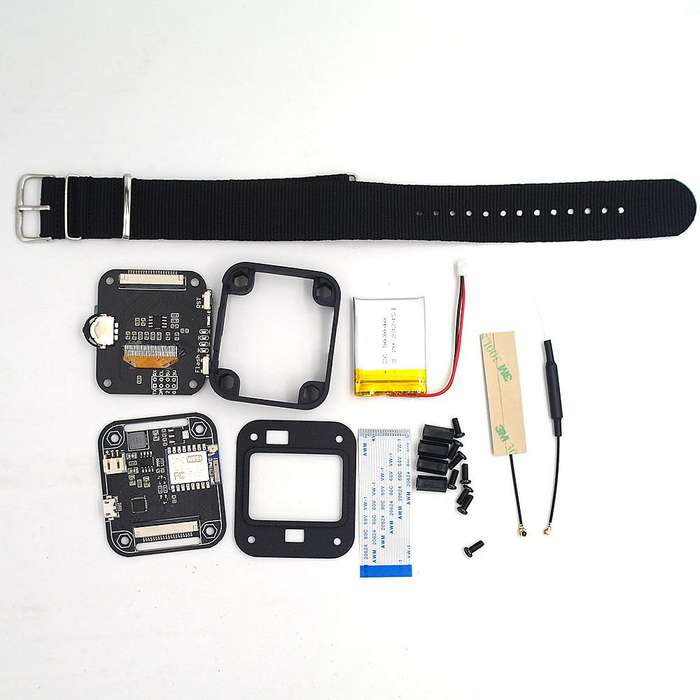

GPIOs and hardware info: Display: SH1106 1.3 OLED Display SDA: GPIO 5 (D1) Display SCL/SCK: GPIO 4 (D2) WS2812b LED: GPIO 15 (D8) Button Up: GPIO 12 Button Down: GPIO 13 Button Select: GPIO 14 High Light LED: GPIO 16 Side Button: GPIO0,RST Why did you make it I designed this development board especially for Spacehuhn's great project: ESP8266 Deauther. It has been authorized by him and is officially supported. What makes it special Only - 80mA power usage Up to around 8-10 hours work time 800 mA charging current Indicate charging LED (25%,50%,75%,100%) Included 5dB FPC antenna and 2dB antenna Power Switch (Click to turn on, double click to turn off) Protection: short, overcharging, over discharging, temperature Added Extremely Accurate DS3231 Disclaimer Use it only for testing and educational purposes against your own devices! I don't take responsibility for what you do with it. Please check the legal regulations for your country to make sure you don't violate any laws. You can get full information from WiKi Package Included: 1 x DSTIKE Deauther Watch V2 ESP8266 Programmable Development Board
