DSTV Satellite Signal Finder Meter

All our products are in stock

Digital Satellite Signal Meter Finder

Features:

In-Line IF signal strength meter,75Ω connector,Built-In light & electric buzzer. Built in

Compass;Ideal for satellite installations or to re-point your satellite dish.

SF-95DR has a blue back light to allow use at night. The signal meter never needs to

be recalibrated nor does it need complicated programming.

ATT increasing key. If the incoming signal is too strong, (the thermometer-scales

shows max and the signal strength value shows 99) it can easily be attenuated by

enabling this "attenuation" function, it reduces the incoming signal to a lower level.

There are four step attenuation totally.

Built-in amplifier compensates insertion loss.

Use LCD to display the satellite signal intensity

It automatically recognizes the LNBF frequency and works with any C band, Ku band,

or Ka band satellite. No need to input transponder frequency, symbol rate, or

polarity. This meter is truly plug & play.

Descriptions:

With electronic buzzer

Sensitive meter for in-line use; pocket size and light weight

Powered by the receiver, nice tool for campers.

Specifications:

Color: blue

Size: 130*65*27mm

Frequency Range: 950-2150MHz

Input level Range: -40-10dBm

Impedance: 75Ω

Gain: ≥10 dB

Power Supply: 13-18V DC

Operating Temperature: 040°

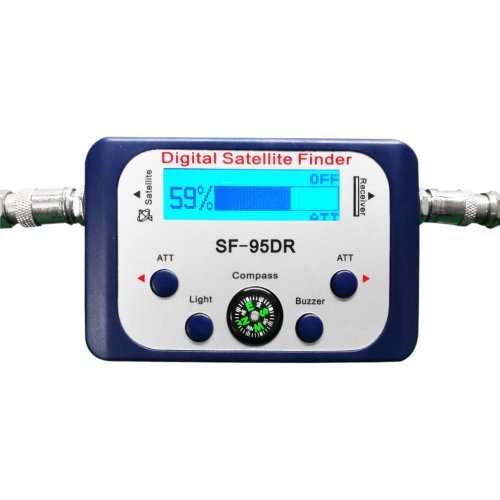

Model: SF-95DR

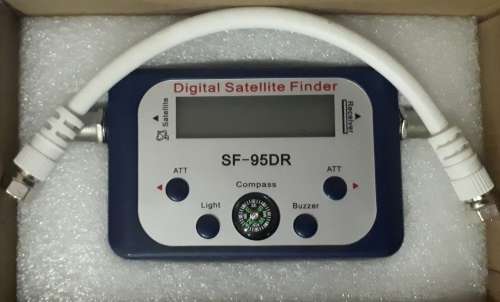

Package included:

1 x Digital Satellite Finder

1 x Cable

1 x Manual
