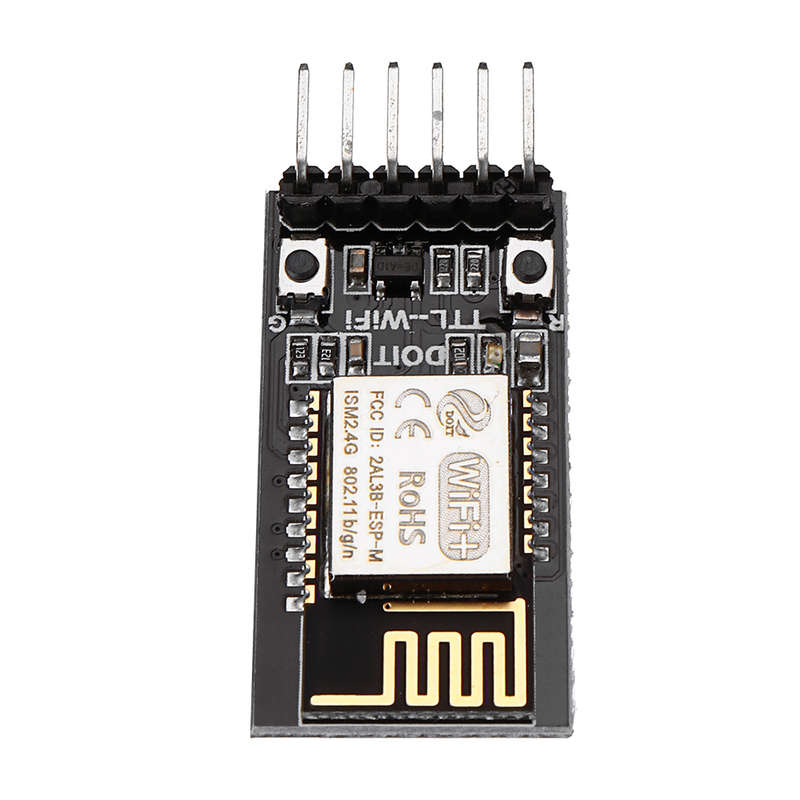

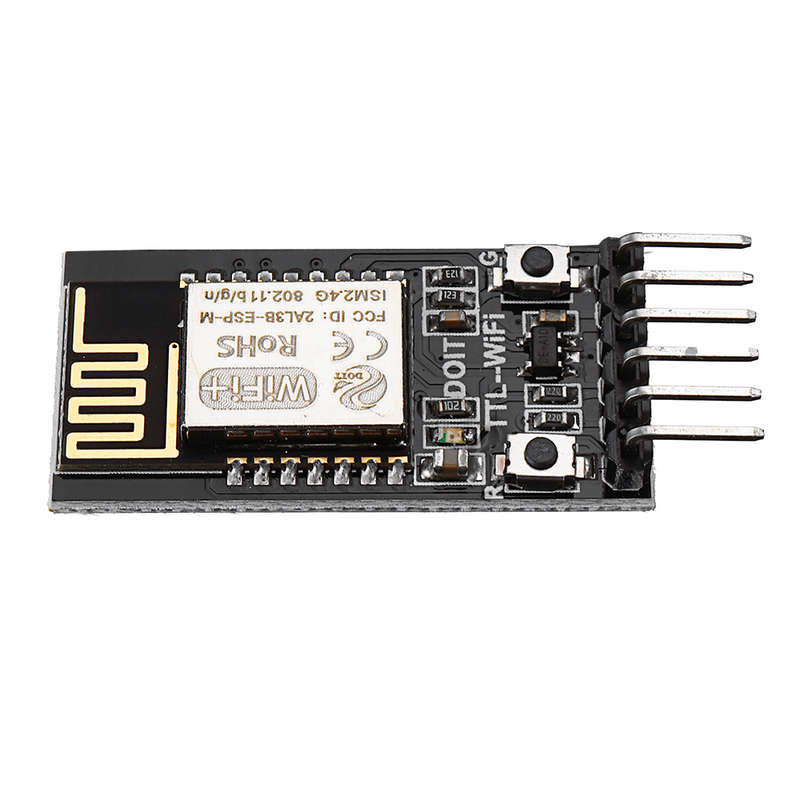

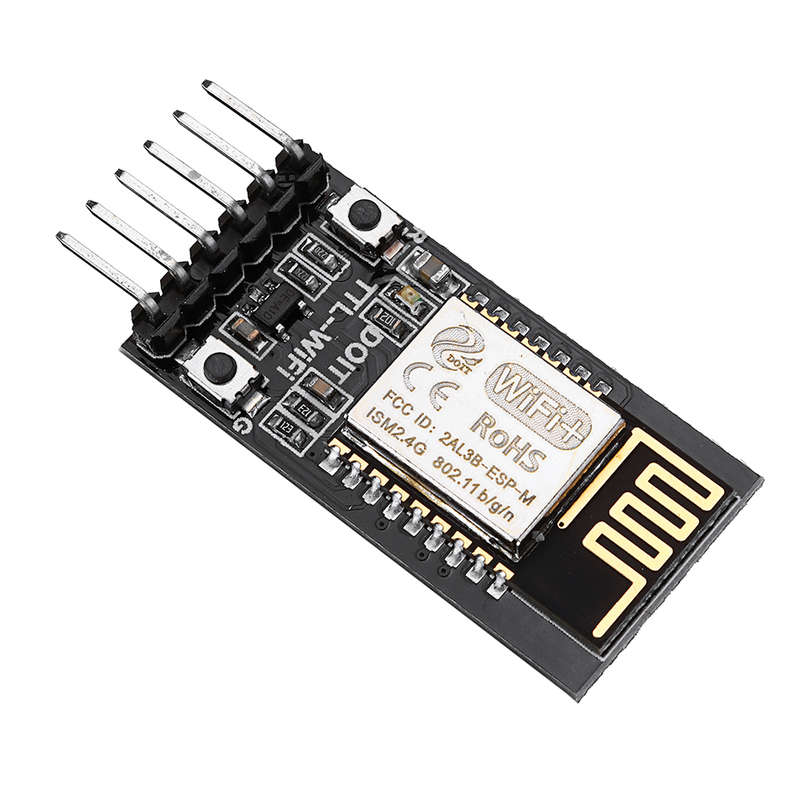

Product Introduction: TTL-WiFi is designed and developed based on E SP-M2 WiFi module which is extracted the TTL, EN, STATE and other pins. Importantly, the TTL-WiFi is already built-in the serial transparent transmission firmware and programmed, which can realize the transparent transmit the data to the cloud on the real-time, together with low-power control, status indictor. This board can replace the old wiring serial WiFi device to realize the data collection and control.
Product Features: Fully compatible with the original electrical interface and physical interface for the serial transparent bluetooth;
Built-in the industrial transparent transmission firmware V3.0 with stability and reliability by using the Web Configuration;
Built-in the high-performance WiFi module E SP-M2 with size: 34mm*17mm*4mm;
Working voltage: 4.5V~6.0V, TTL working voltage: 3.3V (compatible with 5.0V);

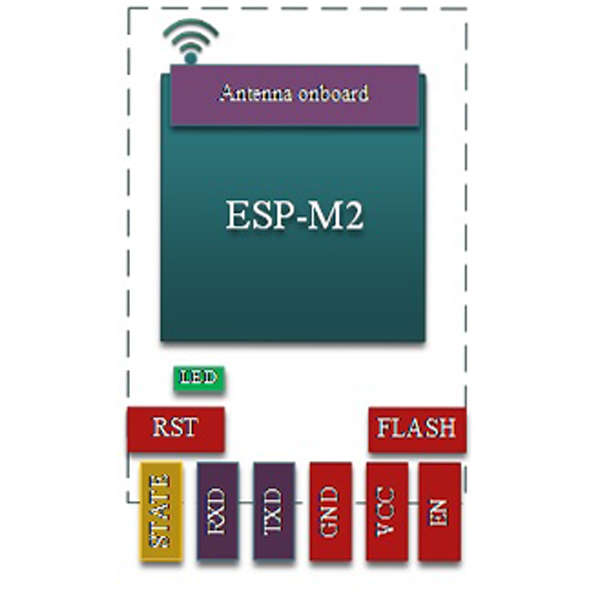

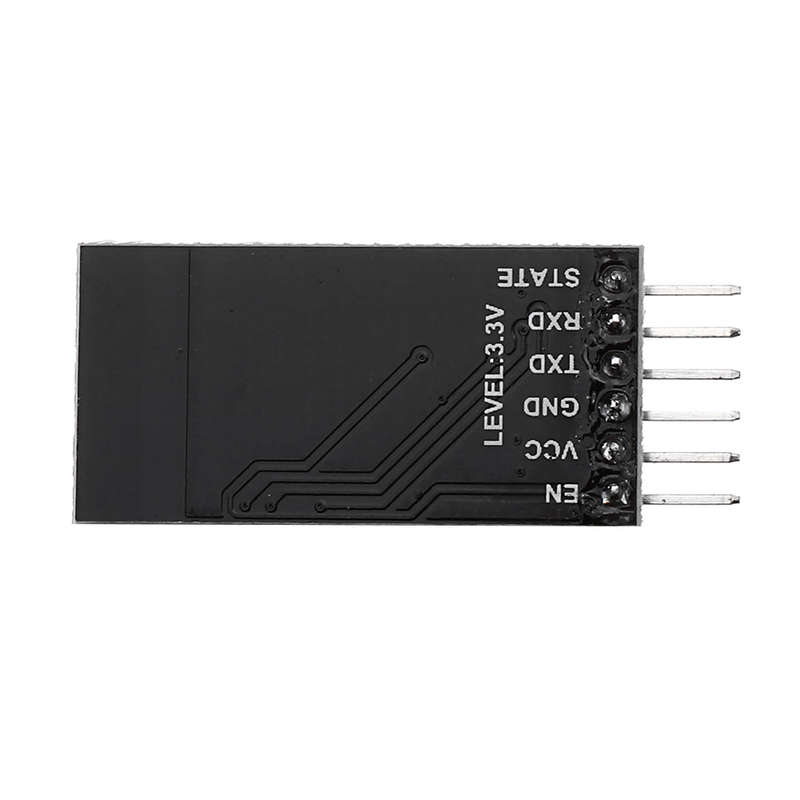

Provided pins: STATE, TXD, RXD, EN;
Average current: 80mA; when data sent, it is 170mA; but it is 20A at deep sleep mode;
Support serial AT com mand;
Support re-programmable, OTA firmware update;
Seamless transparent transmission between serial and WiFi;
Built-in HTTP Web Server, support configure parameters by web page;
Support re-connect automatically at WiFi STA mode and TCP Client;
Support set baud rate, data bit, parity check, stop bits, and/or subcontracting time;
Support baud rate (bps): 300/600/1200/2400/4800/9600/19200/38400/57600/74800/115200/230400/460800/921600/1843200/3686400;

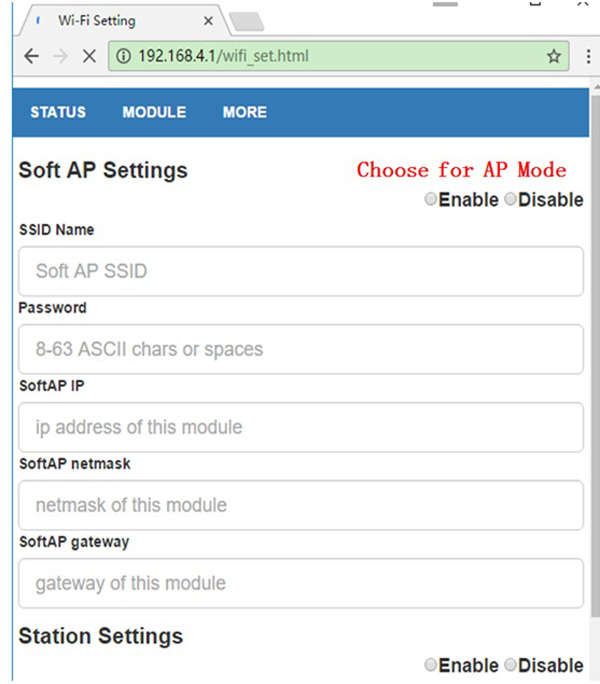

Support AP enable, self-defined SSID/password, self-defined IP, and network duration;
Automatically scan the peripheral WiFi hotspot, support STA enable, DHCP, self-defined IP;
Support TCP Server, TCP Client, UDP Server, UDP Client and UDP local broadcast;
Support DNS resolution automatically for the remote sever address;
Support checking the status by AT com mand;
Provide IO4 to show the WiFi status;
Working temperature: -40a-125a;
Applications: smart home, wireless data connection and transparent transmission, smart car control, wireless serial printer, LED light industrial control etc.

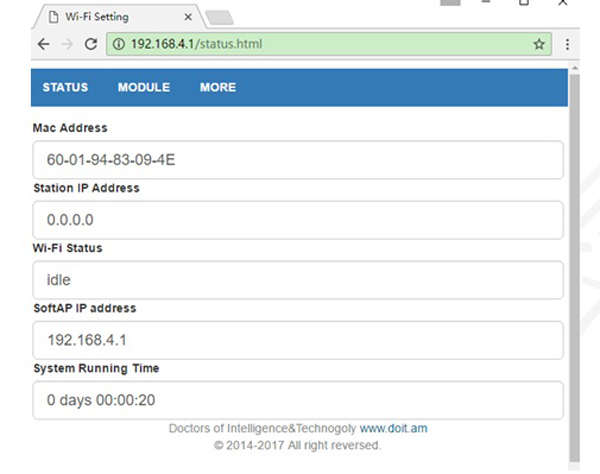

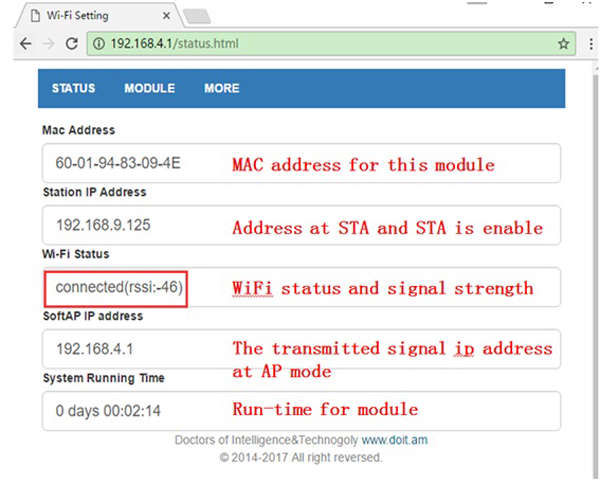

Usage of Web configuration: This module is already built-in the HTTP Server. Thus, it can configure the parameters by the browsers on PC or mobile phone or other smart devices, without of need of any other tools or Apps. In the factory settings, the module works in AP mode, and the signal is aDoit_WiFi_xxxxxx', where, axxxxxxais the last 6 number of the M AC address of this module. Then, one can connect this WiFi hotspot by PCs or phones, and other smart devices (supportable Android and Ios, Windows) with no password.

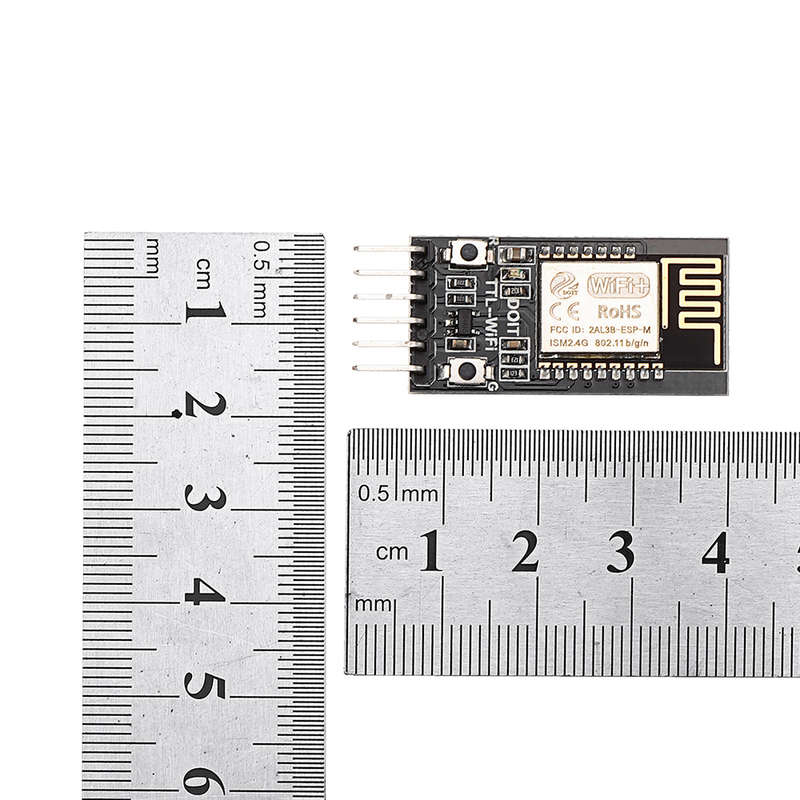

Package included: 1 xDT-06 Wireless WiFi Serial Port Transparent Transmission Module
