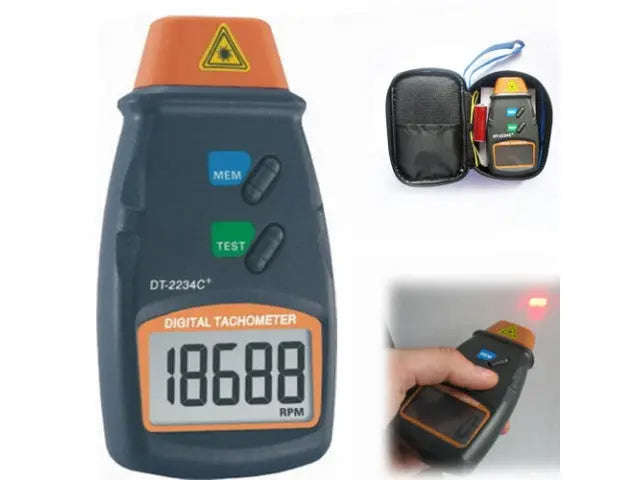

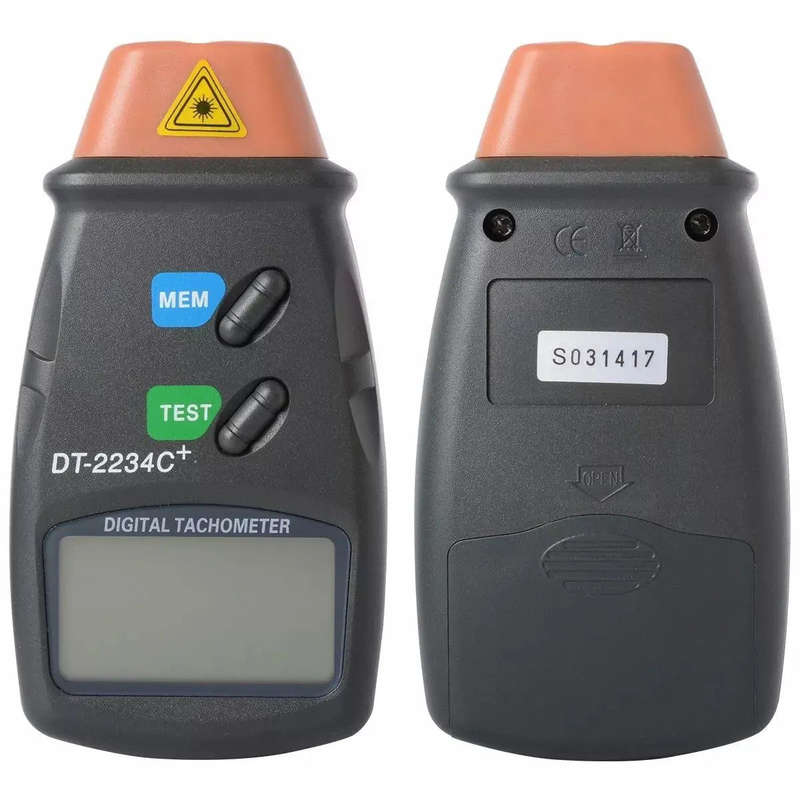

Dt-2234C+ Digital Optical Tachometer

The DT-2234C+ is a hand-held digital optical tachometer for non-contact measurement of rotational speed (RPM) or frequency.

Each unit comes with its own calibration certificate, which reports the measurement error of the unit at 2 points across its range.

• Large LCD display
• Automatic Min/Max Memory
• Soft carrying case & 200mm of reflective marking tape

Display: 5 digits, 18mm high
Range: 2.5 - 99,999 RPM
Resolution: 0.1 RPM (2.5 - 999.9 RPM), 1 RPM (1,000 - 99,999 RPM).
Accuracy: ±0.05% + 1 digit
Calibrated Points: 500 RPM; 6000 RPM;
Sampling Time: 0.8 sec.(over 60 RPM)
Detecting Distance: 50 to 200mm (LED), 50 to 500mm (Laser)
Time Base: Quartz crystal
Operation Temperature: 0 to 50°C
Battery: PP3 9V
