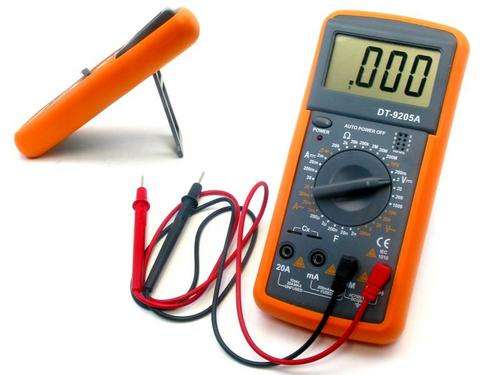

DT-9205A Large LCD Display Digital Multimeter
DT-9205A Large LCD Display Digital Multimeter
Features:
- State of the Art ergonomic design and styling for easier handling and use
- One rotary switch operation
- Large 3 1/2 digit LCD display
- DC & AC Voltage, DC & AC Current, and Diode (hFE) measurement
- AC/DC Voltage measurement up to 700/1000 Volt
- DC Current measurement up to 20 Amp
- Resistance measurement up to 2000 Mega Ohm
- Diode test
- Continuity Test
- Overload protection
- Soft holster for instrument protection
- Auto power off
- Automatic polarity indication
- Low-battery indication
- Accessories: operation manual, test leads (included)
Technical Specifications:
- Large LCD display size: 15/16"
- Power: 1x 9V battery (included)
- Test probes: One red and one black, 1000V/15A rated (IEC1010/EN61010 CAT II), 2' long
Applications:
- For use in Electronic and electrical circuits, Automobiles, Trucks, Trailers, Boats, RVs etc...
- Measure currents in circuits like battery chargers, alternators, leakage currents, electrical loads, etc...
- Check grounds, Voltage drops and continuity across Connectors, Wires, Cables, Relays Contacts, Lamps, Switches, etc...
- Check components like Alternator, Diodes, Relays Coils, Condensers, Ignition Coils, Spark Plug Wires, Magnetic Pick-ups, Motors, Switches, Fuses, etc...
- An essential tool for all around troubleshooting of electrical and electronic circuit and systems.
