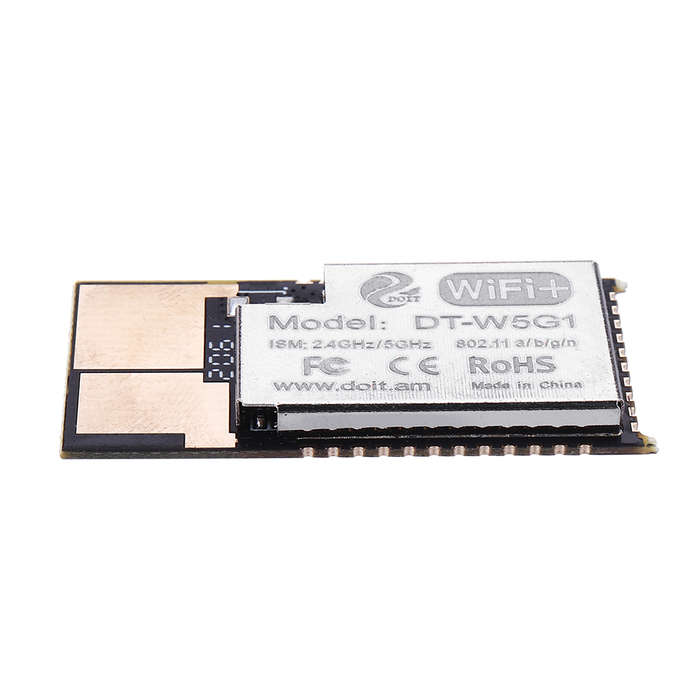

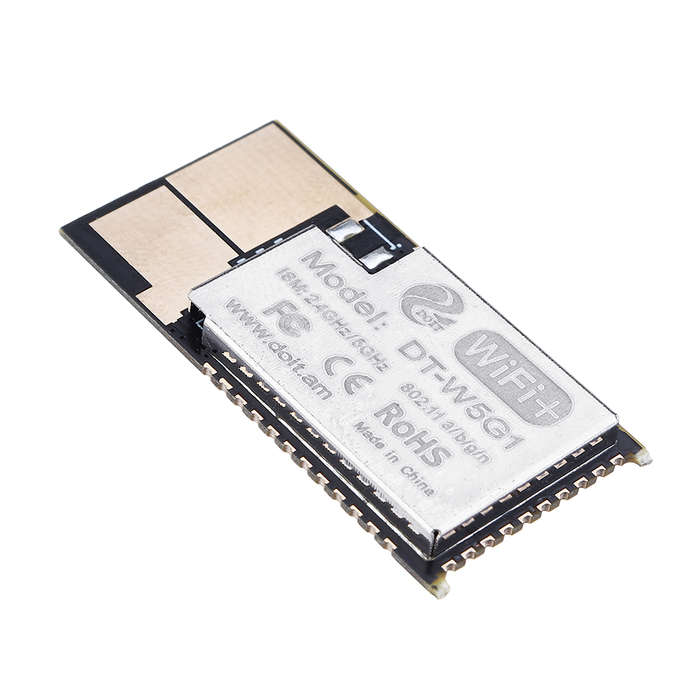

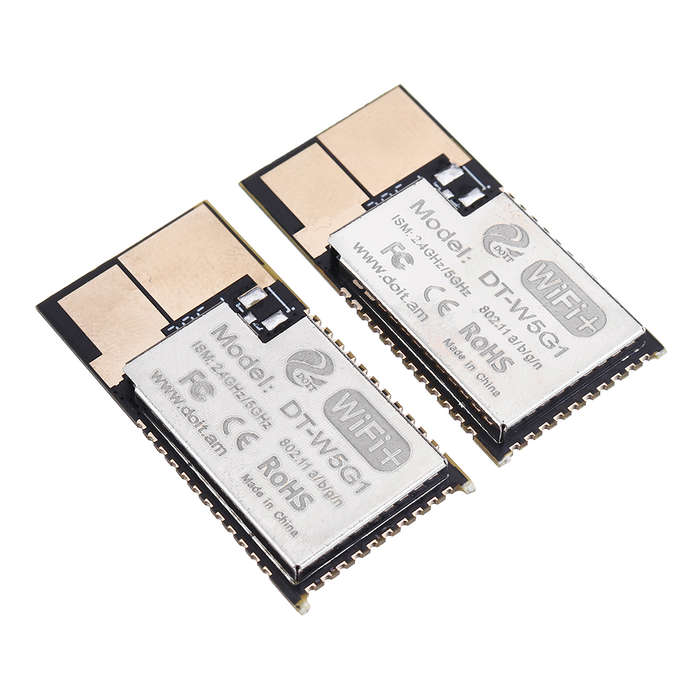

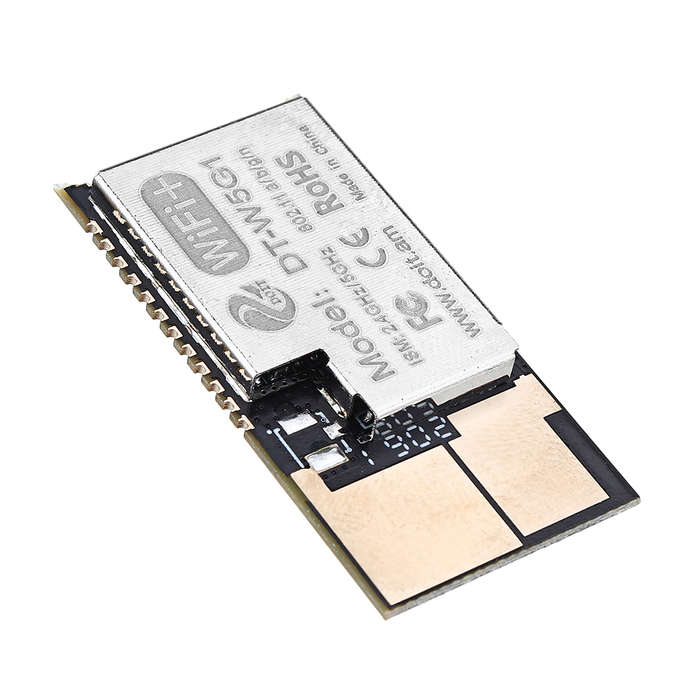

DT-W5G1 5G WiFi Module 2.4g/5g Dual-band Module with Antenna Interface For Wi... (TYPE2: ATFIRMWARE)

SELECTED OPTION:
TYPE2: ATFIRMWARE

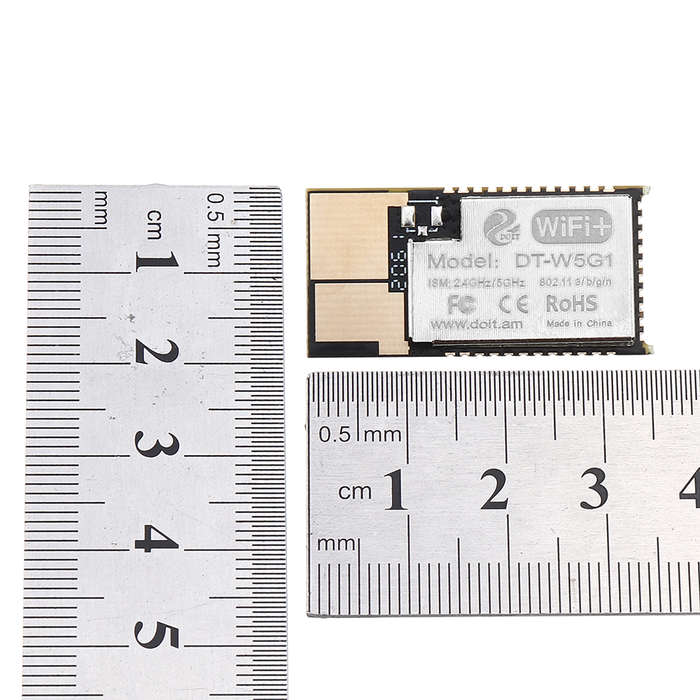

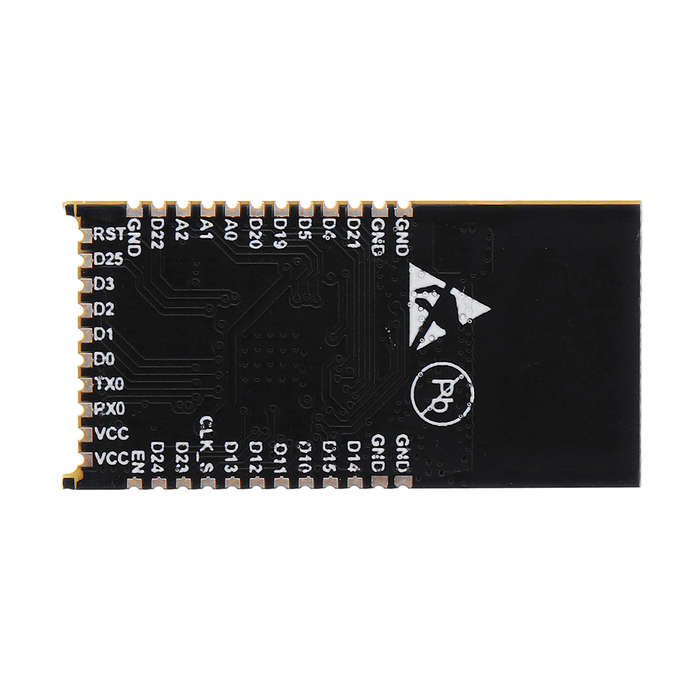

Description: SOC characteristics: Built-in 160MHz MIPS RISC processor 512K SRAM Communication rate: 72Mbps (20MHz) Optimal balance & LLR quantification Wi-Fi features: Support 802.11 a/b/g/n, 2.4-2.5GHz, 4.9-5.85GHz 2.4GHz Rx sensitivity: -75dBm/11n HT20 MCS7, Tx Power: 21dBm 5GHz Rx sensitivity: -74dBm/11n HT20 MCS7, Tx Power: 16.5dBm Support Station, SoftAP mode Support Wi-Fi Direct (P2P) Supports CCMP (CBC-MAC, counter mode), TKIP (MIC, RC4), WAPI (SMS4), WEP (RC4), CRC P2P discovery, P2P GO mode/GC mode and P2P power management Seamless roaming support Support AT remote upgrade and cloud OTA upgrade Support Android and iOS device SmartConfig function Module peripheral: 2xUART 3xADC 1xHSPI 1xI2C 1xI2S 2xDMA 2xPWM Up to 23xGPIOs 2M bytes SPI Flash Operating temperature range: -30 ﾣ C -85 ﾣ C Module size: 18mm 30mm Application scenario: Wireless image transmission Home automation Smart Home Mesh Network Baby monitor IP camera Sensor network Wearable electronics Security ID tag Wireless location awareness Wireless positioning system beacon Industrial wireless control Package Includes: 1 x DT-W5G1 2.4G 5G Dual Frequency Module
