Description:

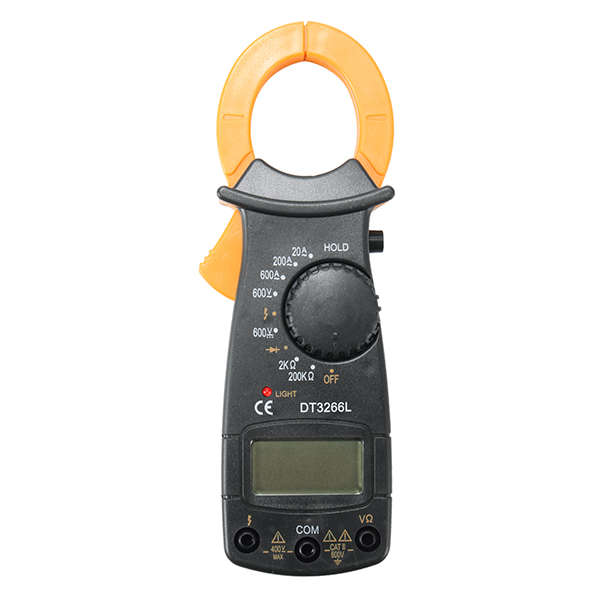

DT3266L Portable Handheld Digital Clamp Meter Multimeter Voltage Current Resistance Tester with Test Lead
This LCD Digital AC/DC clamp multimeter is a portable clamp meter. It is ideally suited for field, laboratory, shop and home applications.
Features:
3 1/2 digit LCD screen, the maximum display value is 1999.
Multi-purpose clamp meter can measure AC/DC voltage, AC current and resistance, etc.
Low voltage indication and overload protection.
High resolution of 1mA minimum force.
Diode Test.
Continuty Test, buzzer sound: <75Ω
Small and portable to carry and use.
Data retention for easier reading.
Specifications:
Color: Black + Yellow
Material: Plastic
DCV: 600V 1V ±1% rdg / ±5digits
ACV: 600V 1V ±1.2% rdg / ± 5digits
ACA: 20A 10mA ±2.5% rdg / ± 10digits
200A 100mA ±2.5% rdg / ± 10digits
600A 1A ±2.5% rdg / ± 10digits
Resistance: 2KΩ 1Ω ±1.2% rdg / ± 5digits
200KΩ 100Ω ±1.2% rdg / ± 5digits
Package included:
1 x DT3266L Portable Handheld Clamp Meter

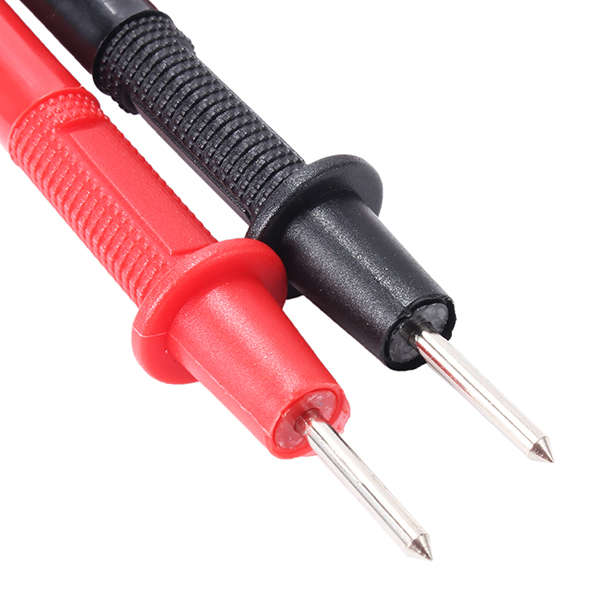

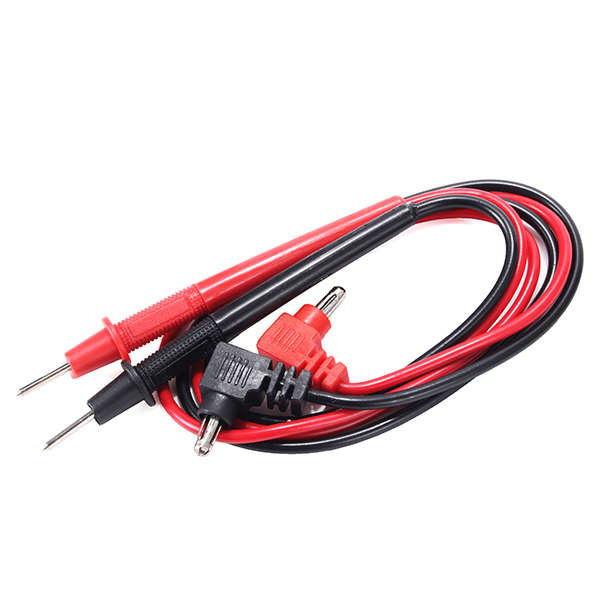

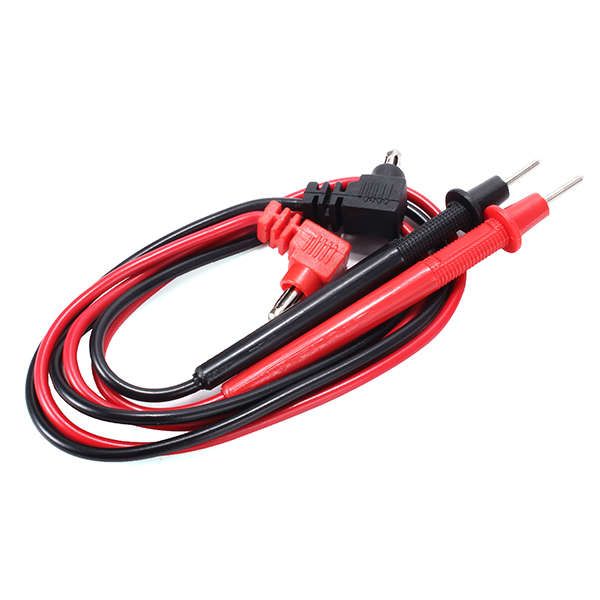

1 x Test Lead
1 x English User Manual

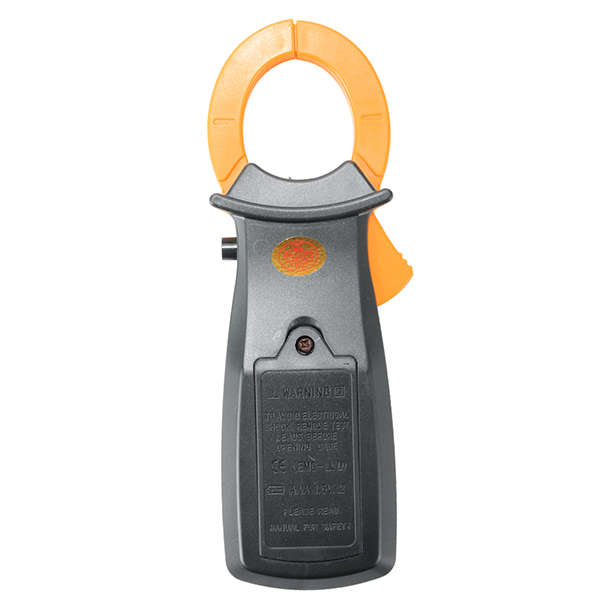

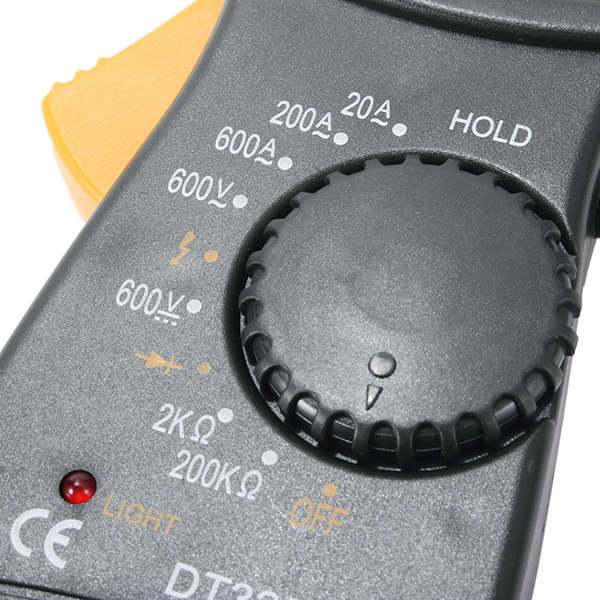

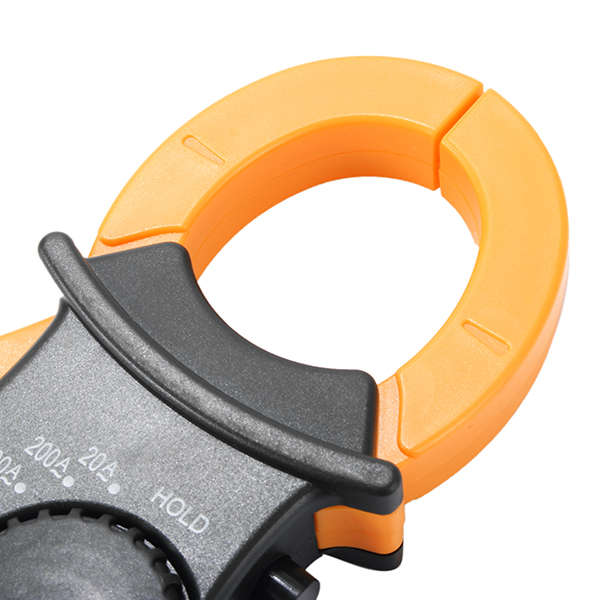

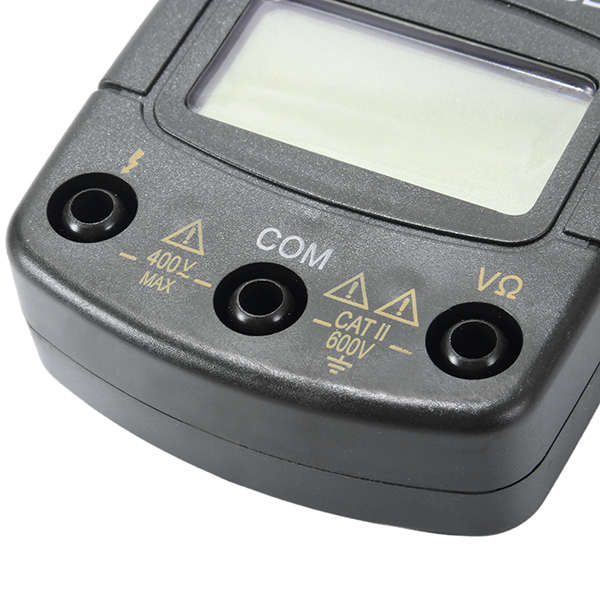

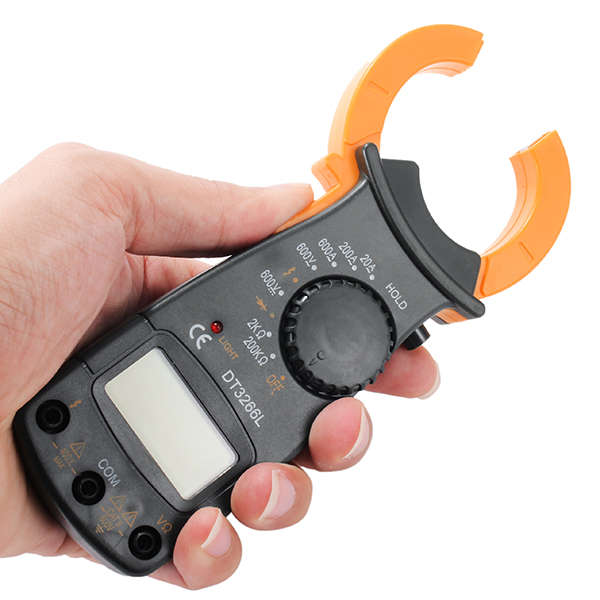

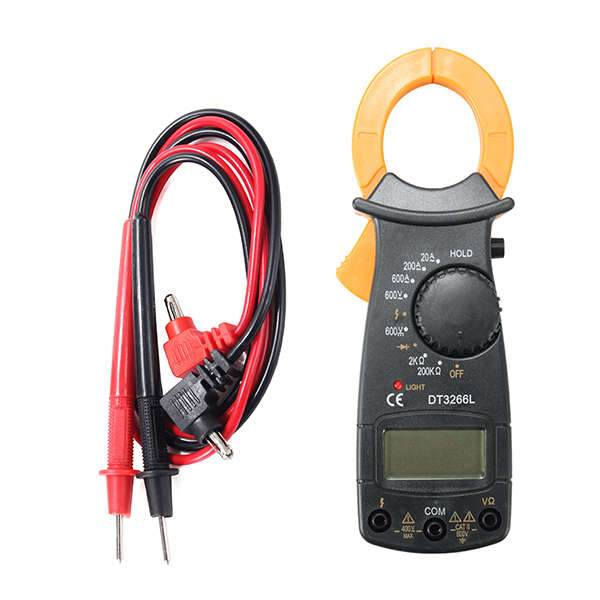

Details pictures:
