About:

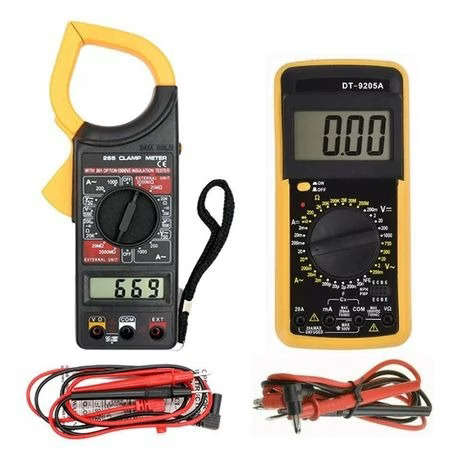

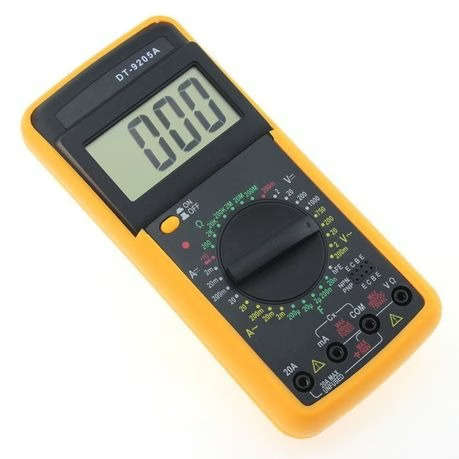

DT9205A Digital Multimeter:
Features:
Compact and portable to hold and operate
CMOS integrated circuit
On-off beep alarm function
Manual measuring range
Maximum value display is 1999
Auto power off, data hold functions
LCD backlight display, low voltage indication
Over measuring range indication and protection
It is ideal for such fields as smelting, manufacturing, petrol, chemical industry, etc.
Specifications:
DC Voltage Range: 200mV/2V/20V/200V/1000V Accuracy: (0.5%+3)
AC Voltage Range: 2V/20V/200V/700V Accuracy: (0.8%+5)
DC Current Range: 2mA/20mA/200mA/20A Accuracy: (0.8%+10)
AC Current Range: 2mA/20mA/200mA/20A Accuracy: (2.0%+5)
Resistance Range: 200/2K/20K/200K/2M/20M/200M Accuracy: (0.8%+31)
Capacitance Range: 20nF/2uF/20uF/200uF Accuracy: (2.5%+20)
Low Voltage Display: Yes
Automatic Shutdown: Yes
Shockproof: Yes
Maximum Display: 1999
Display Screen: 59 x 31mm
Power : 2x AAA Batteries Included
Dimensions: 7.24 x 3.07 x 1.34 / 18.4 x 7.8 x 3.4cm (LxWxH)
Weight: 5.32 oz / 1517 g

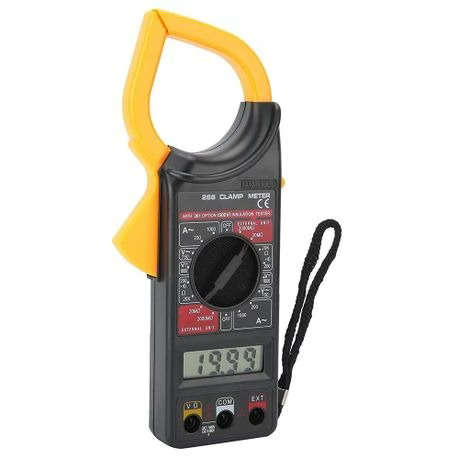

DT266 Electronic Digital Clamp Meter:
Specifications:
AC Current: 0.1 A to 1000A
Insulation Teat: 100K to 2000M (With option 500V insulation tester unit)
AC Voltage: 1V to 750V
DC Voltage: 1V to 1000V
Resistance: 100m to 20k
Continuity Test: 50 25 with audio tone
Measurement Method: Dual slope integration technical
Reading Rate: 3 reading/ Sec
Polarity: Automatic, indicator minus. assumed plus
Overload Indication: Blanking of all digits. except MSD. decimat point and sign. appropriate
Power Requirements: 9V battery (Included)
Battery Life: Up to 200 hours typical with Alkaline, up to 200 hours typical with Zinc carbon
Battery Indication: Display indicates LD BAT when approximately 20% of battery life remains
Display: LCD. 3-1/2 digital (1999 count) 0.5" high
Data Hold: All function and ranges with this features
