DTECH DT-9005 Without Power Supply RS232 To TTL Serial Port Module, Interface: 3.3V Module
+3

DTECH DT-9005 Without Power Supply RS232 To TTL Serial Port Module, Interface: 3.3V Module

10 available / new
R464.63
Want to pay less?
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 15 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
International
Product code
TBD0602457301
Bob Shop ID
636662467

1. Interface compatible: RS232, TTL
2. Material: ABS
3. Transmission mode: asynchronous, full duplex, full transparency
4. Electrostatic protection: about 15KV ESD
5. Scope of application: PC, terminal equipment, industrial control, digital instrument acquisition, multi-serial port equipment, serial interface of single-chip microcomputer, etc.
6. Transmission rate: 300bps-115.2kbps
7. Transmission medium: twisted pair/shielded wire

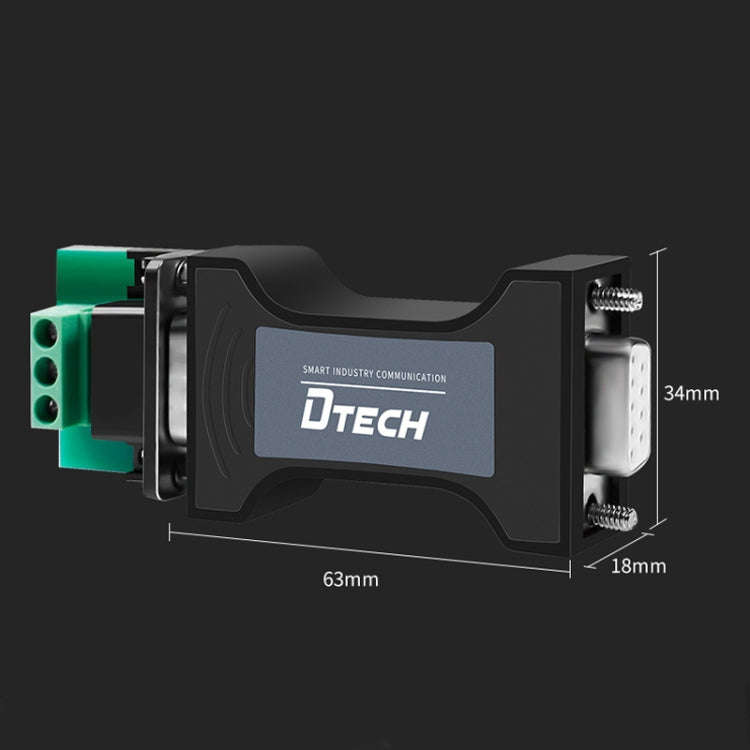

8. Size: about 6.3 x 3.4 x 1.8mm

Features:

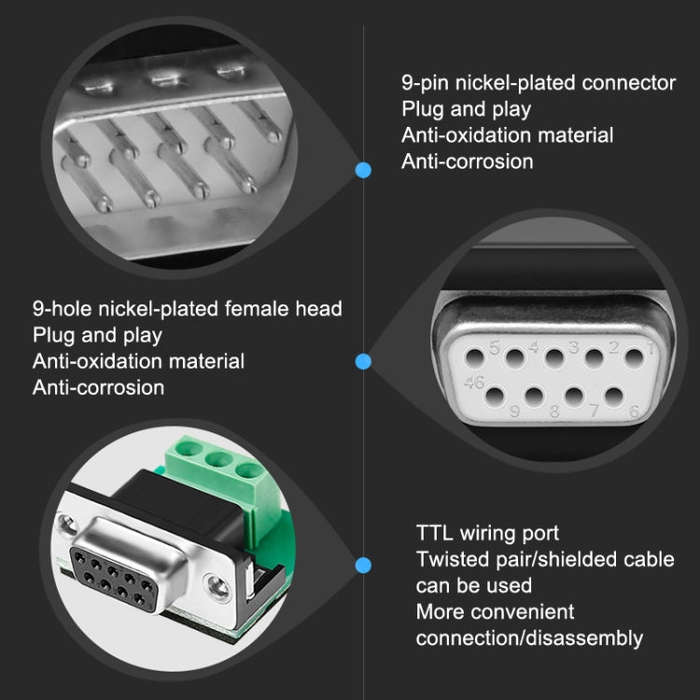

1. 9-pin nickel-plated connector/female, resistant to unplugging, using anti-oxidation material, anti-corrosion
2. TTL wiring port, can use twisted pair/shielded wire, which is more convenient to connect/disassemble
3. Environmental protection material, safe to use
4. Built-in fast transient voltage suppression protector TVS

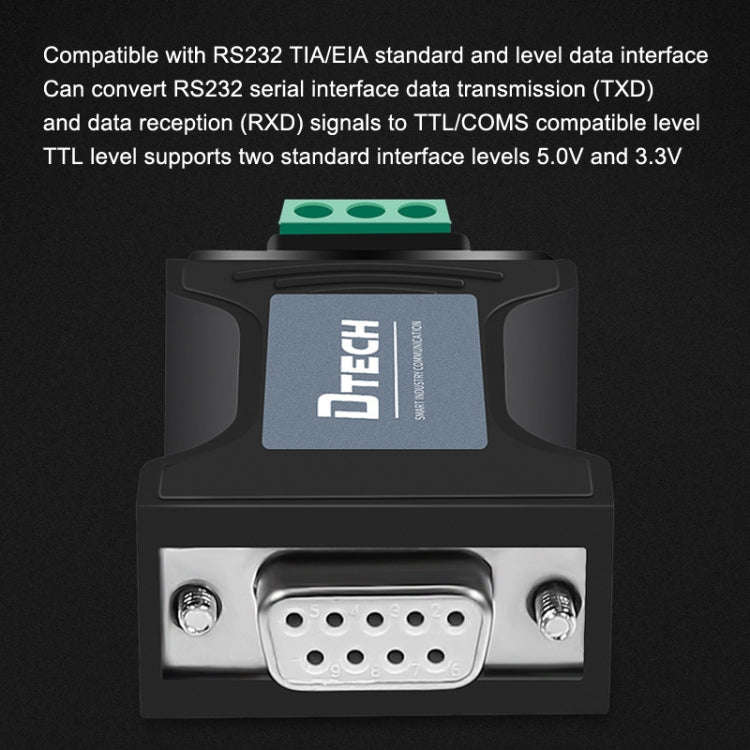

5. Compatible with RS232 TIA/EIA standard and level data interface, can convert RS232 serial interface data transmission (TXD) and data reception (RXD) signals to TTL/COMS compatible level, TTL level supports two standard interfaces Level 5.0V and 3.3V

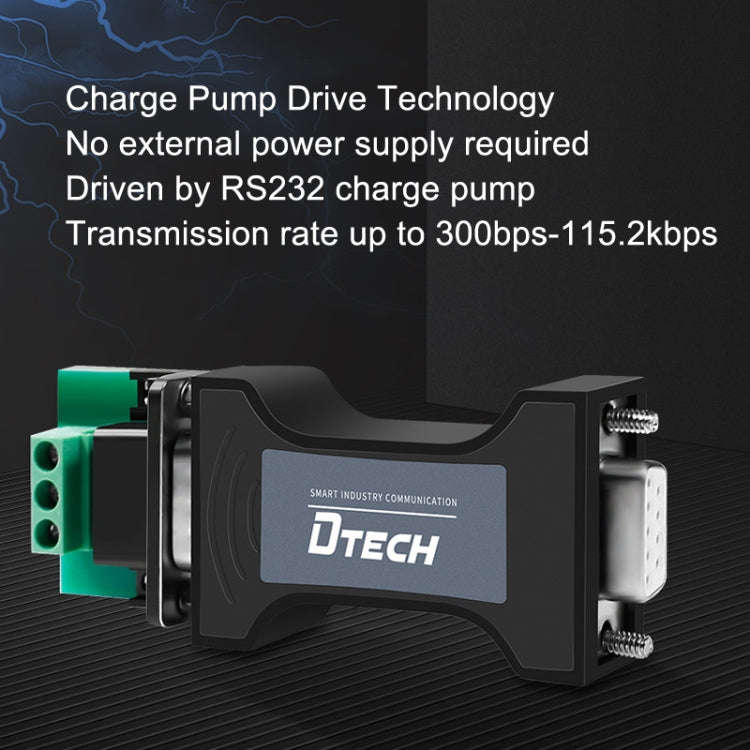

6. Charge pump drive technology, no external power supply required, using RS232 charge pump drive, the transmission rate can reach 300bps-115.2kbps

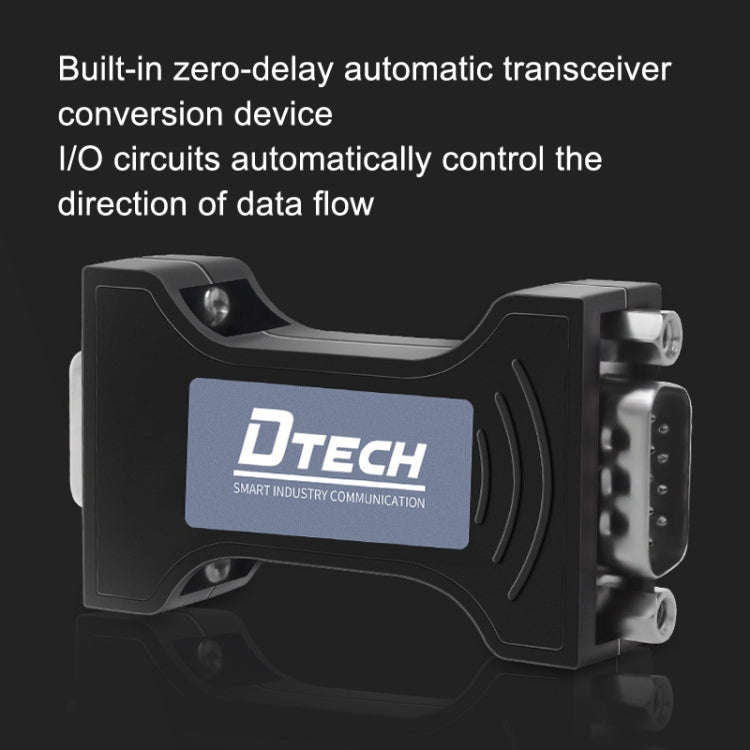

7. Built-in zero-delay automatic transceiver conversion device
8. The I/O circuit automatically controls the direction of data flow
