DTECH RS232 To RS485 Bi-Directional Converter With Surge & Transient Protection - Opto-Isolated P...

New 10 available
R951.26
Want to pay less?
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 15 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
International
Product code
TBD06059658
Bob Shop ID
647029612

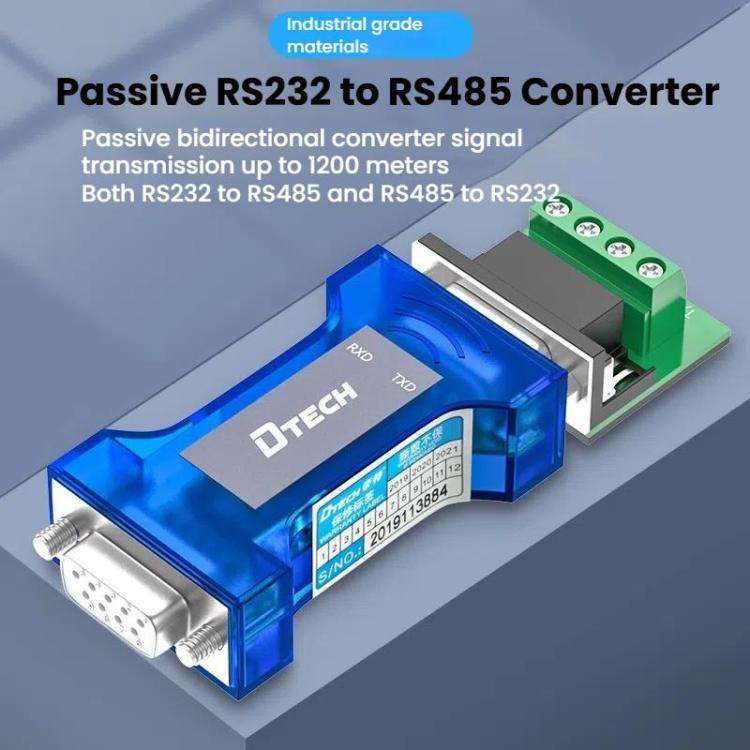

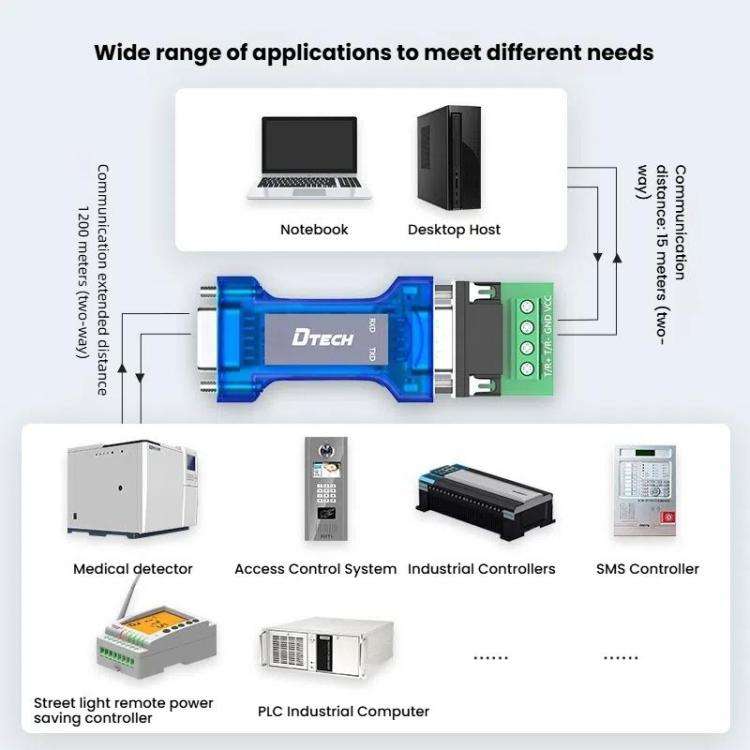

1. Dual-Protocol Conversion & Long-Distance Transmission: Seamlessly converts RS232 to RS485 bidirectionally, supporting up to 1200m (RS485) and 15m (RS232) transmission. Ideal for remote industrial control and multi-device networking.

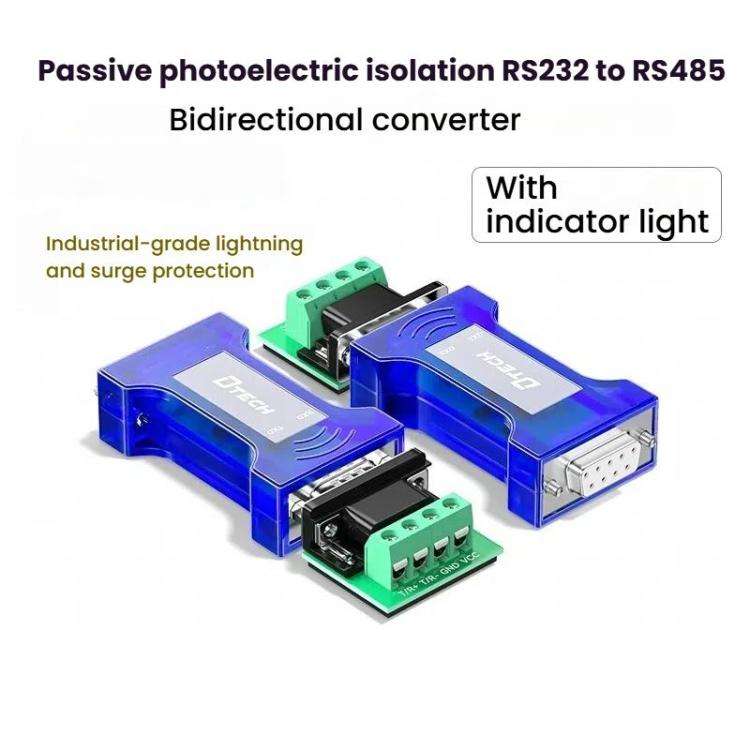

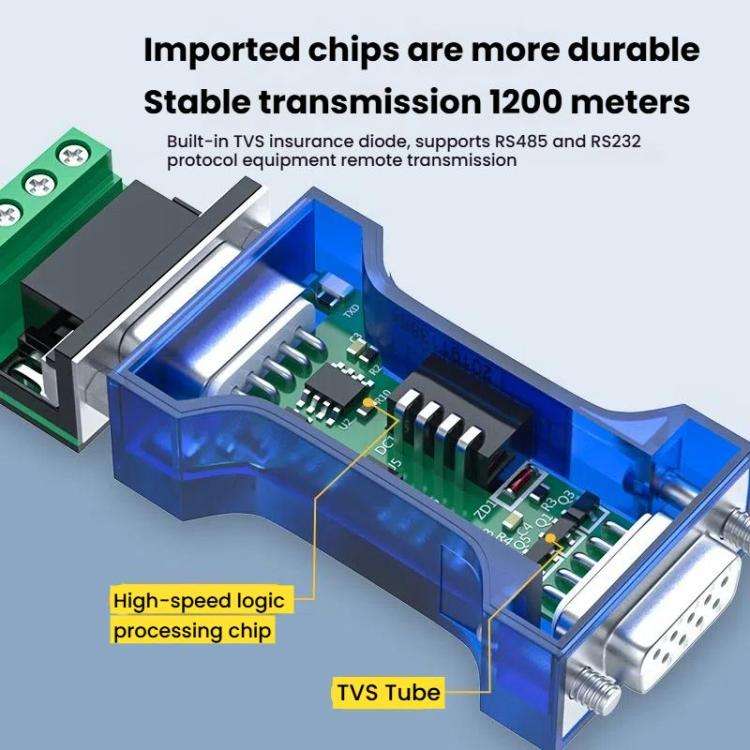

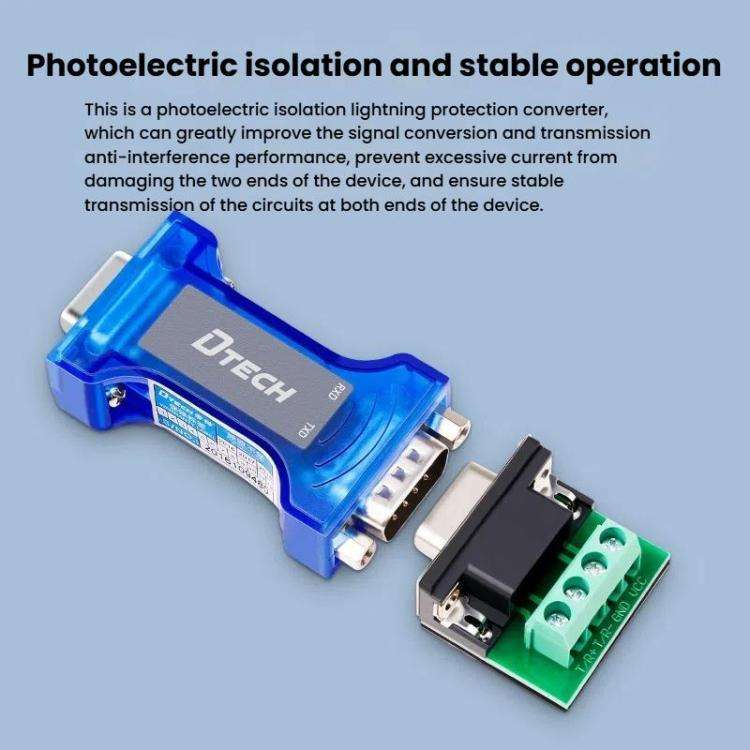

2. Enhanced Signal Stability & Protection: Equipped with TVS diodes, lightning surge protection, and photoelectric isolation to eliminate interference and prevent equipment damage from overcurrent.
3. Intelligent Signal Amplification: High-sensitivity receiving circuit amplifies weak signals for reliable long-range communication (300bps-115.2kbps).

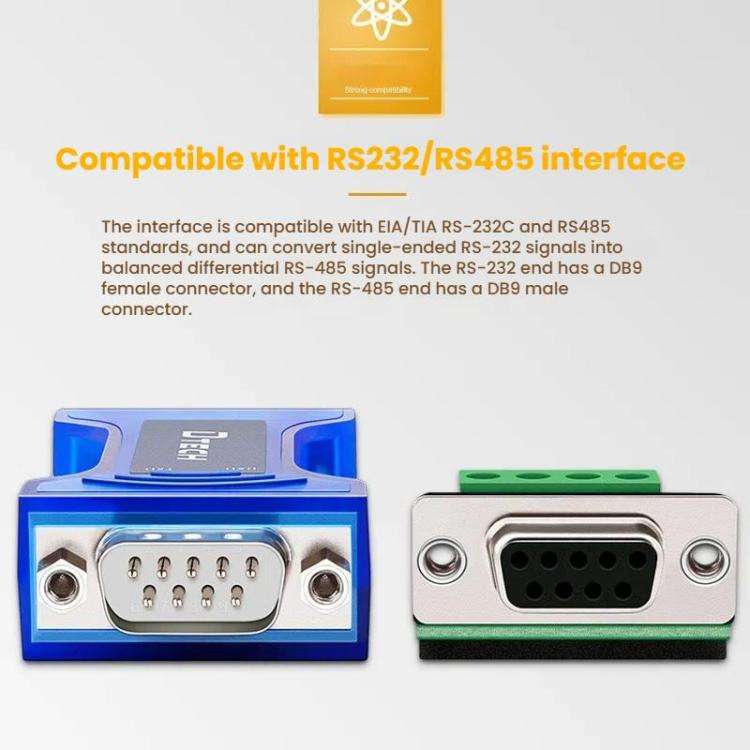

4. Plug-and-Play Compatibility: Auto-directional data flow control ensures seamless compatibility with existing RS232 software/hardware.
5. Real-Time Status Monitoring: Dual LED indicators display TX/RX status for instant troubleshooting.

Technical parameters:

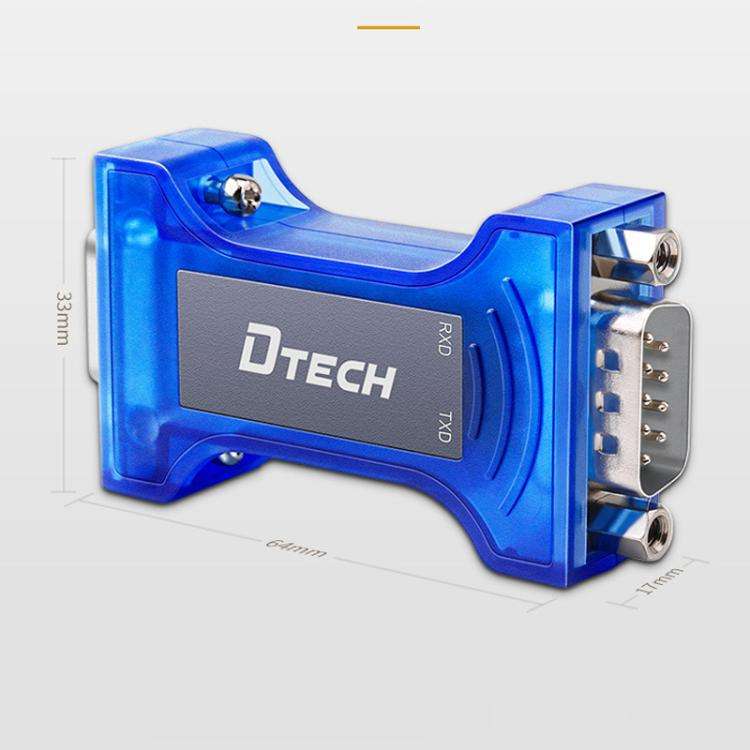

1. Size: 64x33x17mm (compact and portable)
2. Transmission medium: shielded twisted pair (wire diameter greater than or equal to 0.5 square millimeters)
3. Communication mode: asynchronous half-duplex differential

Notes:
1. Ensure proper termination resistor installation in multi-drop networks.
2. Avoid parallel routing with high-voltage cables to reduce EMI.

Packing list:
1× DT-9015 Converter
1× Terminal Block
1× User Manual
