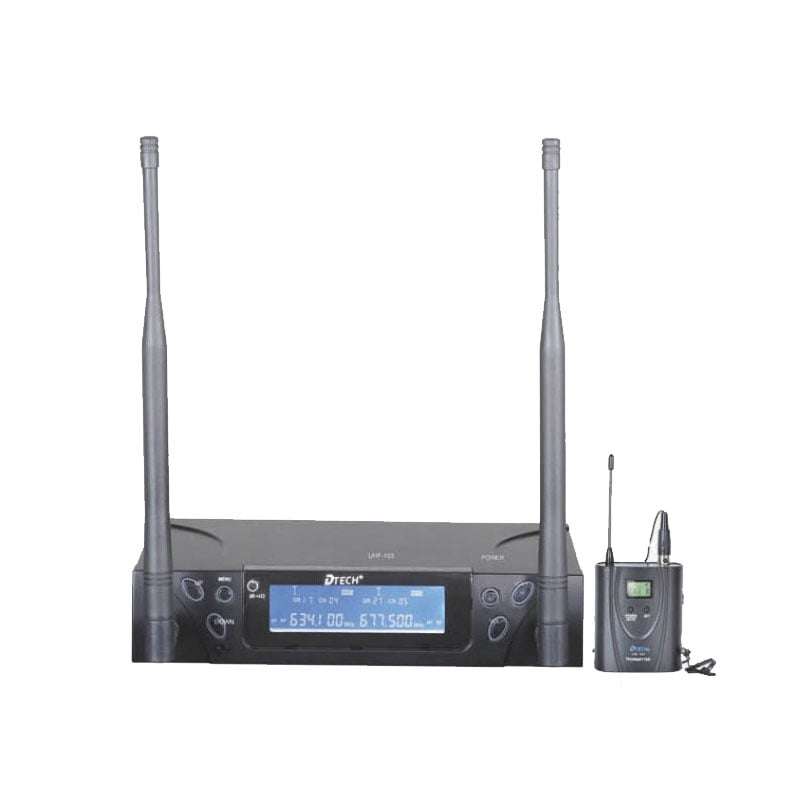

Single Channel Professional Receiver
- Diversity
- Tone control squelch
- Working range adjustable
- LCD display
- Group and channel selectable
- Smart option (Infrared SYNC)
Body Pack Transmitter
- Innovated design of the bodypack transmitter can be matched with lavalier, headset or instrument connector, providing another option besides handheld microphone; further more, it sets your hand free!
- Professional TA4F connector prevents the connector from dropping off and creating unwanted noise.
- Low battery consumption. Adopting. two 1.5V AA batteries, it works a longer time than expected.
SPECS
Overall System
Carrier Frequency Range: UHF 470-928MHz
Stability: ±0.005% (at 25)
Ambient Temperature: 10±50
Normal Deviation: ±35 KHz
Max Deviation: ±80KHz
S/N Ratio: <-110dB
T.H.D: <0.5%
Squelch: Tone control and noise lock dual squelch
Frequency Response: 30Hz – 20KHz
Operating Range: 100m(approximately 300 feet under typical conditions)
Receiver
Receiving Mode: PLL Diversity (Dual Antenna)
Sensitivity: >-107dB
Image Rejection: Over 90dB
Audio Output: Balanced and Unbalanced
Power Requirement: AC 110-120V/220-240V
(50-60) External DC 22V 450mA
Dimensions (W x D x H): 205 x 169 x 39mm
Net Weight: Approx. 1.5 kg
Wireless Microphone
Cartridge: Dynamic or Condenser
Antenna: Built-in
RF Output: <10mW
Spurious Emissions: <45dBc
Normal Deviation: ±35KHz
Maximum Deviation: ±80 KHz
Battery: Two 1.5V AA battery or 1.2V AA rechargeable battery
Battery Life: >8 Hours
