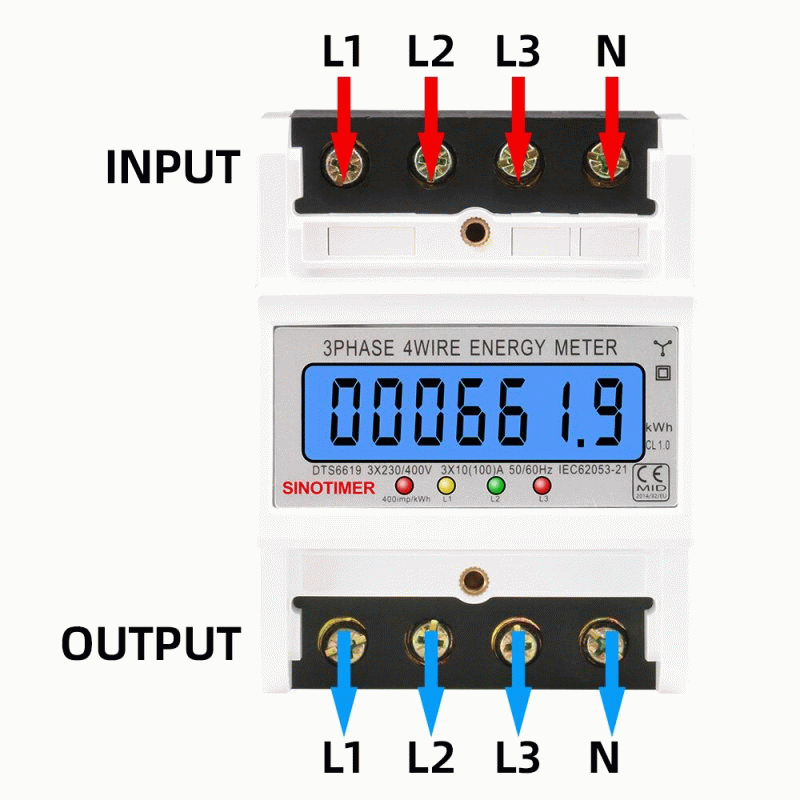

DTS6619-020 - SINOTIMER DTS6619 New Model 100A LCD Digital Display with Backlight Power Meter in Ene

Features:

Advanced LCD Display: The DTS6619 model boasts a 6+1 digit LCD digital display with a backlight feature, ensuring easy readability even in poorly lit conditions.

High Accuracy: Offers an impressive 1.0 accuracy level, providing precise and reliable readings every time.

Efficient Energy Measurement: With a reference current of 3 X 10(100A), it accurately monitors the power consumption in your premises.

Durable Material Composition: Constructed with robust metal and ABS materials, this power meter promises lasting performance and durability.

Wide Operating Range: Ensures a seamless operation at temperatures ranging from -20 to 55 degrees Celsius.

Three-Phase Four-Wire Electronic Type: This smart power meter uses advanced technology to offer accurate and efficient readings across multiple phases and wires.

Specifications:

Brand Name: SINOTIMER

Model Number: DTS6619

Material: Metal + ABS

Reference Voltage: 3 X 220/380(V), 3 X 230/400(V)

Reference Current: 3 X 10(100A)

Rated Frequency: 50/60 Hz

Constant Pulse: 400imp / kWh

Display: LCD 6+1

Power Consumption: 2W, 10VA

Starting Current: 0.004Ib

Operating Temperature Range: -20 ~ 55°

Storage Temperature Range: 25 ~ 70°

Operating Voltage Range: 0.9-1.1 Rated Voltage

Utmost Voltage Range: 0.8-1.15 Rated Voltage

Annual Average Humidity: 75%

Dimensions: Approx. 10.1 X 7.6 X 6.5cm / 3.97 X 2.99 X 2.55in

Weight: 400g

Max Operating Current: 100A

Measuring Energy Range: 0.0-999999.9kwh

Power Supply: AC

Output Voltage: 380v ac

Rated Voltage: 380v ac

Phase: Three phase

Optional Shell Color: White / Transparent

Package Includes:

1 x SINOTIMER DTS6619 Energy Meter(Shell color as your choice)

1 x English Operation Manual
