Package weight: 0.04 kgFeatures:
Applicable to: Battery pack, photovoltaic solar energy, Wind power hydropower inverters and other new energy DC voltage current and power monitoring, can be used for DC power supply detection, easy integration of intelligent system information collection.

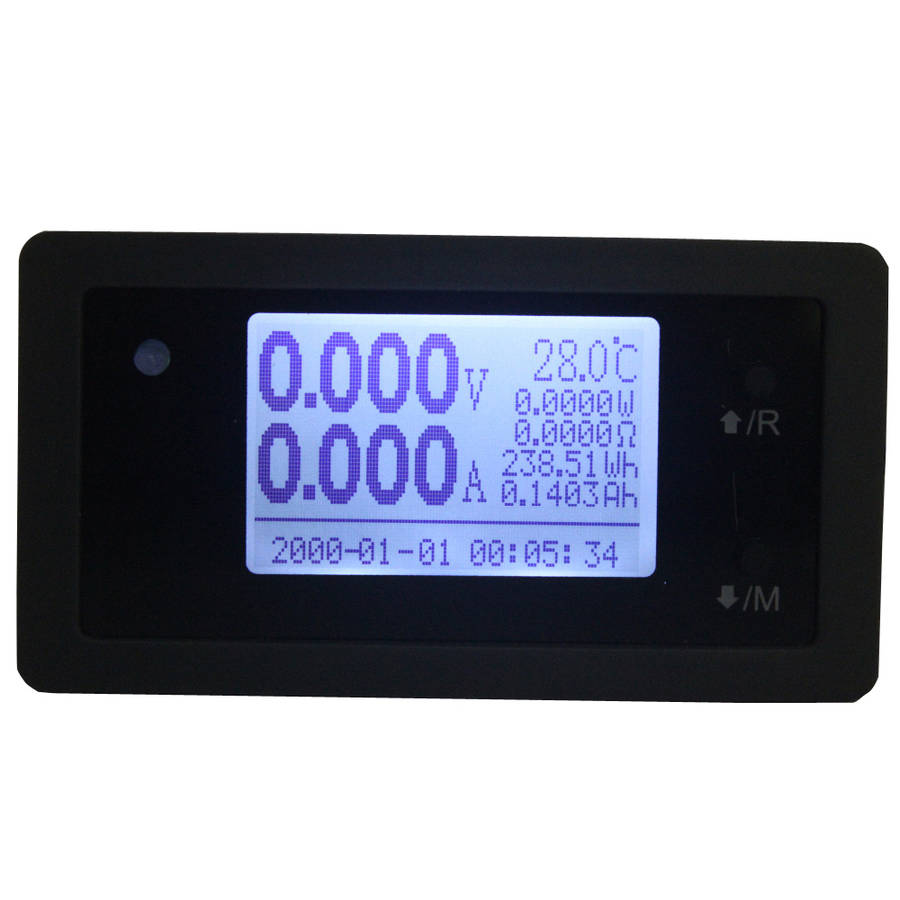

The main function: voltage, current, power, temperature and other data monitoring records;

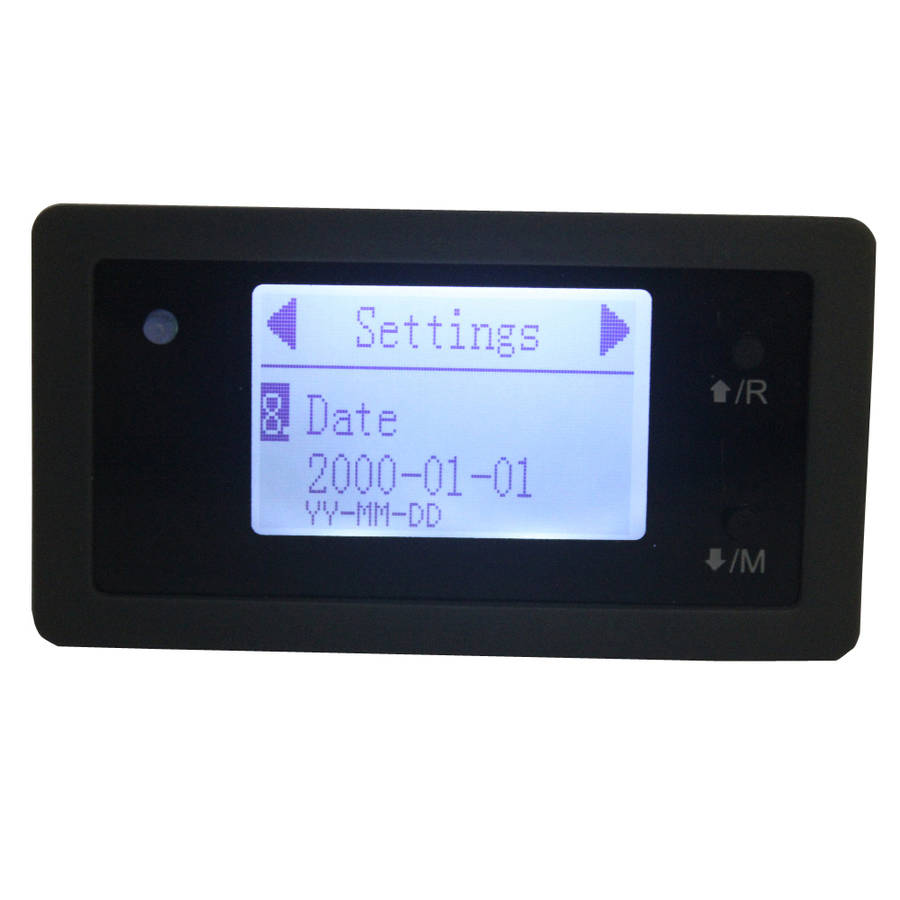

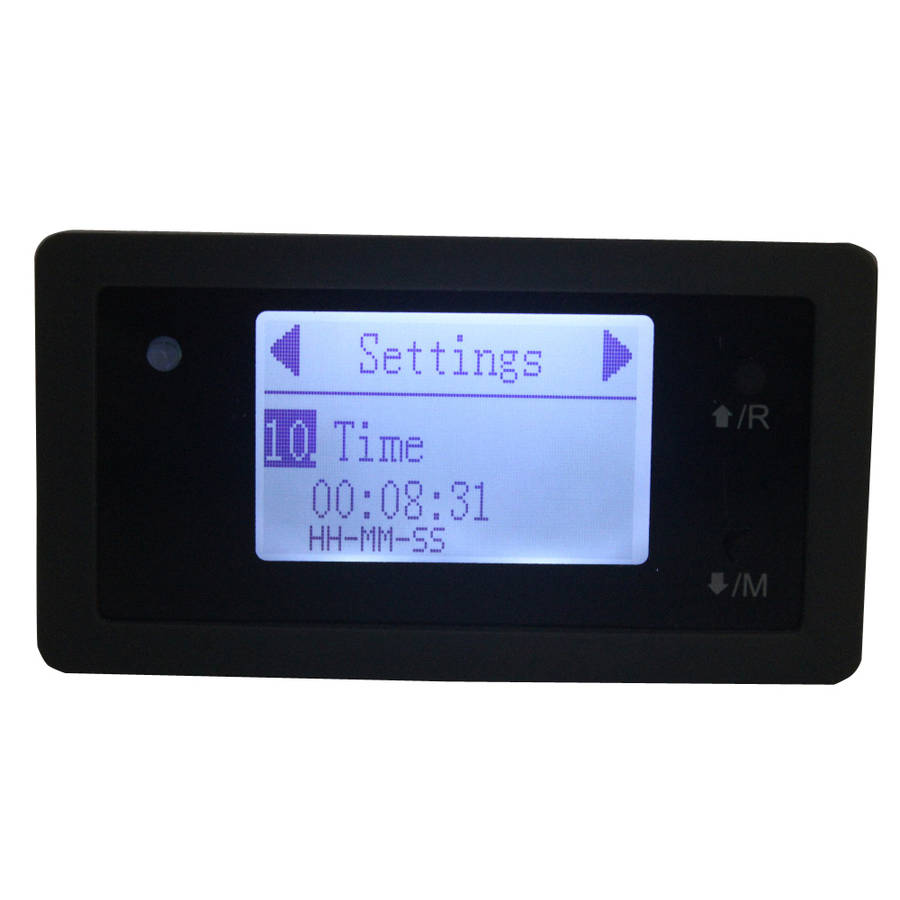

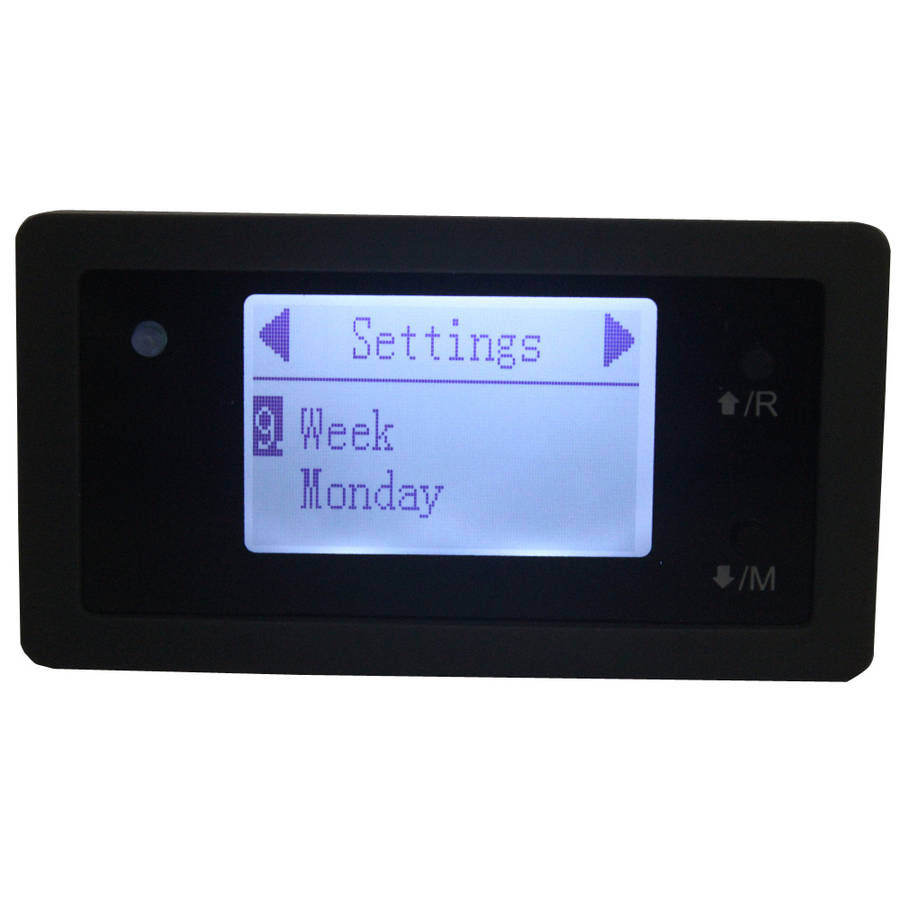

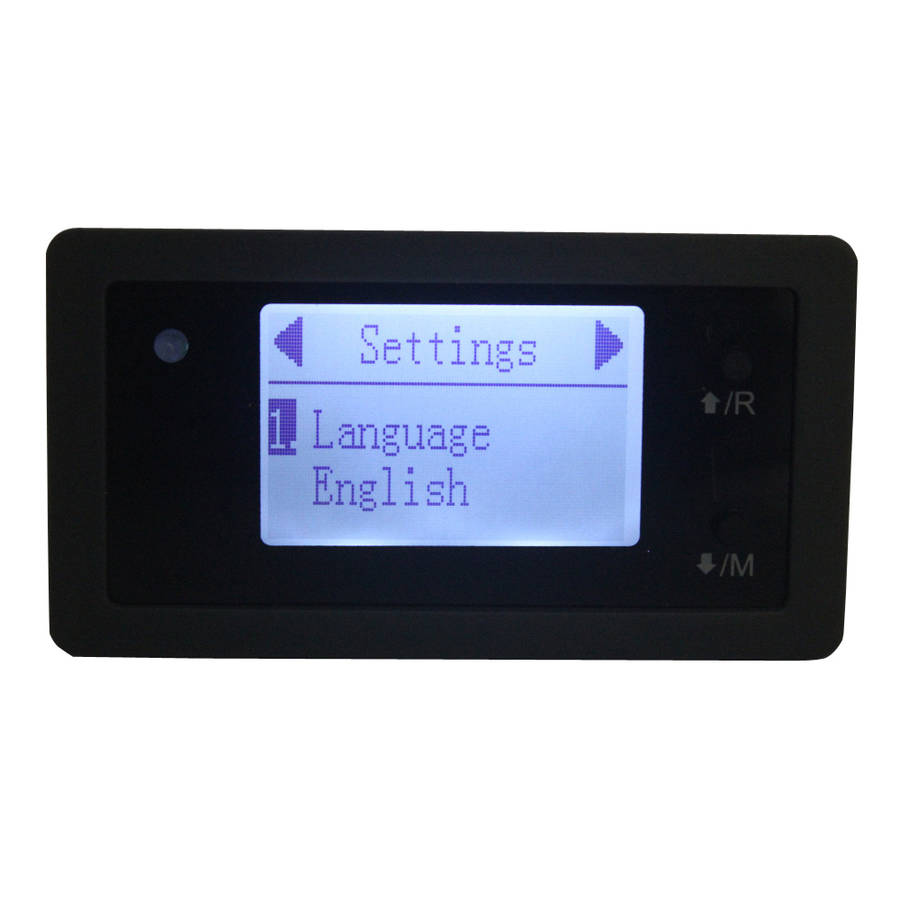

System functions: Serial output, clock calendar, Chinese and English menus, sound and light alarm;

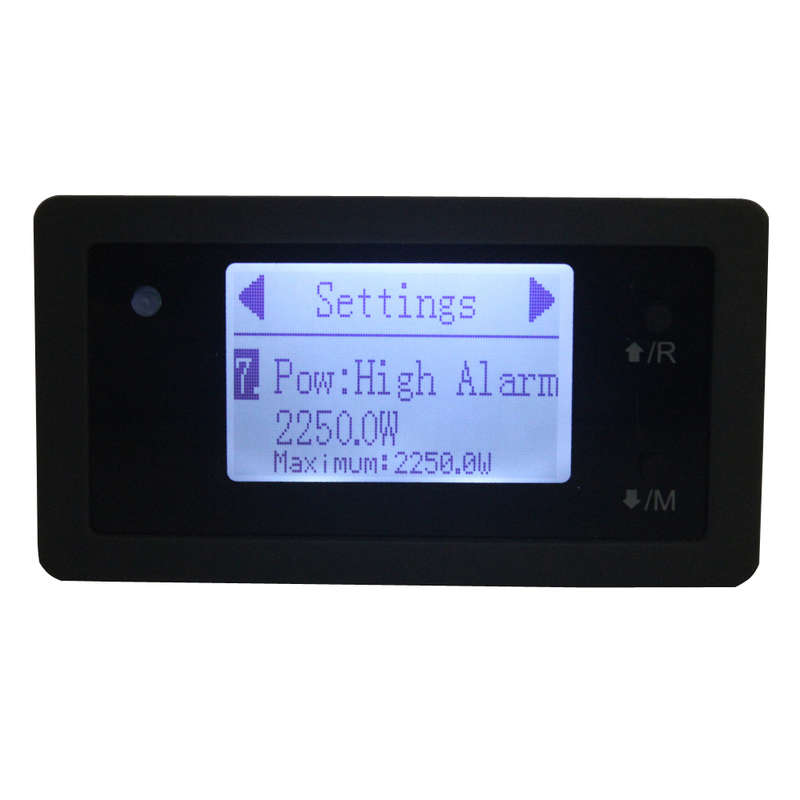

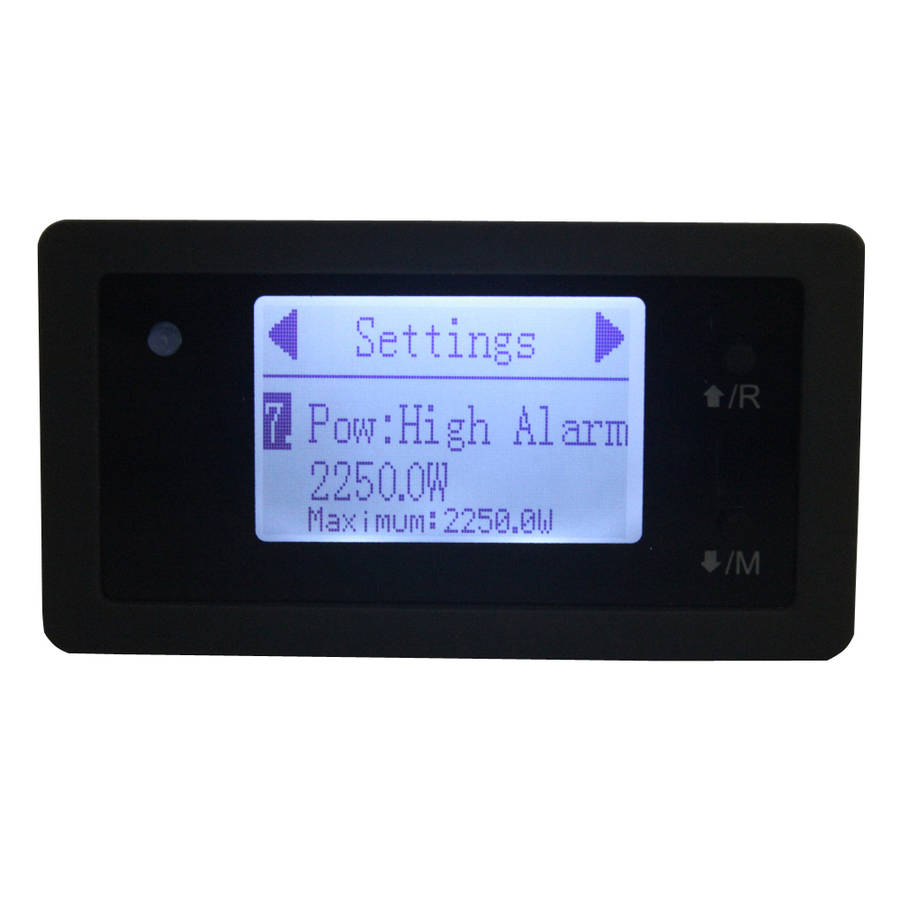

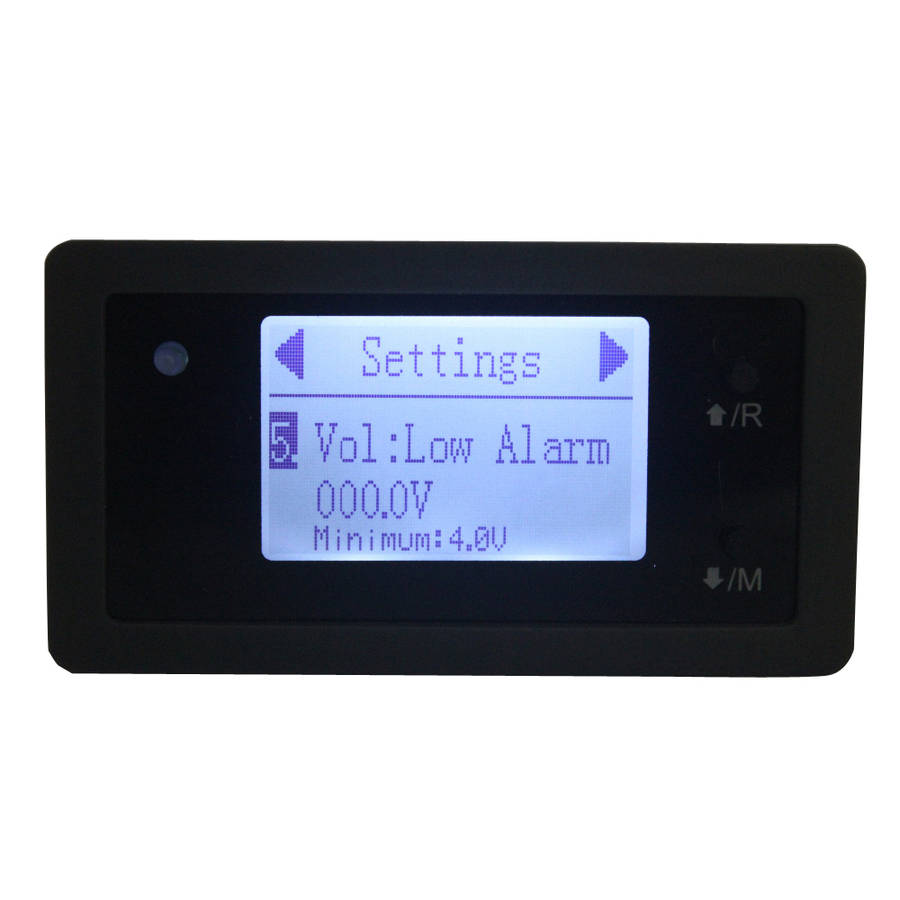

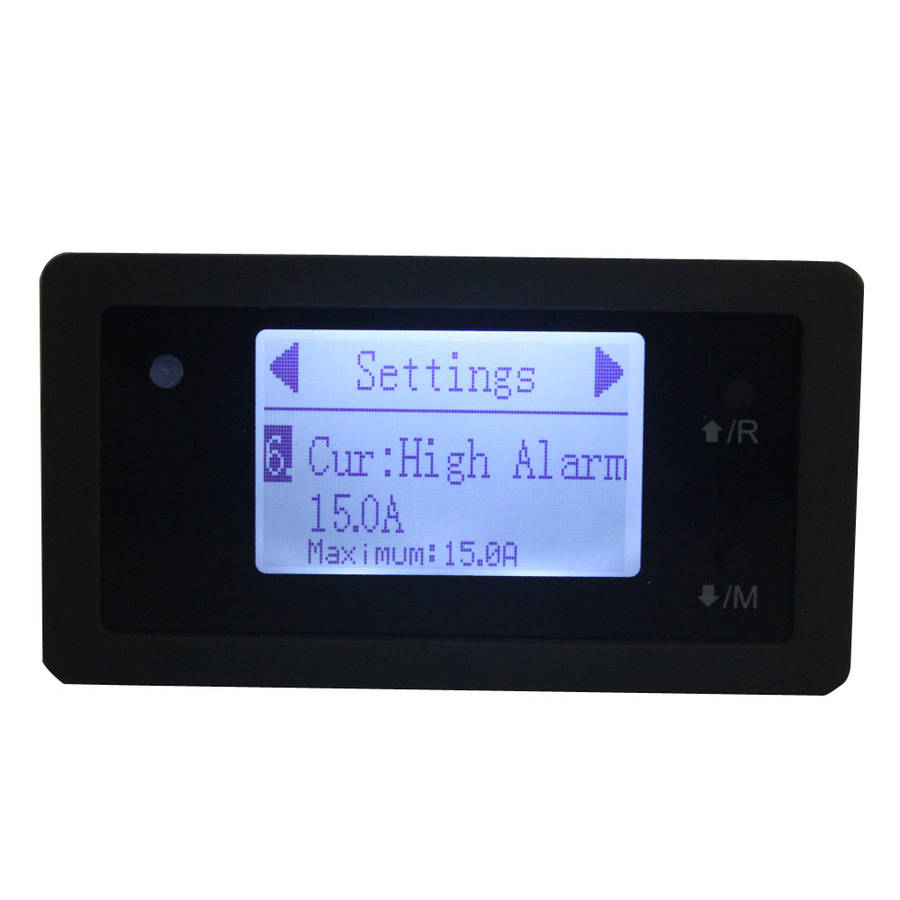

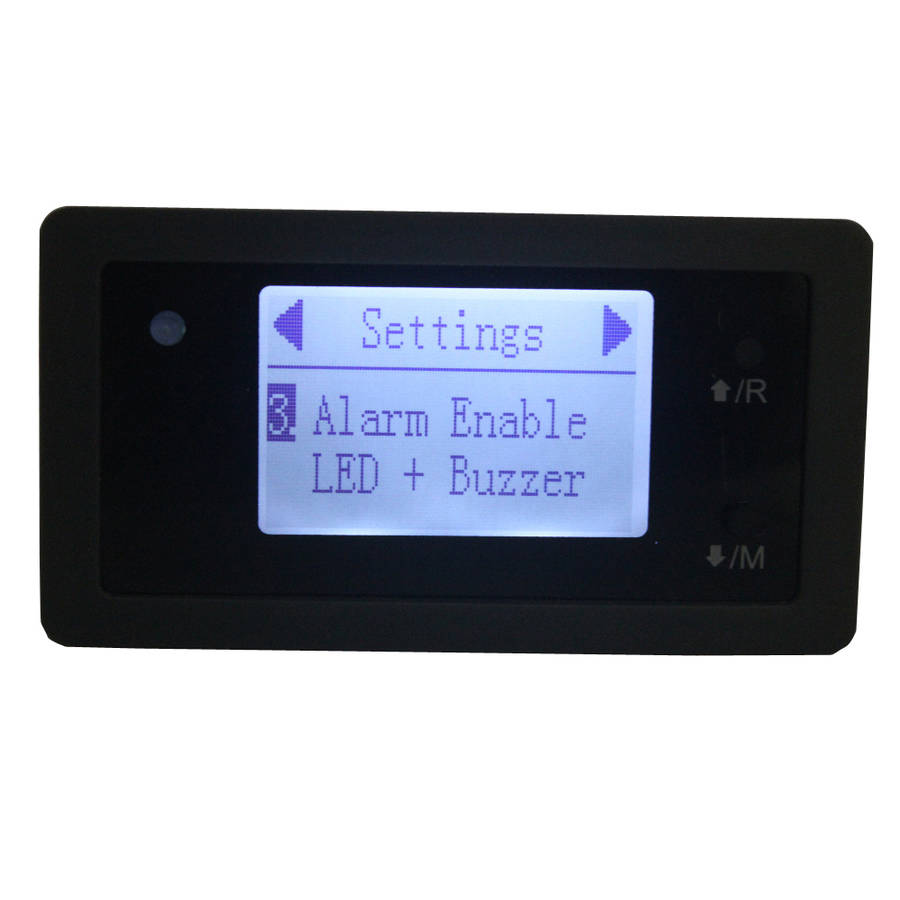

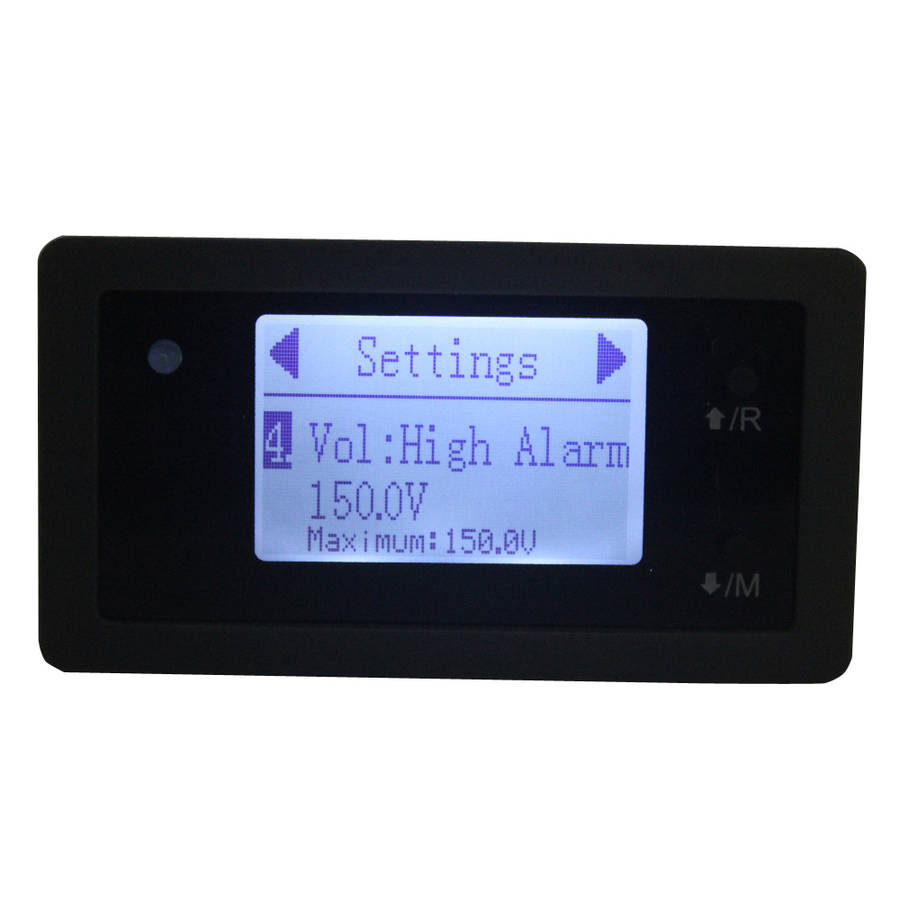

Pre-alarm settings: Sound and light alarms for safety thresholds such as over-voltage, over-current, under-voltage, and power;
Serial data communication for intelligent system integration of data acquisition
Long press the M key into manual set
Voltage range DC: 0-150V (less than 7V need external auxiliary power supply);
Current range DC: 0.01-15A;
Voltage and current accuracy: 0.1% ± 2d;
Power overload: up to 2000W
Temperature external 10K 3950NTC: -20-100 °C (real-time monitoring display);
Accuracy: 0.1% ± 2d
Watt hour cumulative range: 0-9999.9Wh;
Accumulative time range: 0-9999.9Ah;
Accumulated time range: 99 hours 59 minutes 59 seconds
Package included:
1 x Meter
1 x NTC Temperature Sensor
1 x 2P Cable
Detail Pictures:
